ABB 3GAA133340-HFK

MPN: 3GAA133340-HFK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA133340-HFK?

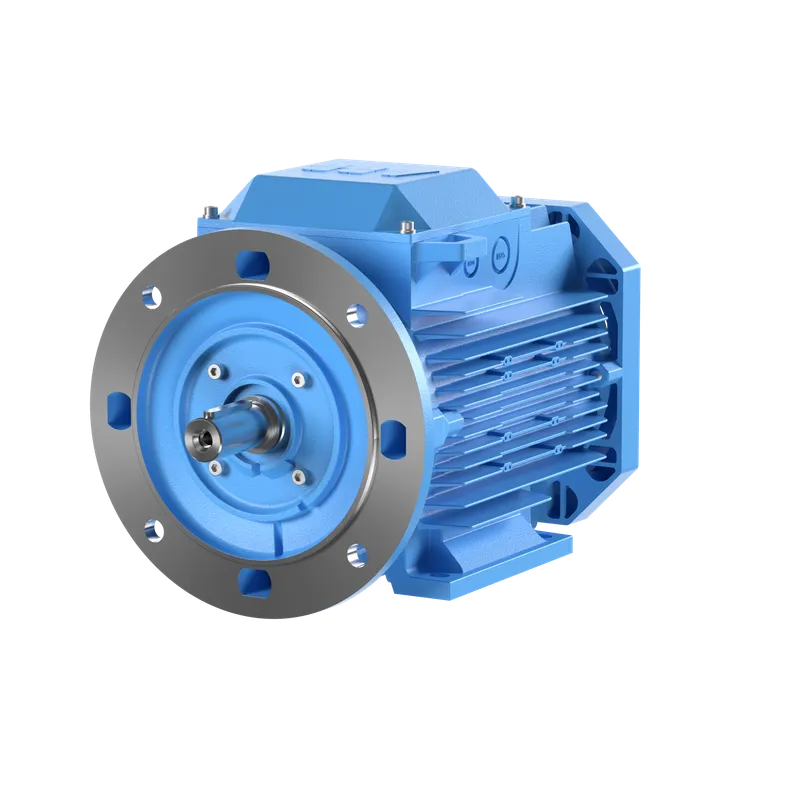

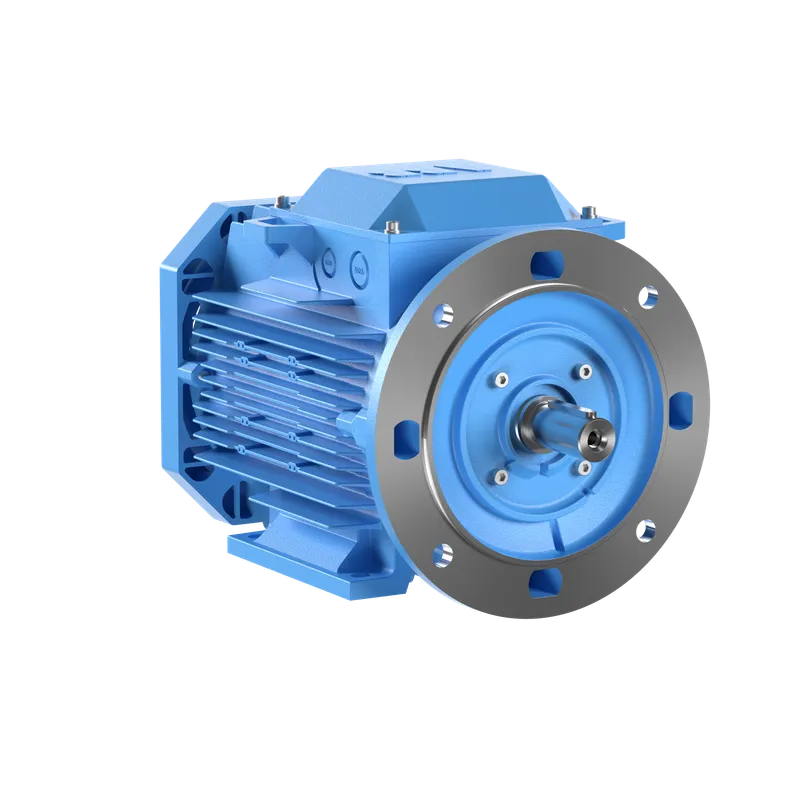

IE3 Premium Efficiency Aluminum Motors, 4 kW, 500 V (3GAA133340-HFK)

Specifications

Ordering

ABB Type Designation	M3AA 132MD 6
Invoice Description	M3AA 132MD 6
Product Name	3-Phase squirrel cage motor
Product Type	3AA3__M3AA_IE3_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	4kW, 6 Poles, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GAA133340-HFK)
Short Description	4kW, 6P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	4 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 88.5 %, Partial Load (75%) 89.3 %, Partial Load (50%) 89.1 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 89.5 %, Partial Load (75%) 89.9 %, Partial Load (50%) 88.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	F

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	487 mm mm
Product Net Height	298 mm mm
Product Net Width	262 mm mm
Product Net Weight	67 kg kg
Gross Weight	72 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC

26101100
