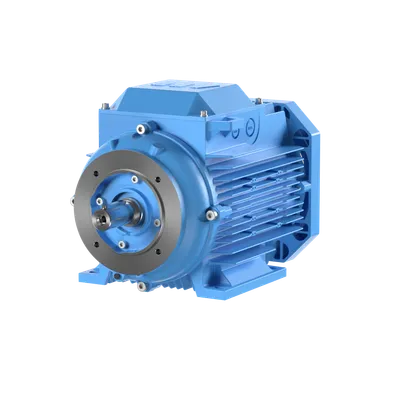

ABB 3GAA133330-ADE436

MPN: 3GAA133330-ADE436
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA133330-ADE436?

IE2 High Efficiency Aluminum Motors, 5.5 kW, 400 V (3GAA133330-ADE436)

Specifications

Ordering

ABB Type Designation	M3AA 132MC 6
Invoice Description	M3AA 132MC 6
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	China
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GAA133314-ADET1
Medium Description	5.5kW, 6P, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA133330-ADE436)
Short Description	5.5kW, 6P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	5.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 86.1 %, Partial Load (75%) 85.6 %, Partial Load (50%) 83.0 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 87.6 %, Partial Load (75%) 86.5 %, Partial Load (50%) 83.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	487 mm mm
Product Net Height	296 mm mm
Product Net Width	262 mm mm
Product Net Weight	59 kg kg
Gross Weight	64 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
