Home / ABB / Flameproof IEC Low voltage motors / ABB 3GAA133320-AGE

ABB

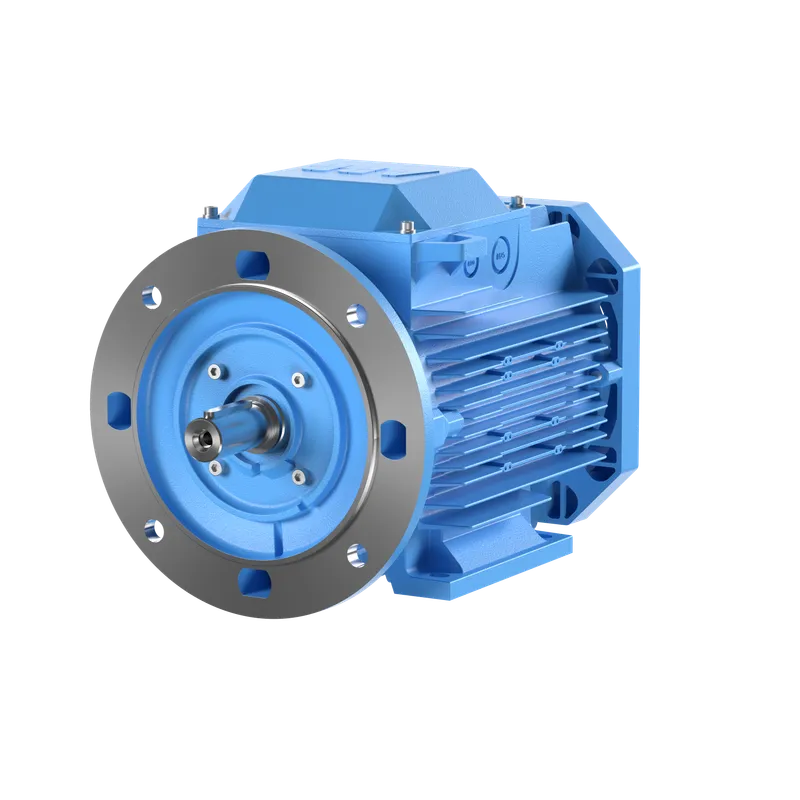

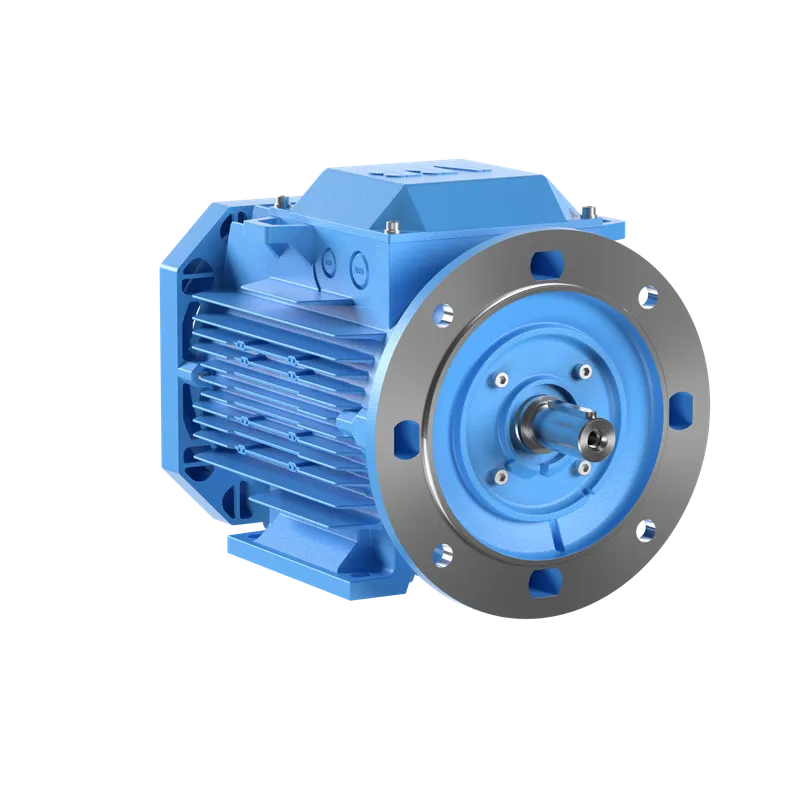

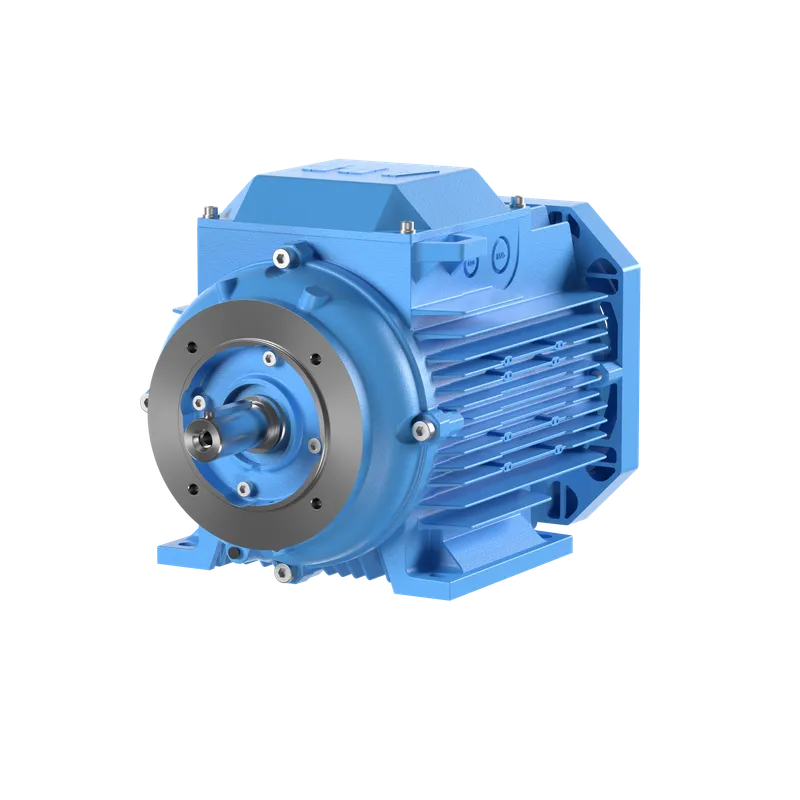

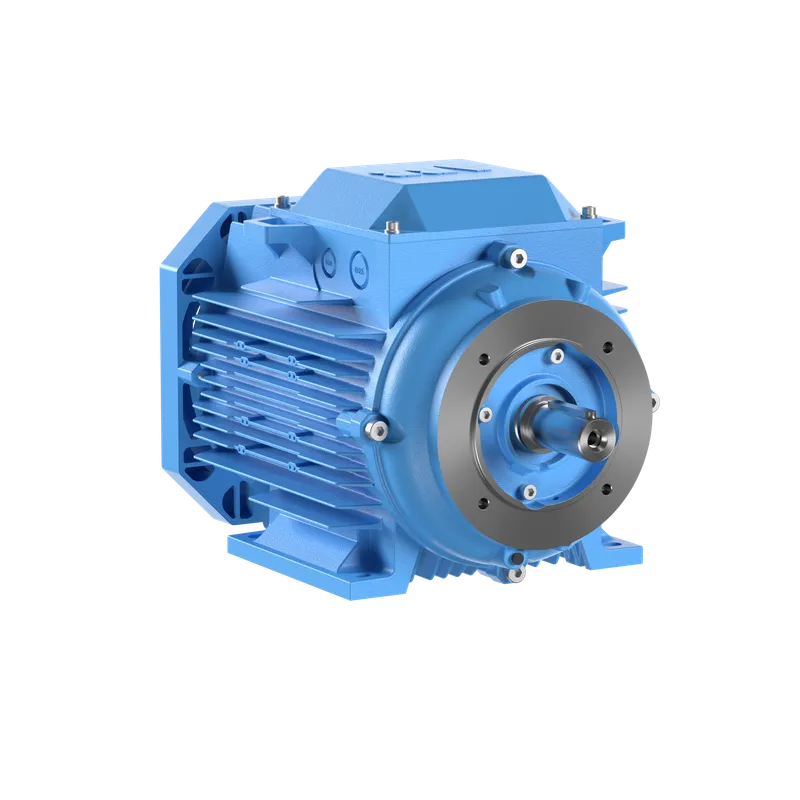

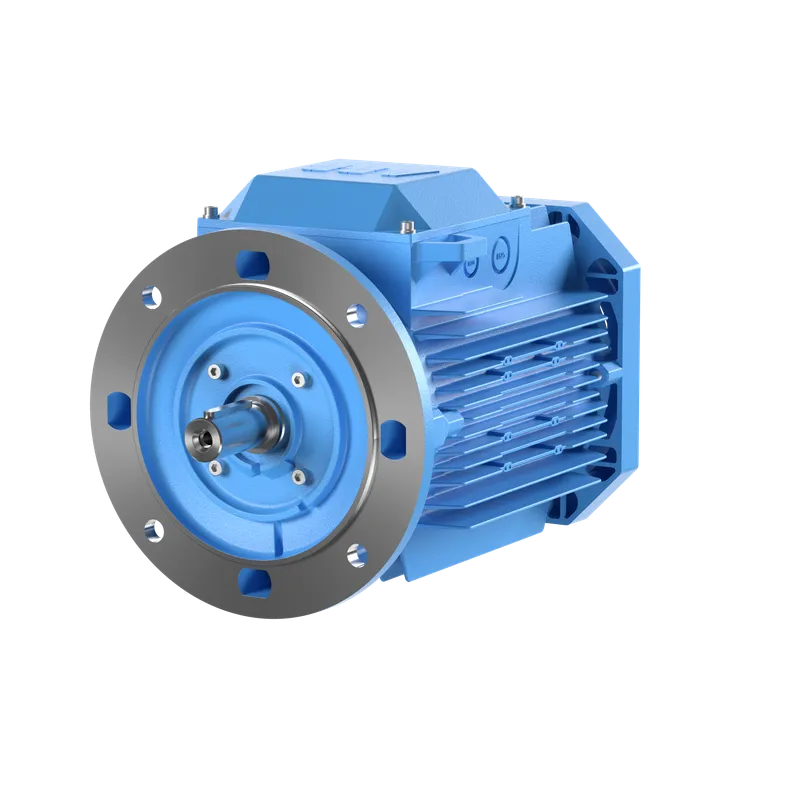

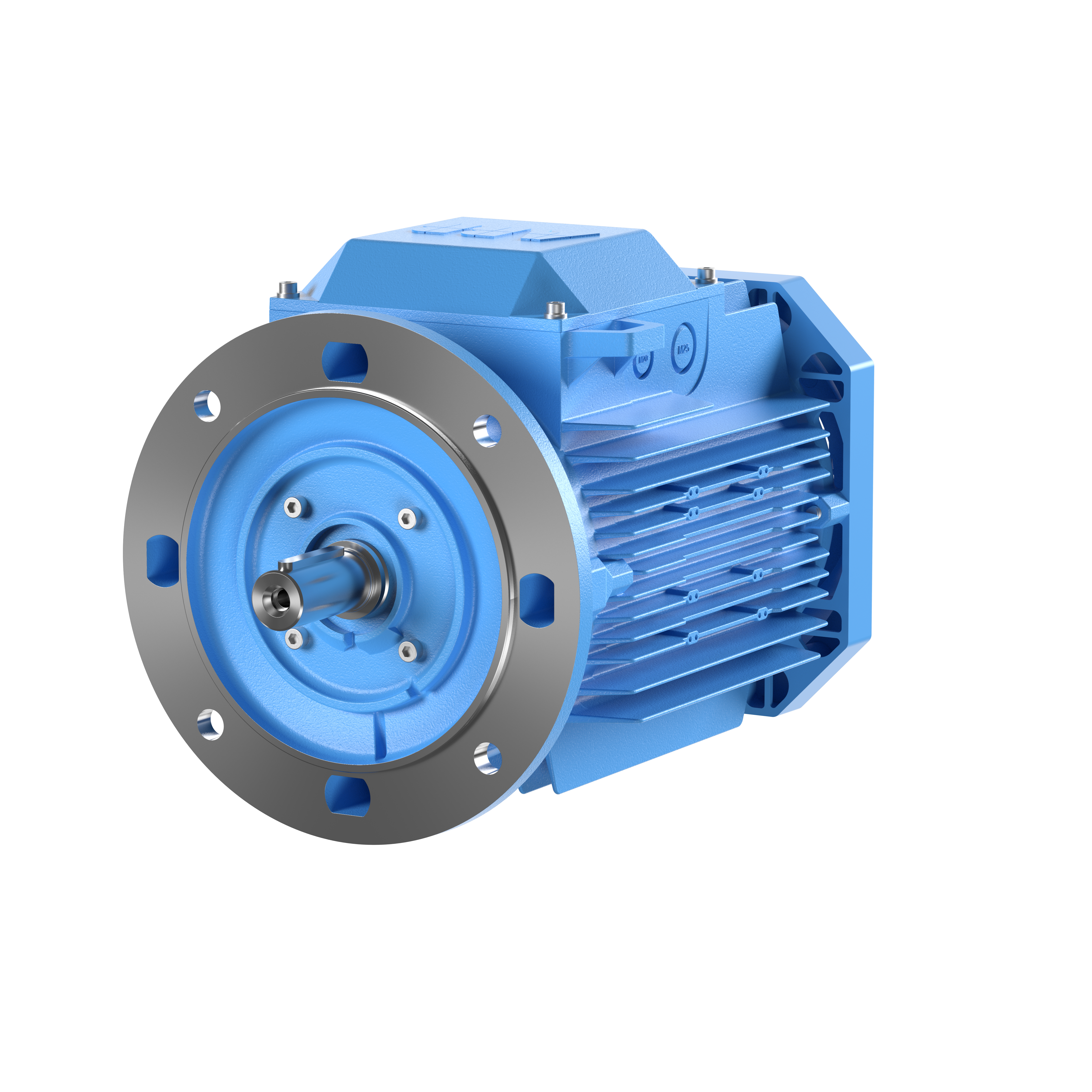

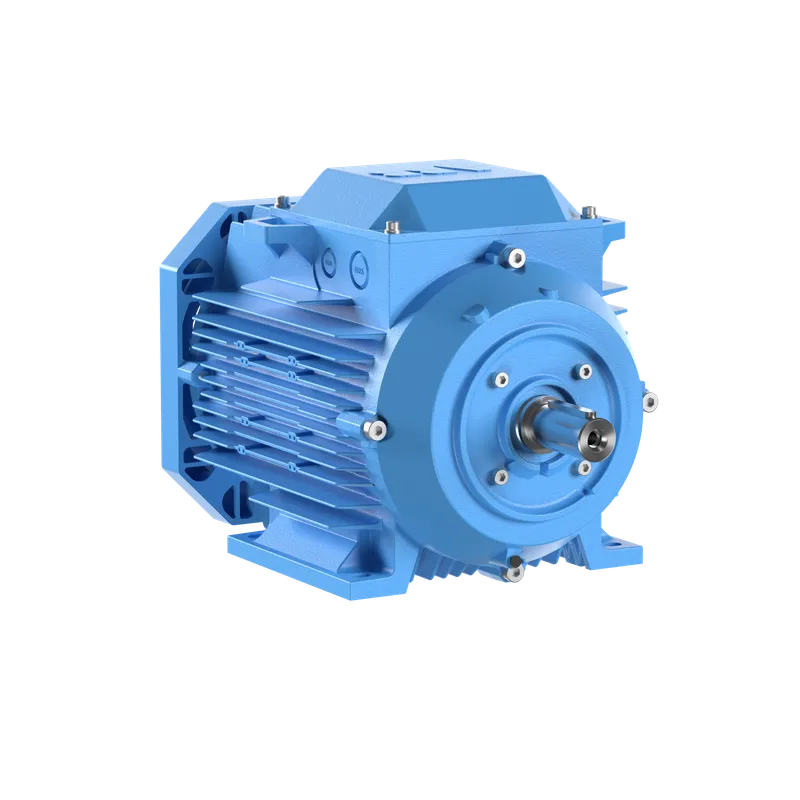

ABB 3GAA133320-AGE

MPN: 3GAA133320-AGE
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA133320-AGE?

(3GAA133320-AGE)

Specifications

Ordering

ABB Type Designation	M3AA 132MB 6
Invoice Description	M3AA 132MB 6
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GAA133310-AGE, 3GAA133443-AGE

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 85.9 %, Partial Load (75%) 84.6 %, Partial Load (50%) 81.2 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 87.3 %, Partial Load (75%) 86.1 %, Partial Load (50%) 82.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	G G

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	54 kg kg
Gross Weight	59 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC

26101100

3GAA133320-AGE: frequently asked questions

When can 3GAA133320-AGE be shipped?

3GAA133320-AGE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA133320-AGE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA133320-AGE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA133320-AGE, subject to availability and destination.
