ABB

ABB 3GAA132280-BSEBK02

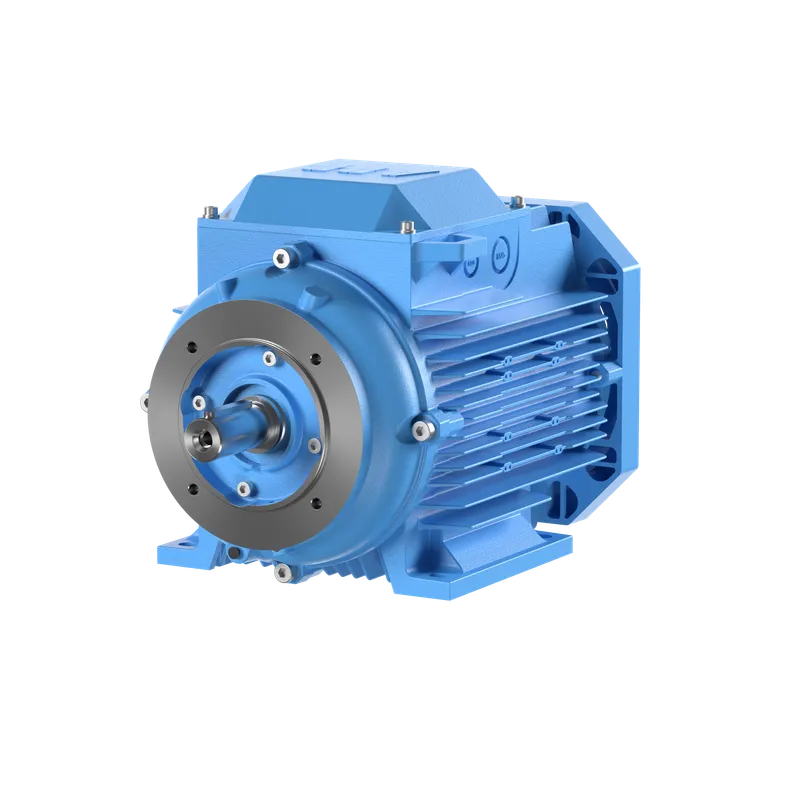

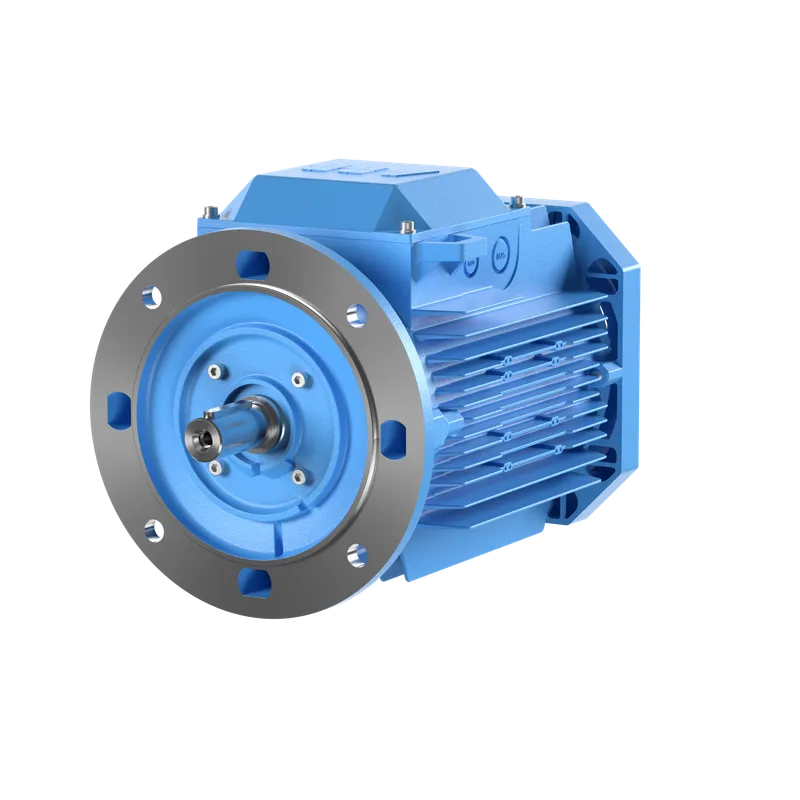

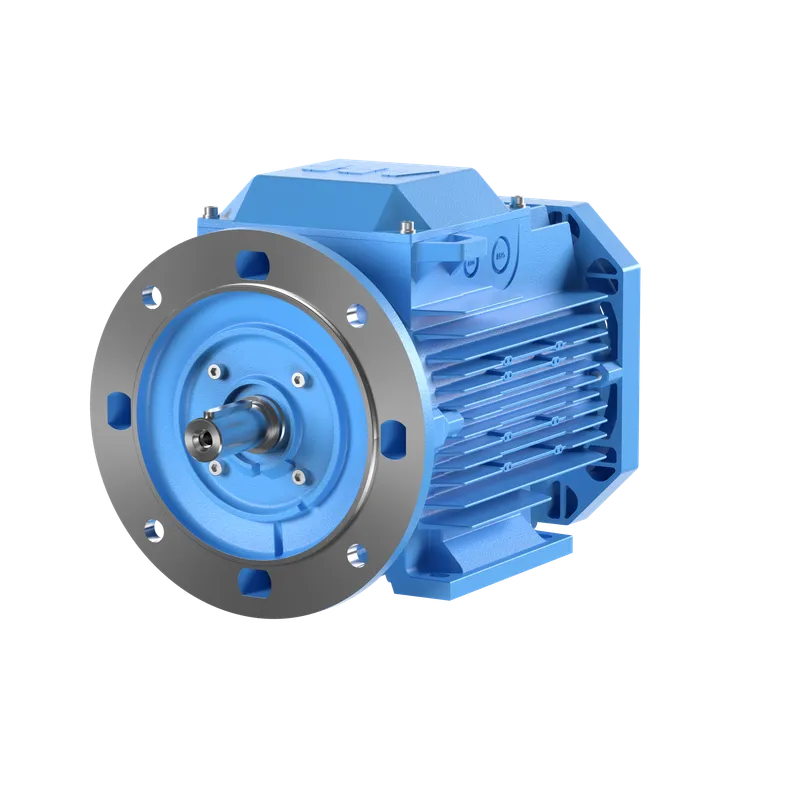

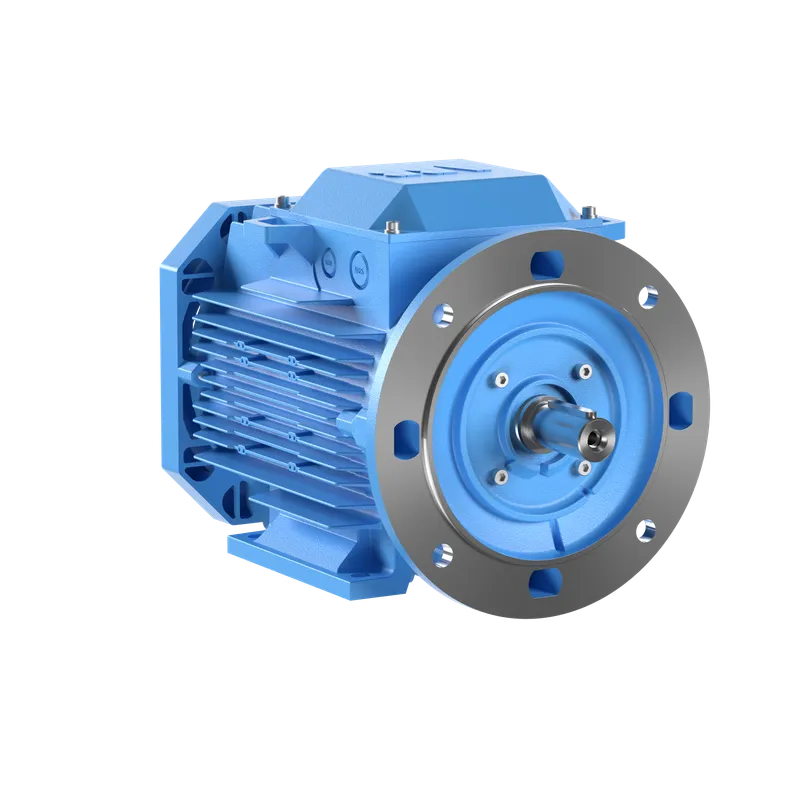

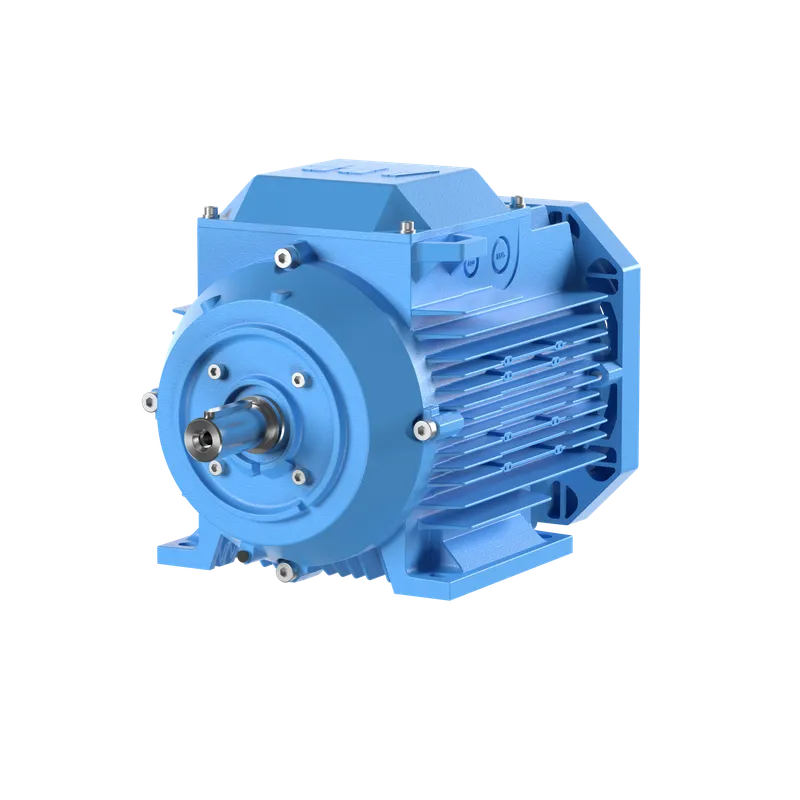

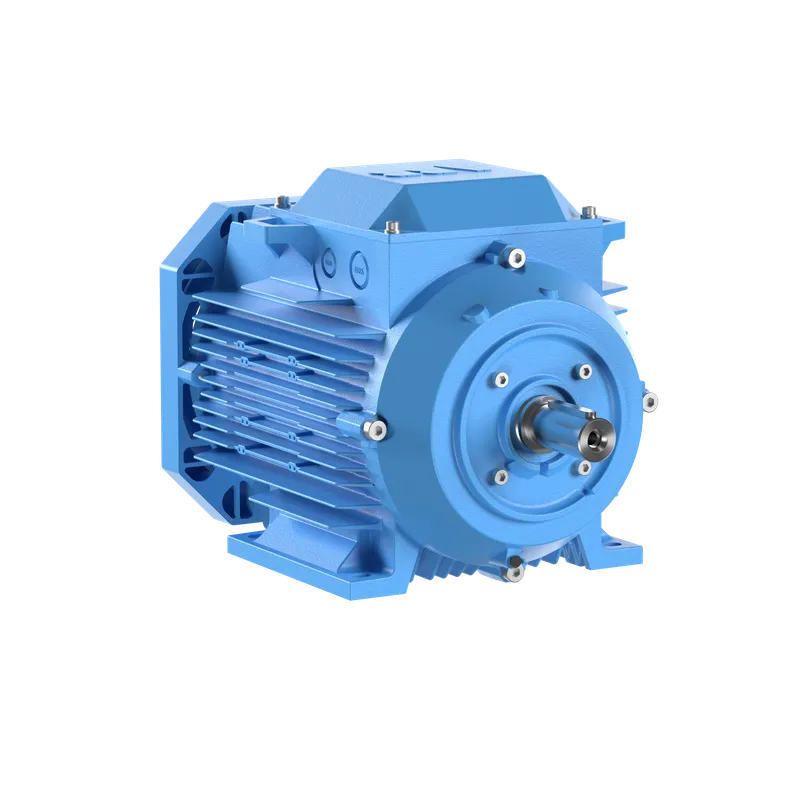

M3AA 132SMH 4

MPN: 3GAA132280-BSEBK02
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA132280-BSEBK02?

(3GAA132280-BSEBK02)

Specifications

Ordering

ABB Type Designation	M3AA 132SMH 4
Invoice Description	M3AA 132SMH 4
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015230

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 85.3 %, Partial Load (75%) 88.1 %, Partial Load (50%) 89.0 %
IE Class Data (60 Hz)	IE Class NA, Full Load (100%) 88.9 %, Partial Load (75%) 89.7 %, Partial Load (50%) 89.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S3
Voltage Code	S

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IM3651
Terminator Box Location	Top

Dimensions

Product Net Weight	82 kg kg
Gross Weight	87 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
