Home / ABB / ABB 3GAA118339-ADB122

ABB

ABB 3GAA118339-ADB122

MPN: 3GAA118339-ADB122

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA118339-ADB122?

(3GAA118339-ADB122)

Specifications

Ordering

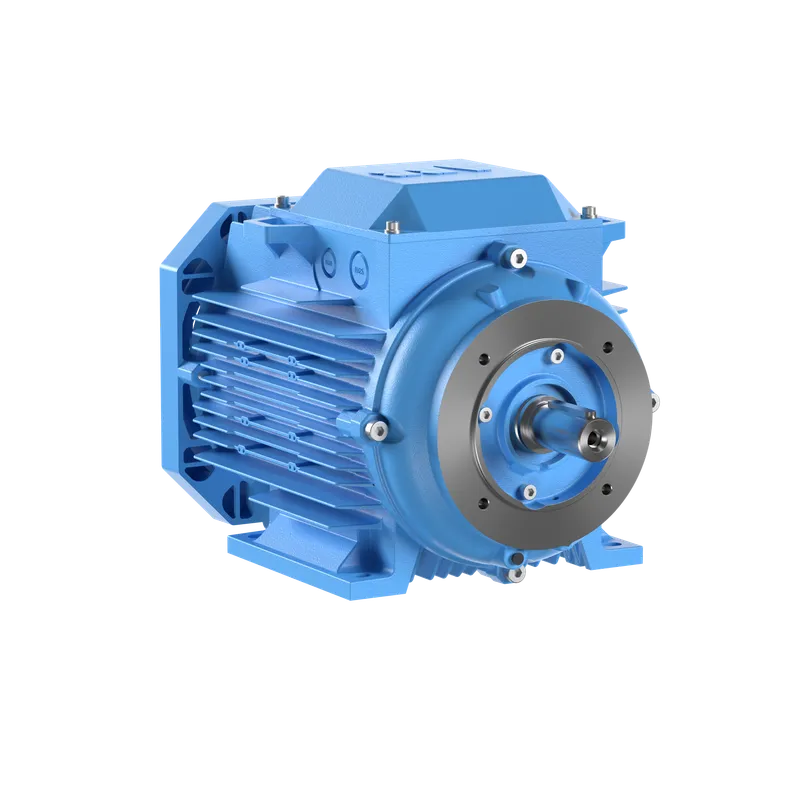

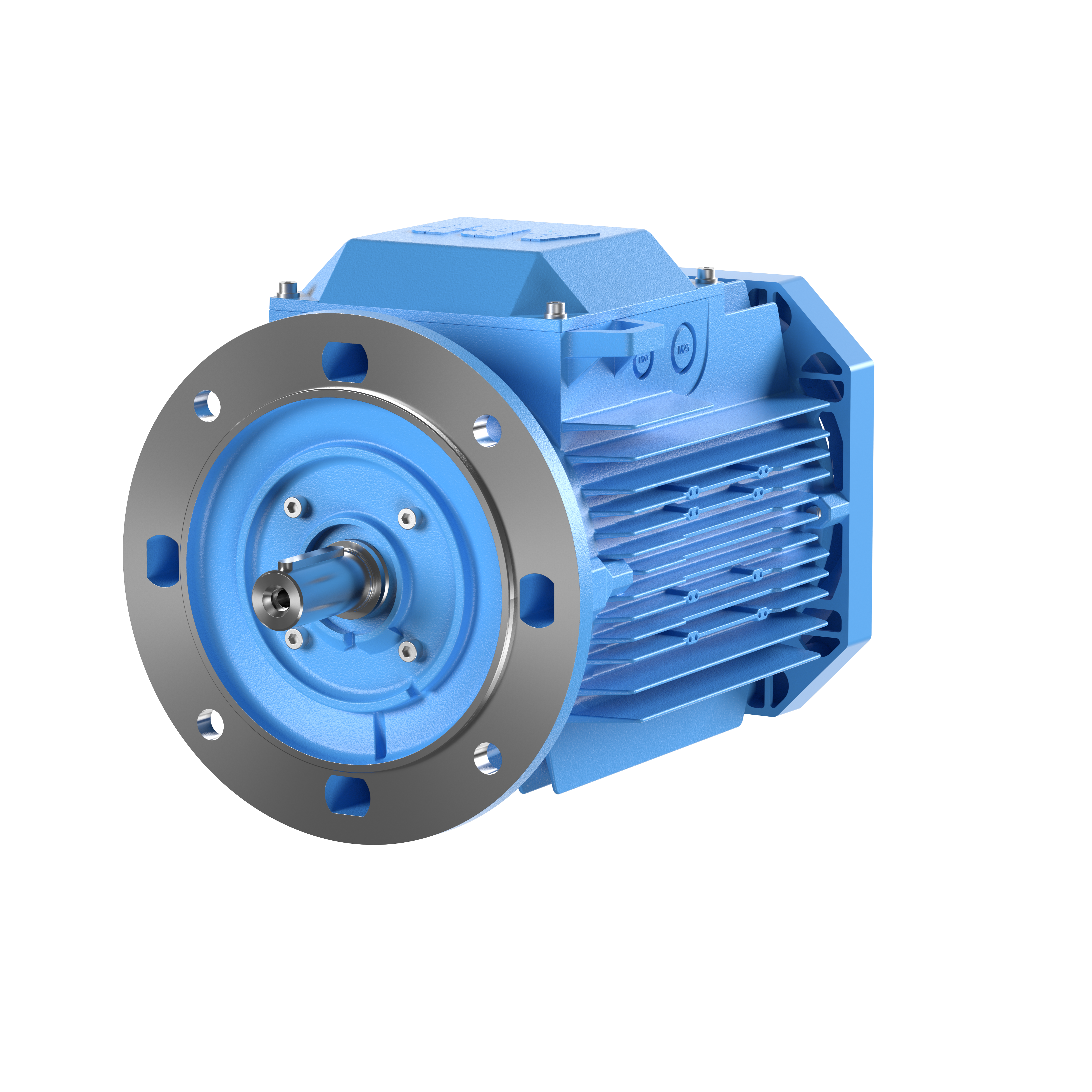

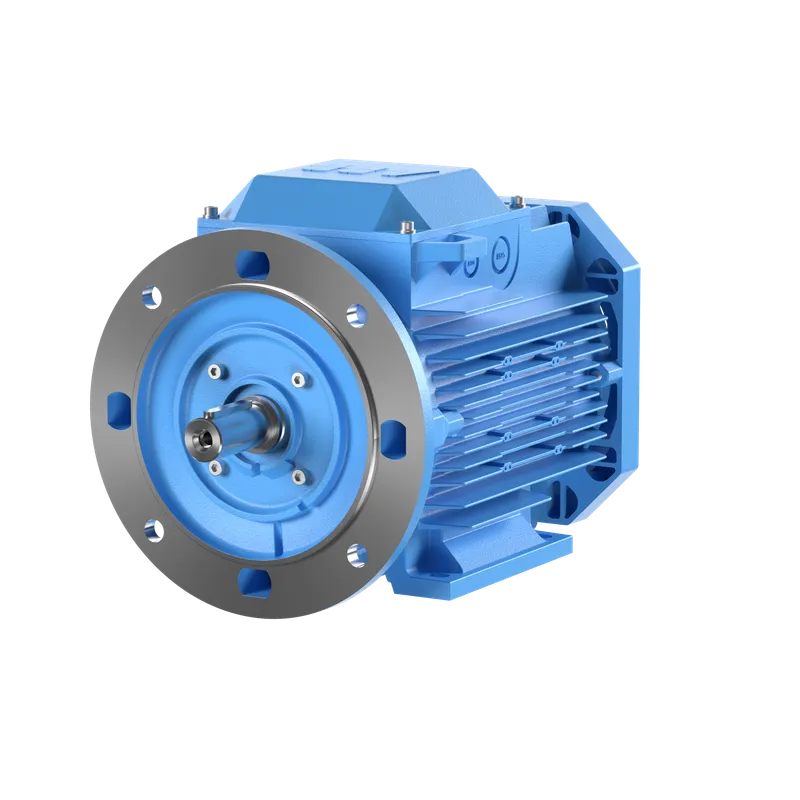

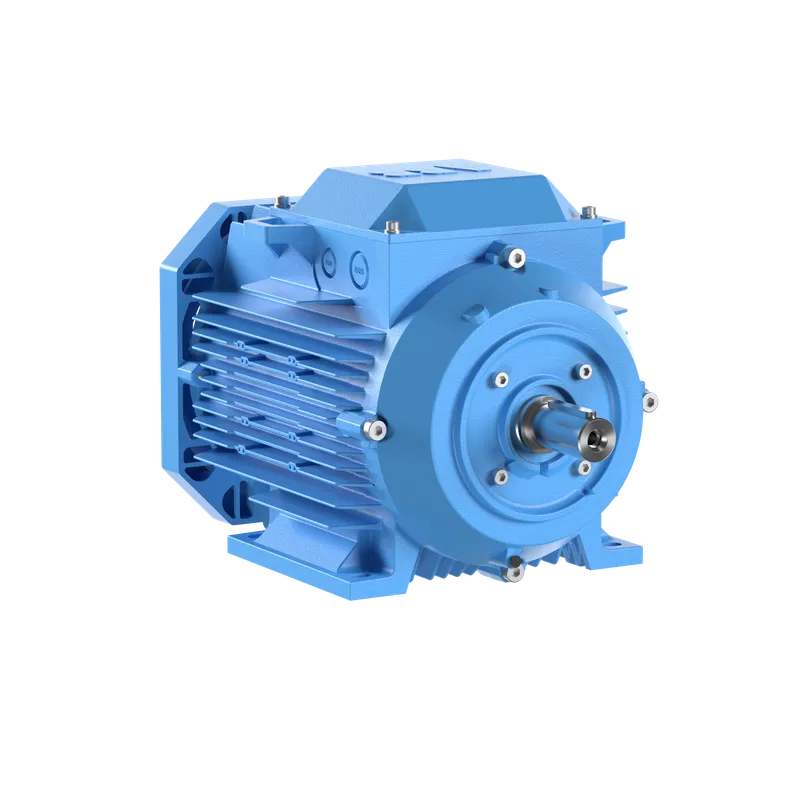

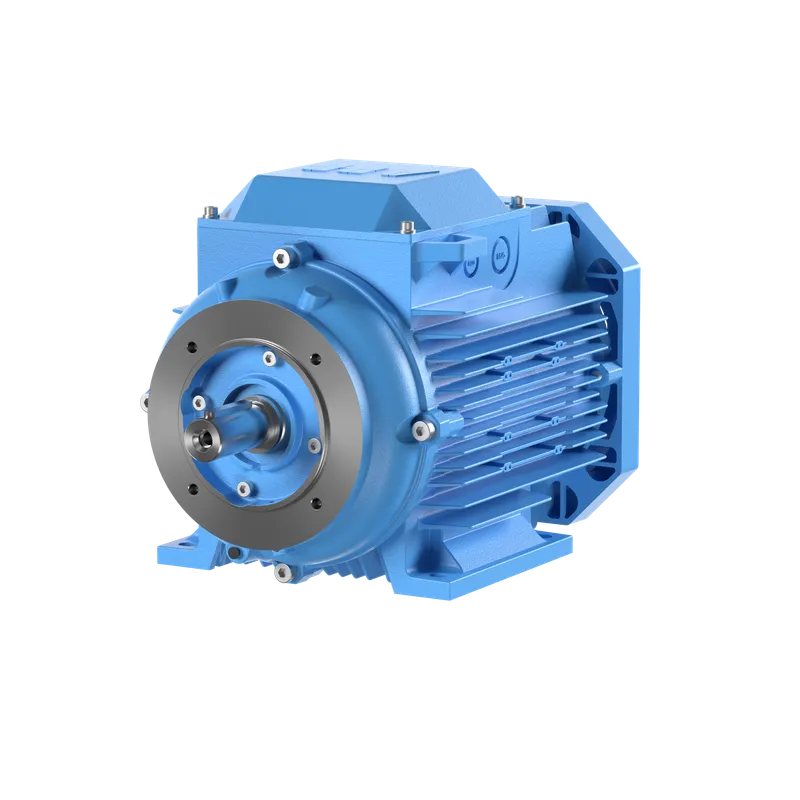

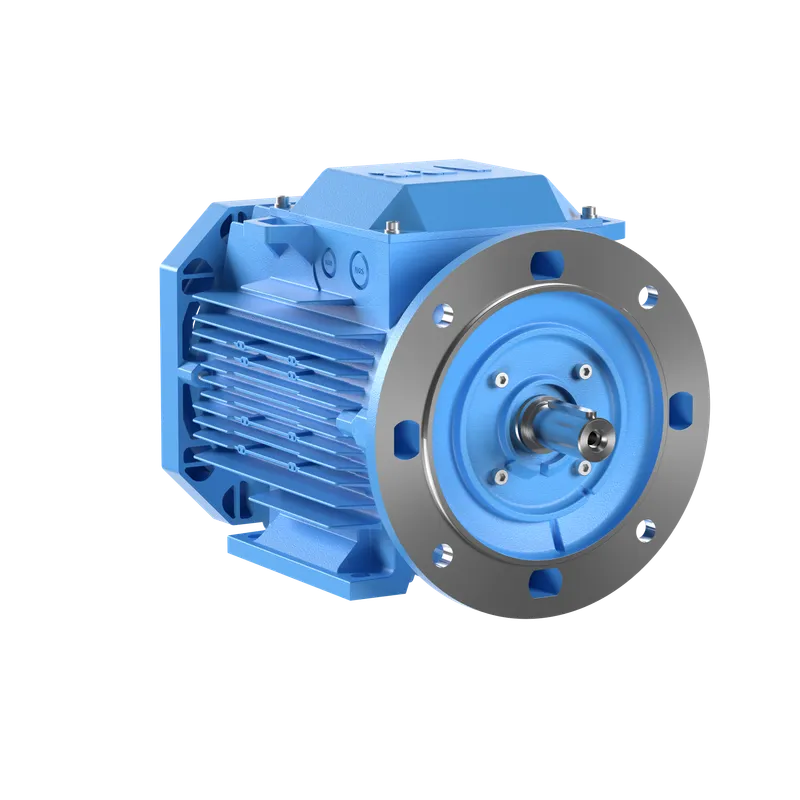

ABB Type Designation	M3AA 112MC 4-8
Invoice Description	M3AA 112MC 4-8
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Poland
Customs Tariff Number	85015220

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	Yes
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	112
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	29 kg kg
Gross Weight	34 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GAA118339-ADB122: frequently asked questions

When can 3GAA118339-ADB122 be shipped?

3GAA118339-ADB122 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA118339-ADB122 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA118339-ADB122 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA118339-ADB122, subject to availability and destination.
