ABB 3GAA114300-CDE

MPN: 3GAA114300-CDE
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA114300-CDE?

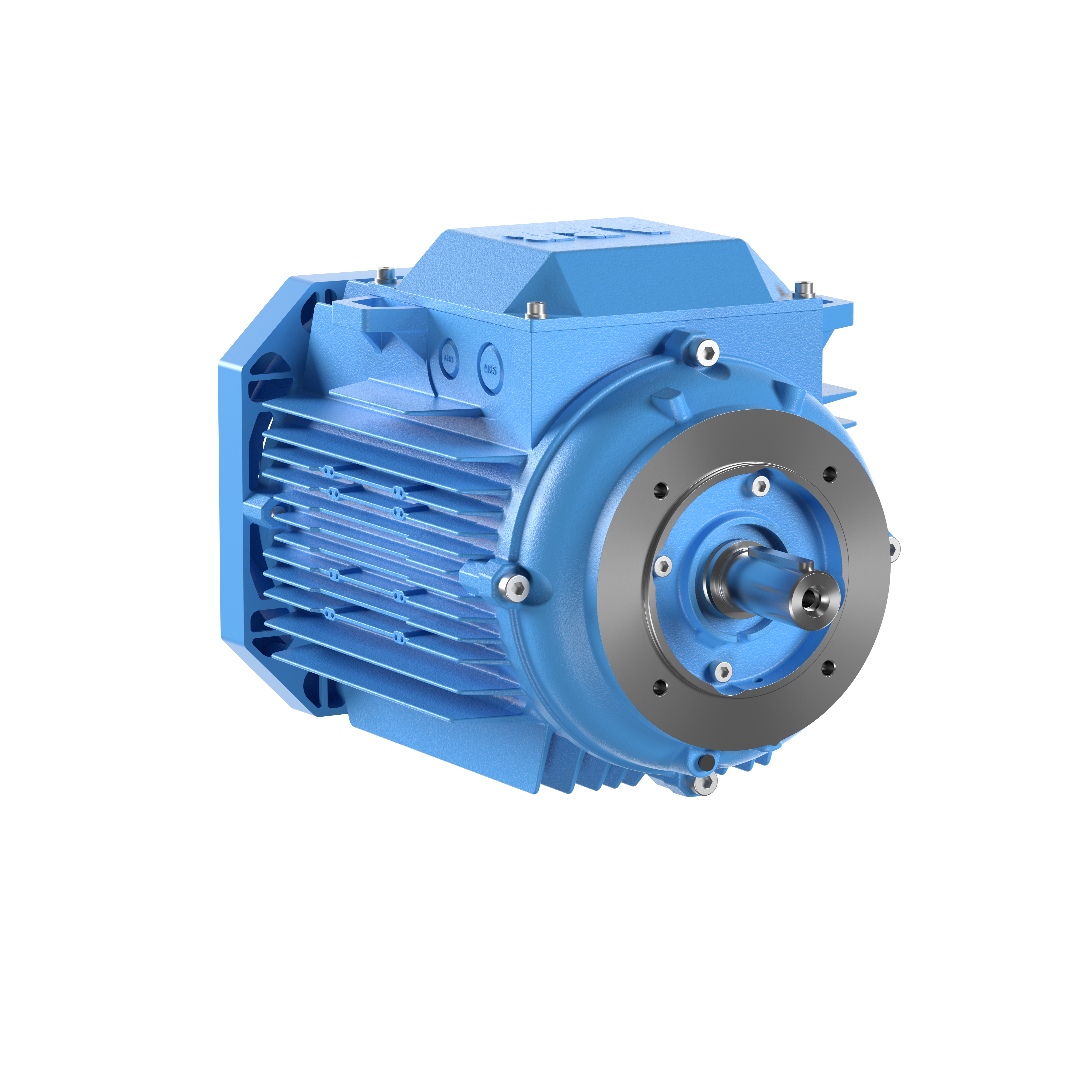

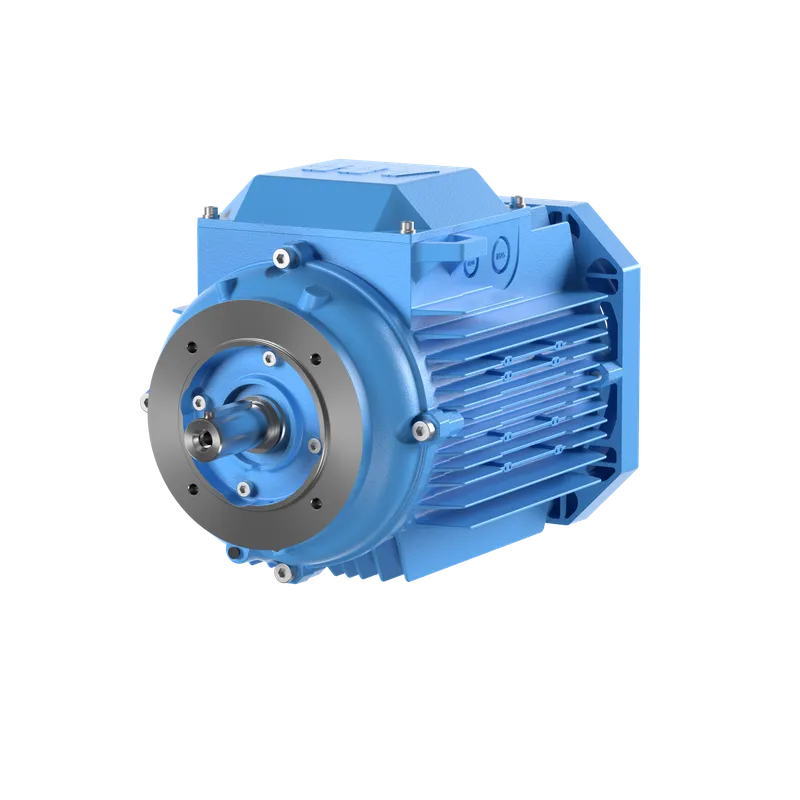

IE2 High Efficiency Aluminum Motors, 1.5 kW, 400 V (3GAA114300-CDE)

Specifications

Ordering

ABB Type Designation	M3AA 112M 8
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GAA114061-CDA
Medium Description	1.5kW, 8 Poles, Frame Size 112, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GAA114300-CDE)
Short Description	1.5kW, 8P, Frame Size 112, 3PH, 400V, 50Hz, IP55, IMB14/IM3601

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	1.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 74.4 %, Partial Load (75%) 74.1 %, Partial Load (50%) 70.5 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 78.6 %, Partial Load (75%) 77.5 %, Partial Load (50%) 73.2 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	112
Bearing	6306-2Z/C3
Bearing NDE	6205-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	393 mm mm
Product Net Height	249 mm mm
Product Net Width	230 mm mm
Product Net Weight	28 kg kg
Gross Weight	33 kg kg

Environmental

SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC

26101100
