What is the ABB 3GAA102003-ADE?

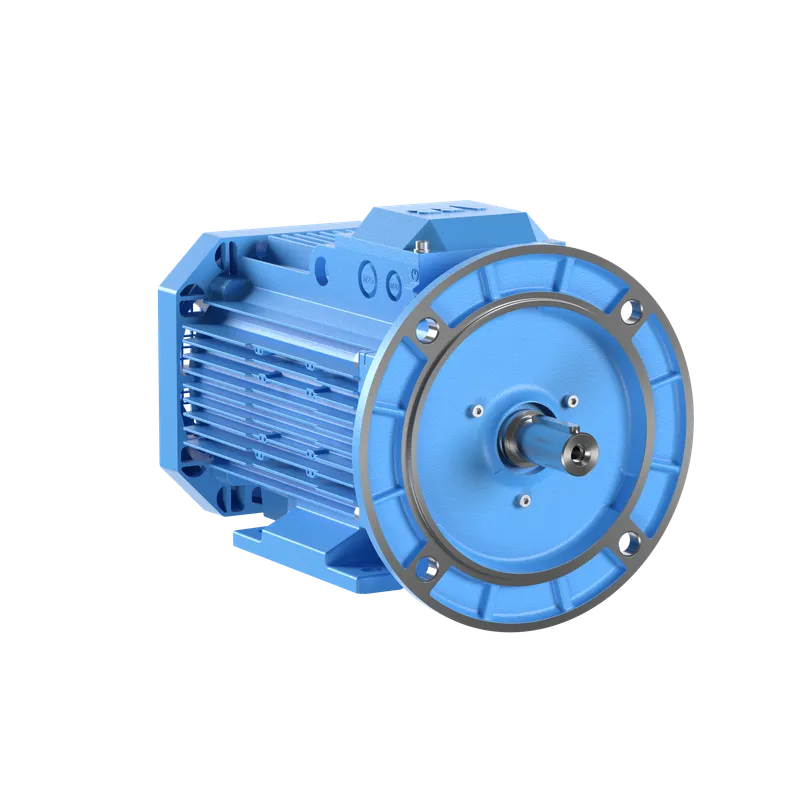

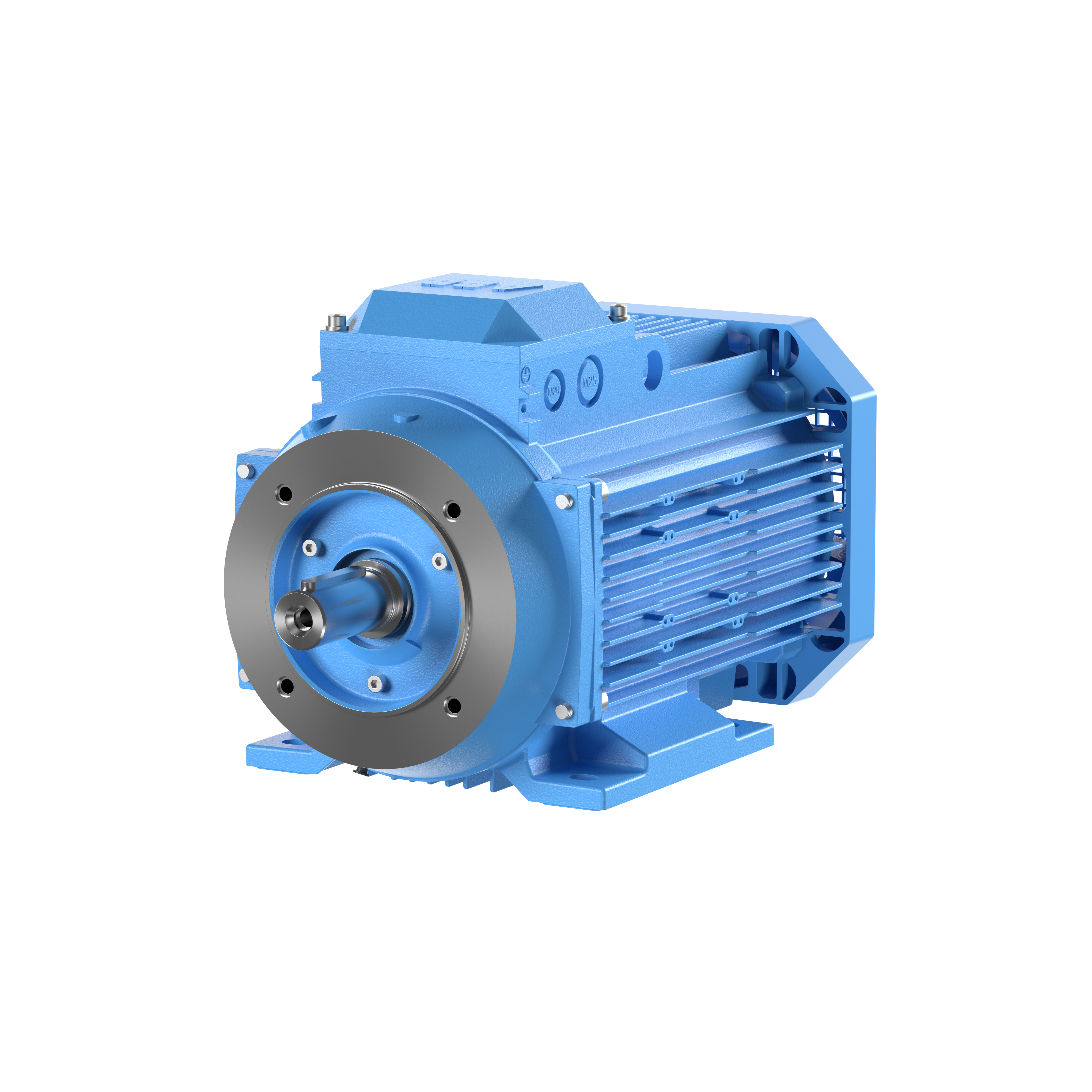

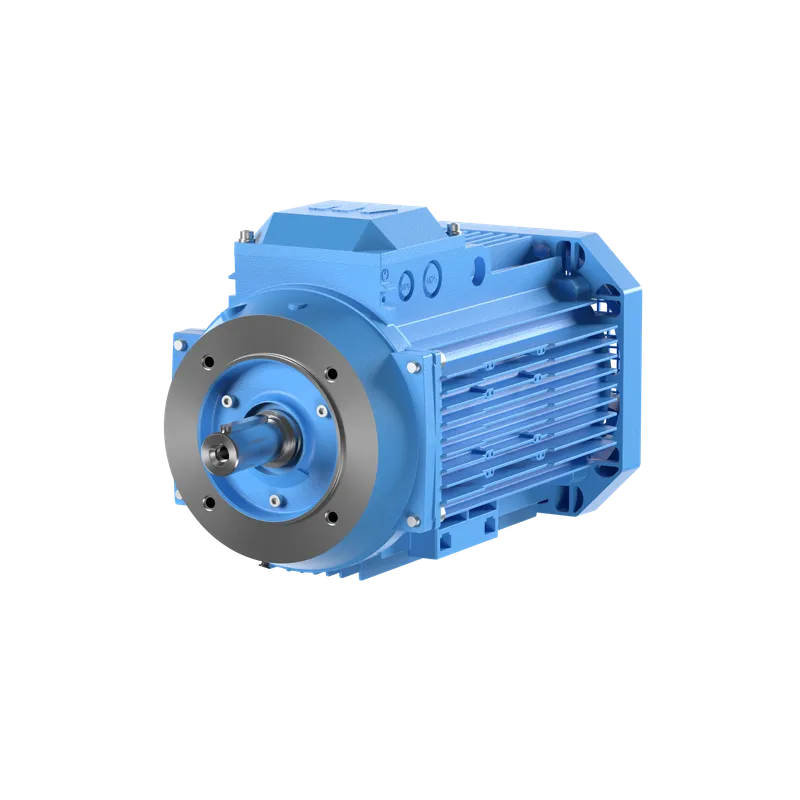

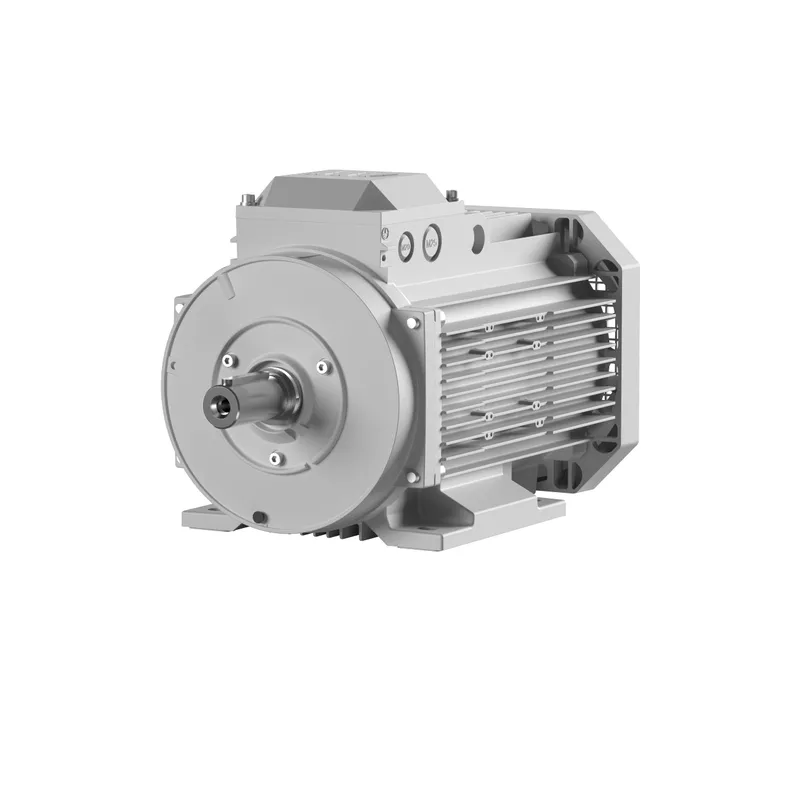

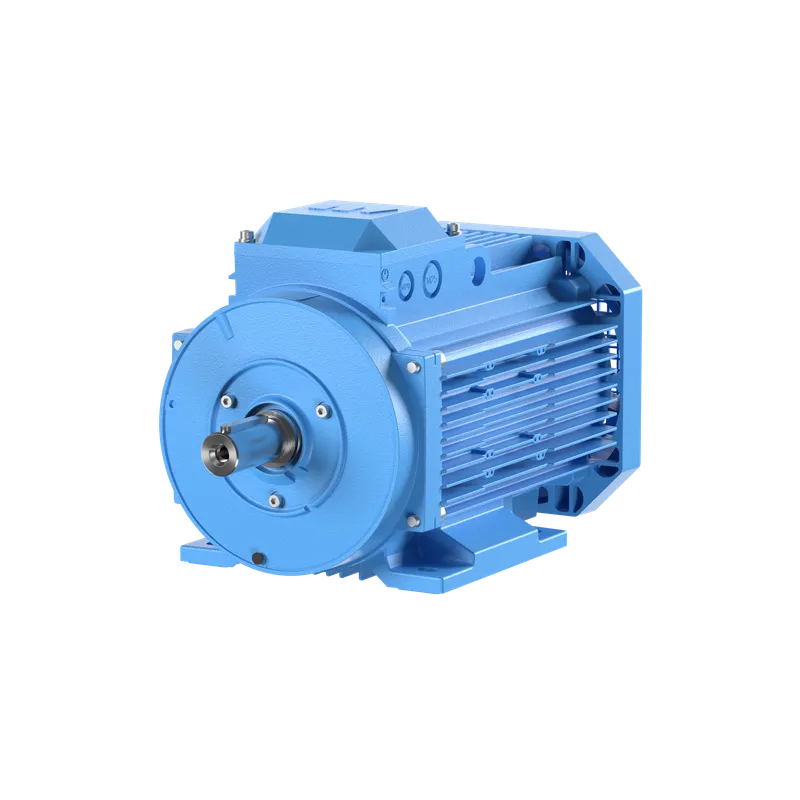

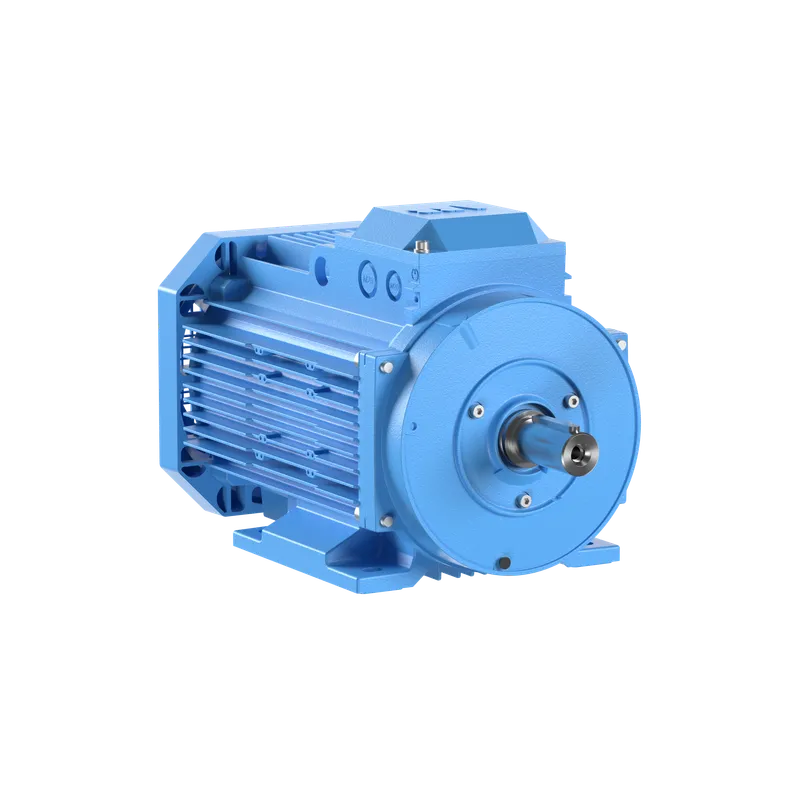

M3AA 100LC 4 HO

Specifications

Ordering

ABB Type Designation	M3AA 100LC 4 HO
Invoice Description	M3AA 100LC 4 HO
Product Name	3-Phase squirrel cage motor
Product Type	3AA1__M3AA_IE1_AA
Country or Territory of Origin	Spain, Finland, Sweden, Romania, Poland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GAA102003-ADA

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 84.0 %, Partial Load (75%) 85.9 %, Partial Load (50%) 85.2 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 86.3 %, Partial Load (75%) 87.7 %, Partial Load (50%) 87.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	100
Bearing	6306-2Z/C3
Bearing NDE	6205-2Z/C3
Lubrication	For life
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	25 kg kg
Gross Weight	25.65 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
