Home / ABB / Flameproof IEC Low voltage motors / ABB 3GAA082350-JPK

ABB

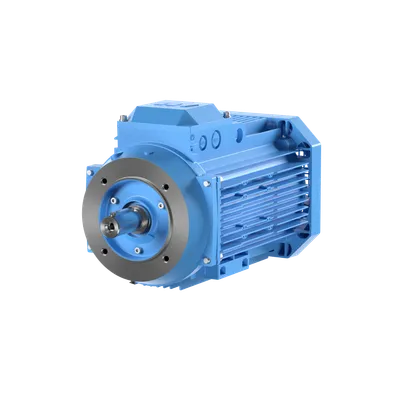

ABB 3GAA082350-JPK

MPN: 3GAA082350-JPK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA082350-JPK?

(3GAA082350-JPK)

Specifications

Ordering

ABB Type Designation	M3AA 80ME 4
Invoice Description	M3AA 80ME 4
Product Name	3-Phase squirrel cage motor
Product Type	3AA3__M3AA_IE3_AA
Country or Territory of Origin	Finland, Poland
Customs Tariff Number	85015100

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 84.0 %, Partial Load (75%) 83.9 %, Partial Load (50%) 81.9 %
IE Class Data (60 Hz)	IE Class IE4, Full Load (100%) 85.5 %, Partial Load (75%) 84.4 %, Partial Load (50%) 81.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	P

Mechanical

Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6203-2Z/C3
IM Class	IMB34 IM2101
Terminator Box Location	D-End top

Dimensions

Product Net Weight	13.5 kg kg
Gross Weight	16.5 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland
