Home / ABB / Flameproof IEC Low voltage motors / ABB 3GAA082315-ADECN

ABB

ABB 3GAA082315-ADECN

MPN: 3GAA082315-ADECN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA082315-ADECN?

(3GAA082315-ADECN)

Specifications

Ordering

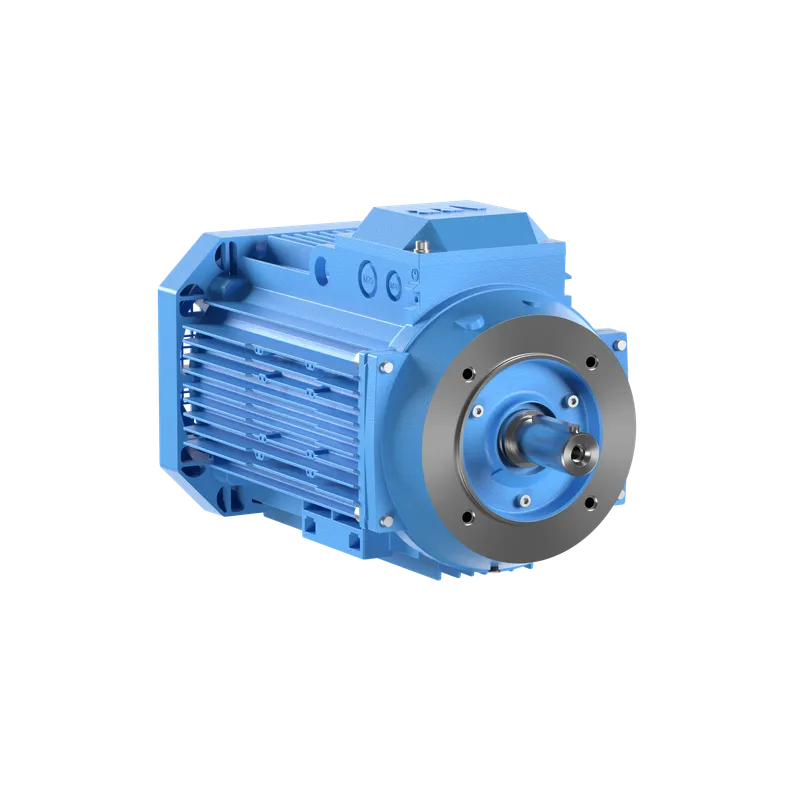

ABB Type Designation	M3AA 80E 4 +540/+545
Invoice Description	M3AA 80 incl. China Energey Label (+540) / China Compulsary Certificate (+545)
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	China
Customs Tariff Number	85015100
Stocked At (Warehouses)	Shanghai, China

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 79.8 %, Partial Load (75%) 80.4 %, Partial Load (50%) 77.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6203-2Z/C3
Lubrication	For life
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	15 kg kg
Gross Weight	15 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100

3GAA082315-ADECN: frequently asked questions

When can 3GAA082315-ADECN be shipped?

3GAA082315-ADECN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA082315-ADECN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA082315-ADECN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA082315-ADECN, subject to availability and destination.
