ABB 3GAA081320-CSK
- MPN
- 3GAA081320-CSK
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GAA081320-CSK?

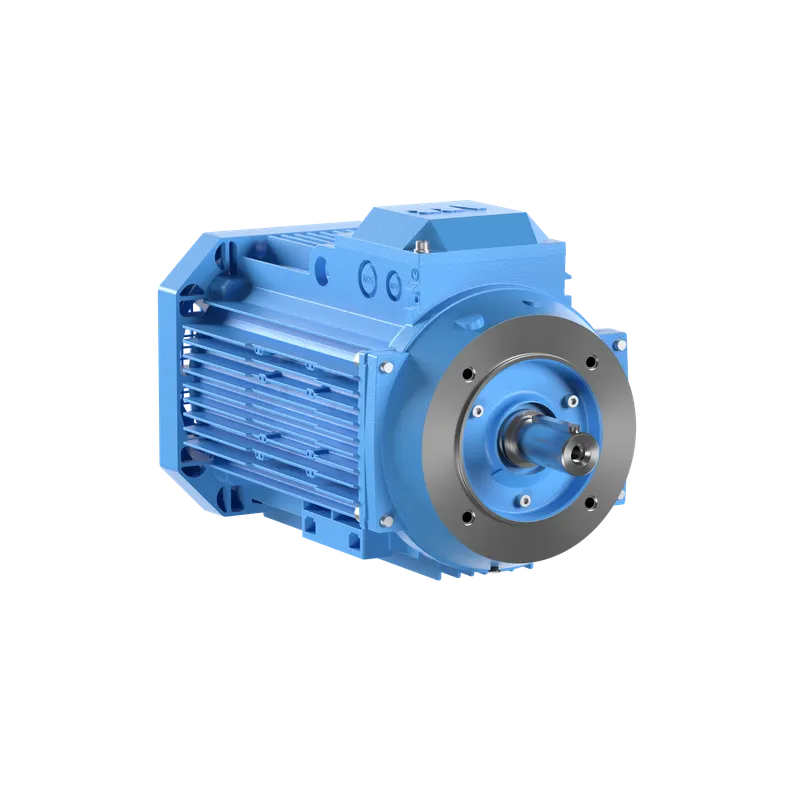

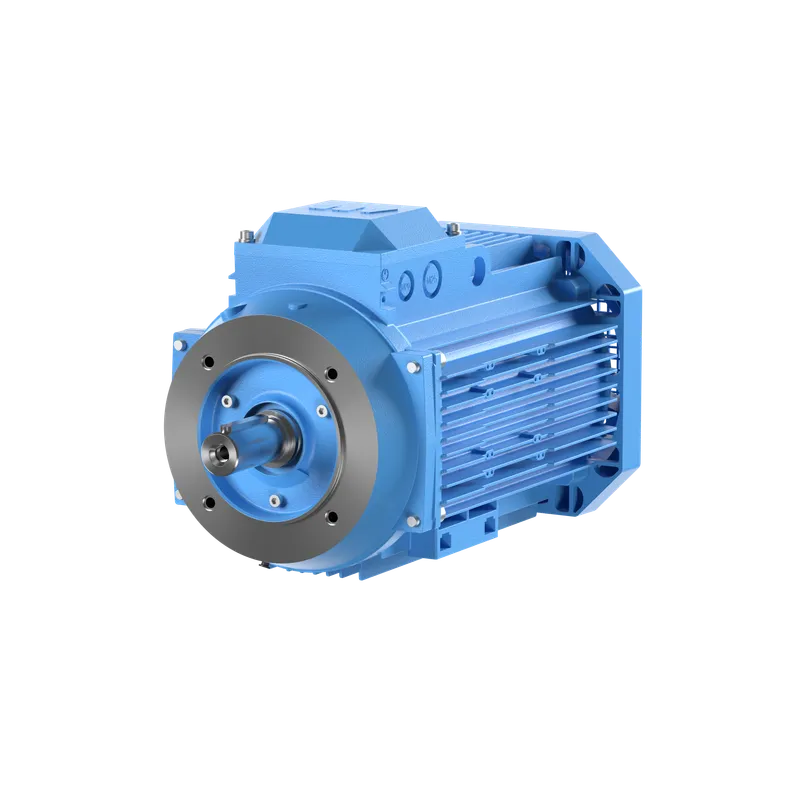

IE3 Premium Efficiency Aluminum Motors, 0.75 kW, 400 V (3GAA081320-CSK)
Specifications
Ordering
| ABB Type Designation | M3AA 80MB 2 |
| Invoice Description | M3AA 80MB 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA3__M3AA_IE3_AA |
| Country or Territory of Origin | China, Finland |
| Customs Tariff Number | 85015100 |
| Stocked At (Warehouses) | Menden, Germany, Sant Quirze del Vallés - BCN, Spain, Vittuone, Italy |
| Medium Description | 0.75kW, 2 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GAA081320-CSK) |
| Short Description | 0.75kW, 2P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB14/IM3601 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 0.75 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 80.7 %, Partial Load (75%) 79.0 %, Partial Load (50%) 75.6 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 77.0 %, Partial Load (75%) 75.1 %, Partial Load (50%) 69.9 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 80 |
| Bearing | 6204-2Z/C3 |
| Bearing NDE | 6203-2Z/C3 |
| IM Class | IMB14 IM3601 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 265.5 mm mm |
| Product Net Height | 193.5 mm mm |
| Product Net Width | 154 mm mm |
| Product Net Weight | 9.5 kg kg |
| Gross Weight | 12.5 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
3GAA081320-CSK: frequently asked questions
When can 3GAA081320-CSK be shipped?
3GAA081320-CSK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA081320-CSK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA081320-CSK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA081320-CSK, subject to availability and destination.
