ABB 3GAA081003-CSE
- MPN
- 3GAA081003-CSE
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GAA081003-CSE?
(3GAA081003-CSE)
Specifications
Ordering

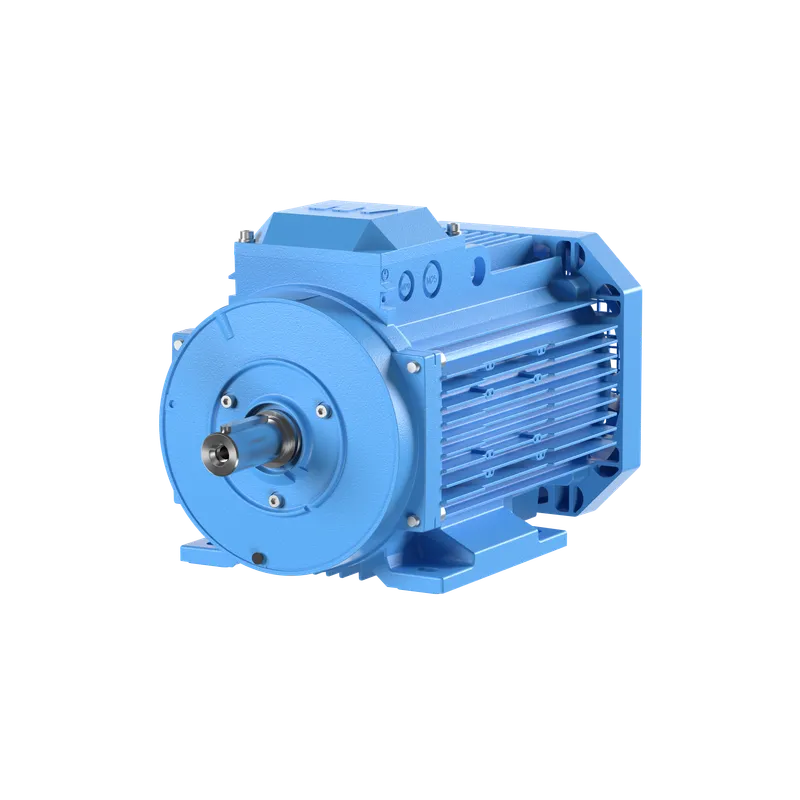

| ABB Type Designation | M3AA 80C 2 HO |
| Invoice Description | M3AA 80C 2 1,5kW V400Y 50Hz B14 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA2__M3AA_IE2_AA |
| Country or Territory of Origin | Romania |
| Customs Tariff Number | 85015220 |
| Replaced Product ID (OLD) | 3GAA081063-CSA, 3GVA081003-CSC |
| Stocked At (Warehouses) | Menden, Germany |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Size | 80 |
| Bearing | 6204-2ZC3 |
| Bearing NDE | 6203-2ZC3 |
| Lubrication | For life |
| IM Class | IMB14 IM3601 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Weight | 11 kg kg |
| Gross Weight | 11.4 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
3GAA081003-CSE: frequently asked questions
When can 3GAA081003-CSE be shipped?
3GAA081003-CSE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA081003-CSE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA081003-CSE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA081003-CSE, subject to availability and destination.
