ABB 3GAA062312-HSF

MPN: 3GAA062312-HSF
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA062312-HSF?

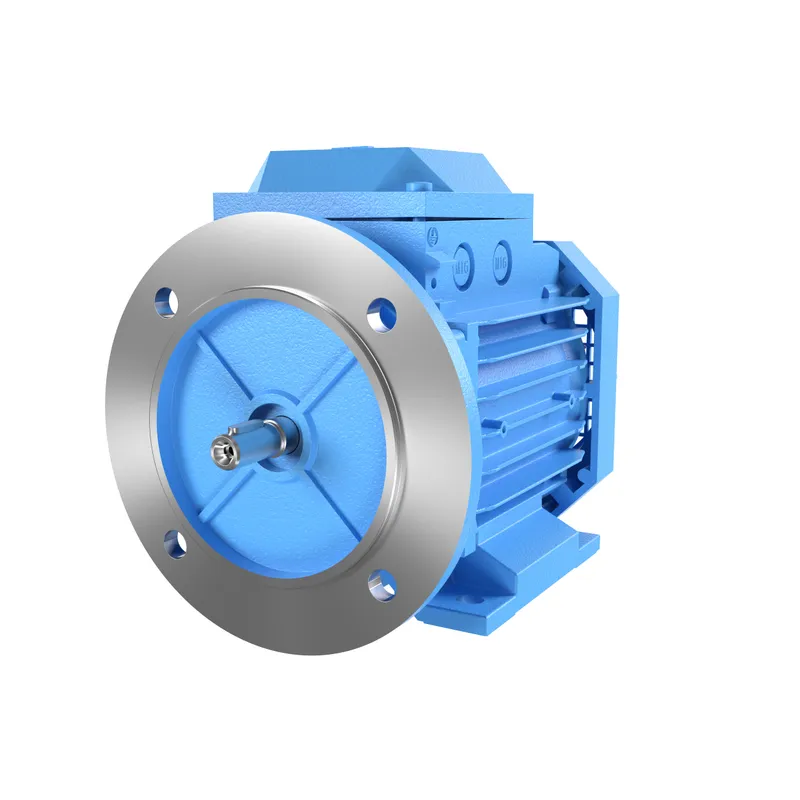

IE2 High Efficiency Aluminum Motors, 0.18 kW, 400 V (3GAA062312-HSF)

Specifications

Ordering

ABB Type Designation	M3AA 63B 4
Invoice Description	M3AA 63B 4
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	China, Romania
Customs Tariff Number	85015100
Replaced Product ID (OLD)	3GAA062002-HSE, 3GAA062002-HSC
Stocked At (Warehouses)	Vittuone, Italy
Medium Description	0.18kW, 4 Poles, Frame Size 63, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GAA062312-HSF)
Short Description	0.18kW, 4P, Frame Size 63, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	0.18 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 64.7 %, Partial Load (75%) 62.8 %, Partial Load (50%) 55.9 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 68.0 %, Partial Load (75%) 65.4 %, Partial Load (50%) 57.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Aluminum
Frame Size	63
Bearing	6201-2Z/C3
Bearing NDE	6201-2Z/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	208 mm mm
Product Net Height	154 mm mm
Product Net Width	124 mm mm
Product Net Weight	4.4 kg kg
Gross Weight	5.4 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
