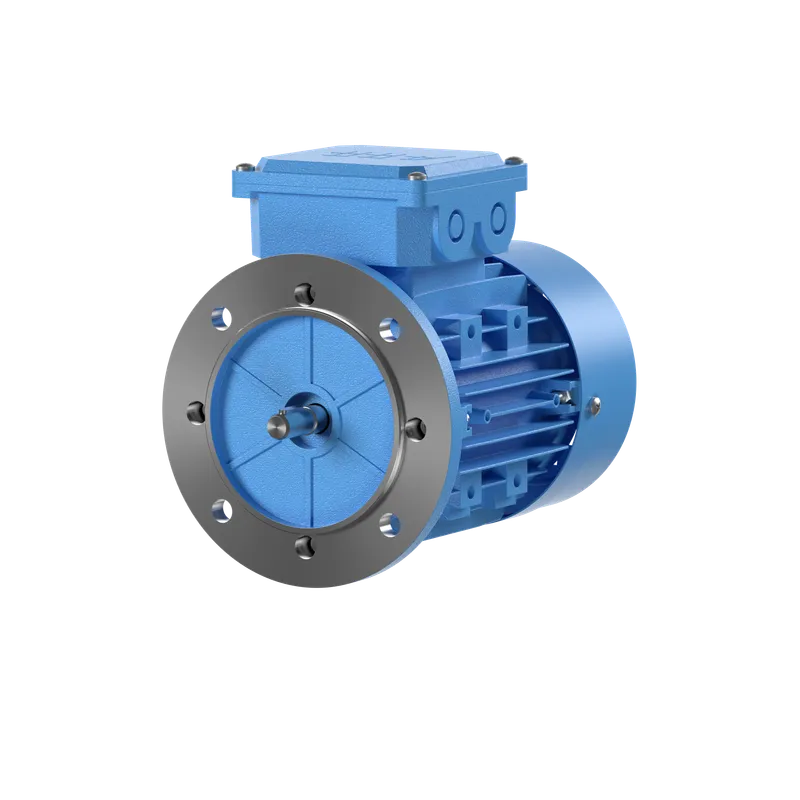

ABB 3GAA051001-CSE

MPN: 3GAA051001-CSE

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA051001-CSE?

(3GAA051001-CSE)

Specifications

Ordering

ABB Type Designation	M2AA 56 A 2 A
Invoice Description	M2AA 56 A 2 A
Product Name	3-Phase squirrel cage motor
Product Type	2AA2__M2AA__IE2_AA
Country or Territory of Origin	China
Customs Tariff Number	85015100

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 55.6 %, Partial Load (75%) 50.8 %, Partial Load (50%) 38.7 %
IE Class Data (60 Hz)	IE Class NA, Full Load (100%) 56.8 %, Partial Load (75%) 50.6 %, Partial Load (50%) 40.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Aluminum
Frame Size	56
Bearing	6201-2Z/C3
Bearing NDE	6201-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Weight	2.6 kg kg
Gross Weight	3.6 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
