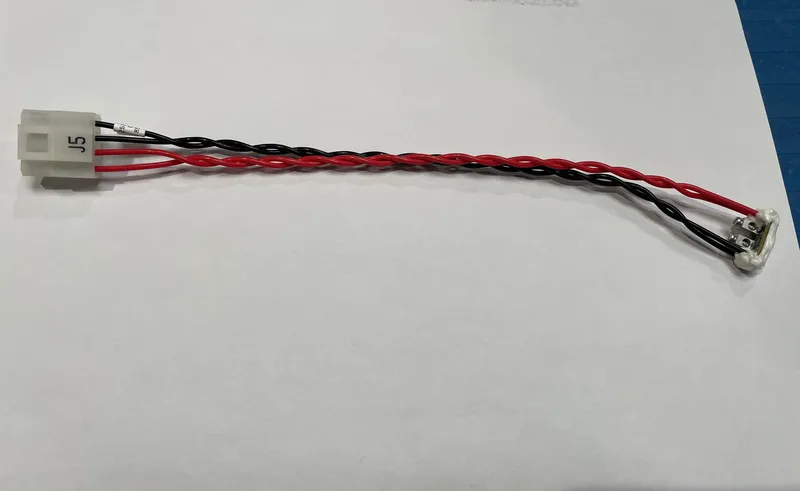

ABB 3BUS212517-003 – HPIR LAMP CABLE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | QCS Quality Control System Spares |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.06 kg |
| Country of origin | US |
Shipping & availability
When can 3BUS212517-003 be shipped?
3BUS212517-003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3BUS212517-003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3BUS212517-003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BUS212517-003, subject to availability and destination.
THE 3BUS212547-003 HPIR-T Lamp Power Supply Board IS COMPATABLE WITH 3BUS212517-003 HPIR LAMP CABLE..IT IS NOT COMPATABILE WITH THE EARLIER 3BUS212517-001 AND -002 HPIR LAMP CABLE THIS DUE TO THE NEW CABLE BOARD END CONNECTOR TYPE USED.
3BUS212517-003 HPIR LAMP CABLE should be use with Lamp PCB 3BUS212547-003, or alternative, order 3BUS212517-903 HPIR LAMP PWR SUPPLY PCB AND LAMP CABLE 003 KIT which include 3BUS212517-003 & 3BUS212547-003, details see 3BUS212517-900 Field Notice HPIT T FW Lamp Cable w P Supply PCB Replacement.
ABB 3BUS212517-003 — HPIR LAMP CABLE (QCS Quality Control System Spares). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3BUS212517-003 |
| System | QCS Quality Control System Spares |
| Customs Tariff Number | 90329000 |
| Gross Weight | 0 kg |
| Invoice Description | HPIR LAMP CABLE |
| Part Type | New |
| Product Name | HPIR LAMP CABLE |
| Product Type | Spare_Parts |
| Short Description | HPIR LAMP CABLE |
| Width | 50 mm |
| Height | 30 mm |
| Depth / Length | 380 mm |
| Weight | 0.06 kg |
