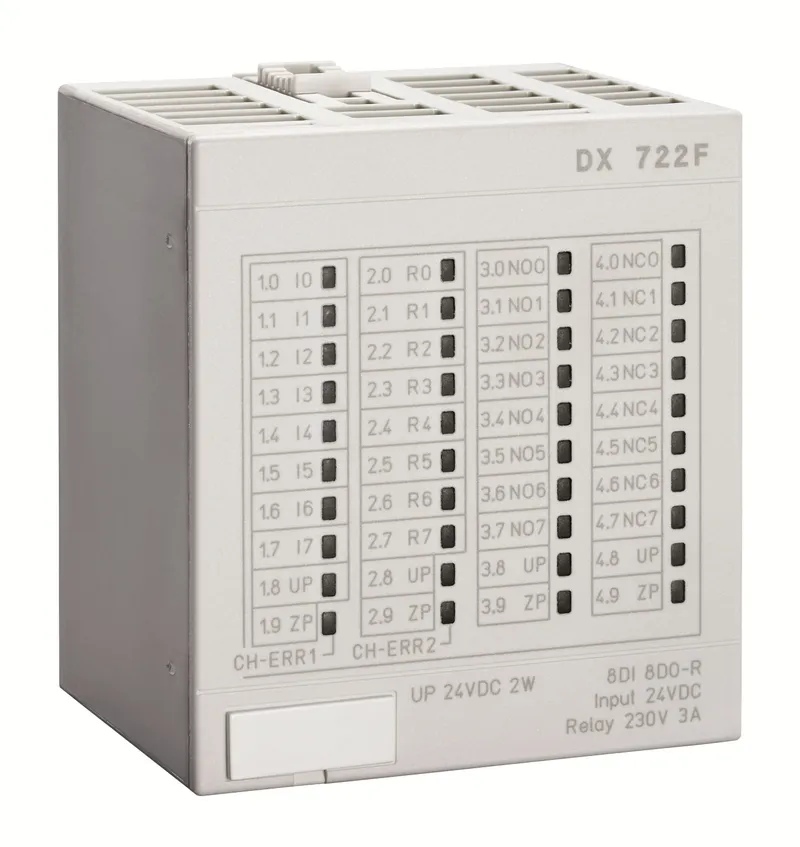

ABB 3BDH000383R0005 – DX 722F Rev.B DX 722F Digital Input/Output Module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | S600 / S700 I/O |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.15 kg |
| Country of origin | DE |
Shipping & availability
When can 3BDH000383R0005 be shipped?
3BDH000383R0005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3BDH000383R0005 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3BDH000383R0005 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH000383R0005, subject to availability and destination.
The digital input / output module DX 722F has 16 channels with the following features:8 digital inputs 24 V DC in one group as well as 8 relay outputs with one switch-over contact each.The inputs and outputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the input channels.This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.
ABB 3BDH000383R0005 — DX 722F Rev.B DX 722F Digital Input/Output Module (S600 / S700 I/O). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3BDH000383R0005 |
| ABB type designation | DX 722F Rev.B |
| System | S600 / S700 I/O |
| Product group | S700 I/O > S700 I/O - Modules > DX 722F Digital Input/Output Module |
| EAN | 4013614503337 |
| HS Code | 853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts |
| Channel Type | DX |
| Number of Input Channels | 8 |
| Number of Output Channels | 8 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Number of Batteries | 0 |
| Width | 68 mm |
| Height | 54 mm |
| Depth / Length | 76 mm |
| Weight | 0.15 kg |
