ABB 3BDH000377R0005

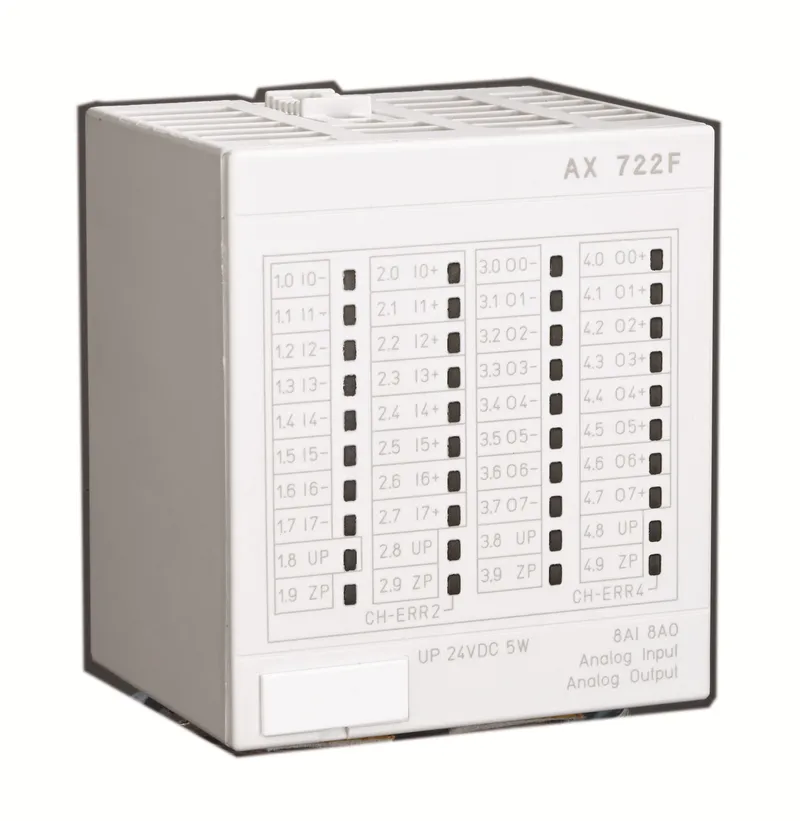

AX 722F AX 722F Analog Input/Output Module

MPN
3BDH000377R0005
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 3BDH000377R0005?

The analog input/output module AX 722F offers even more flexibility, as it combines analog input and output channels in one module with 16 channels. Eight of these channels can be individually configured as analog inputs, which can again sense voltage, current, or temperatures. Furthermore four channels can be configured as analog voltage outputs (-10 V to +10 V) or analog current outputs (0 … 20 mA or 4 … 20 mA) and the remaining four channels can provide voltage signals in the range from -10 V to +10 V. The inputs and outputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the channels.

This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.

ABB 3BDH000377R0005 — AX 722F Rev.B AX 722F Analog Input/Output Module (S600 / S700 I/O). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.

Specifications

Specifications

Product ID3BDH000377R0005
ABB type designationAX 722F Rev.B
SystemS600 / S700 I/O
Product groupS700 I/O > S700 I/O - Modules > AX 722F Analog Input/Output Module
EAN4013614503238
HS Code853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts
Channel TypeAX
Number of Input Channels8
Number of Output Channels8
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Number of Batteries0
Width68 mm
Height54 mm
Depth / Length76 mm
Weight0.15 kg

3BDH000377R0005: frequently asked questions

When can 3BDH000377R0005 be shipped?

3BDH000377R0005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3BDH000377R0005 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3BDH000377R0005 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH000377R0005, subject to availability and destination.
