Home / ABB / ACS580-01 - Wall-mounted drive / ABB 3ABD00060263-D

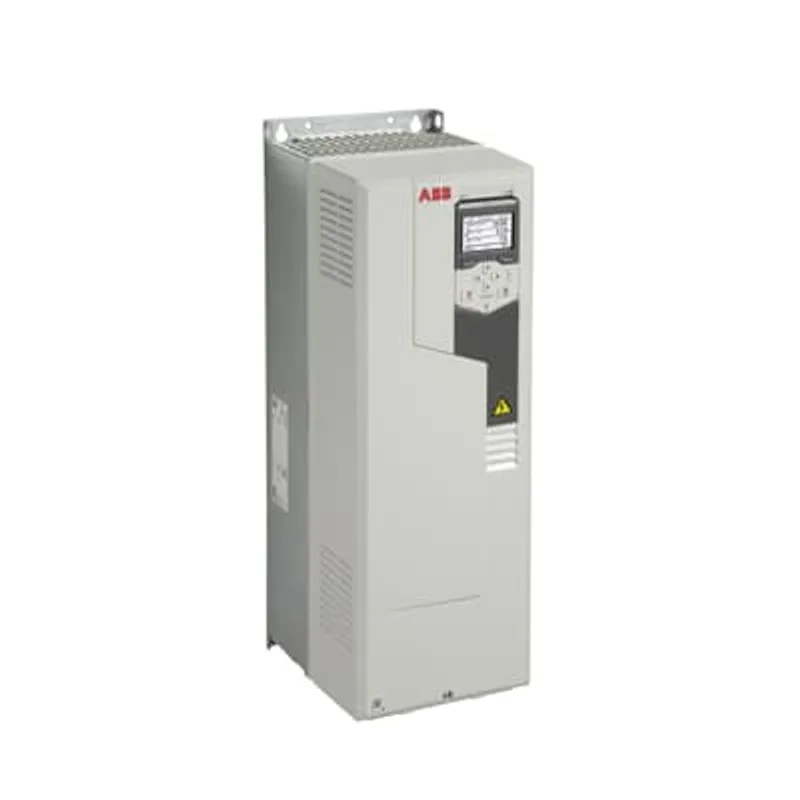

ABB 3ABD00060263-D

LV AC general purpose wall-mounted drive, IEC: Pn 45 kW, 89 A (ACS580-01-089A-4+N7511+P944+K492)

MPN: 3ABD00060263-D
Category: ACS580-01 - Wall-mounted drive

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB 3ABD00060263-D?

The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.

Specifications

Customs Tariff Number	85044099
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS580-01-089A-4+N7511+P944+K492 PN: 45kW, IN: 89A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	19 kg
Product Net Depth / Length	258 mm
Product Net Height	600 mm
Product Net Width	203 mm
Package Level 1 Units	0 carton
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Frequency (f)	47.5 ... 63 Hz
Frame Size	R4
Input Voltage (Uin)	380 ... 480 V
Mounting Type	Wall-mounted
Output Current, Normal Use (In)	89 A
Output Current, Light-Overload Use (ILD)	83 A
Output Current, Heavy-Duty Use (IHD)	72 A
Output Power, Normal Use (Pn)	45 kW
Output Power, Light-Overload Use (PLD)	45 kW
Output Power, Heavy-Duty Use (PHD)	37 kW
Efficiency Level	IE2
UNSPSC	39122001
