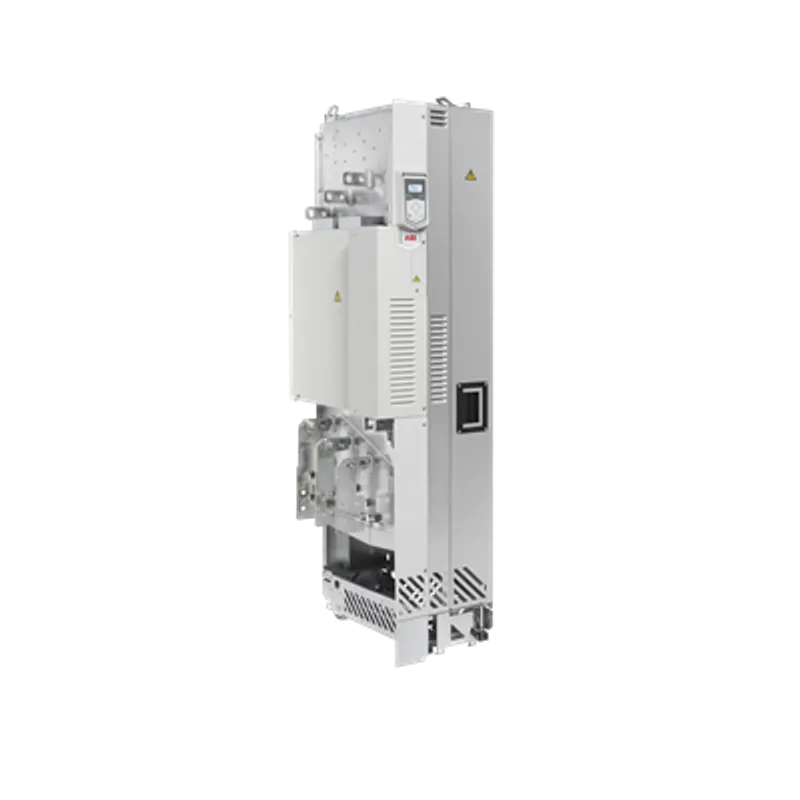

ABB 3ABD00059231-D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ACS530-04 - Drive module |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 161 kg |
Shipping & availability
When can 3ABD00059231-D be shipped?
3ABD00059231-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3ABD00059231-D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3ABD00059231-D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3ABD00059231-D, subject to availability and destination.
The ACS530-04 has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS530 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS530-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Specifications
Specifications
| Customs Tariff Number | 85044099 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS530-04-505A-4+P973 PN: 250kW, IN: 505A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 161 kg |
| Product Net Depth / Length | 529 mm |
| Product Net Height | 1462 mm |
| Product Net Width | 345 mm |
| Package Level 1 Depth / Length | 500 mm |
| Package Level 1 Height | 2050 mm |
| Package Level 1 Width | 645 mm |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP00 |
| Enclosure Type NEMA | Open Type |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R10 |
| Input Voltage (Uin) | 380 … 480 V |
| Mounting Type | Cabinet-built_NO UNIT$ |
| Output Current, Normal Use (In) | 505 A |
| Output Current, Light-Overload Use (ILD) | 485 A |
| Output Power, Normal Use (Pn) | 250 kW |
| Output Power, Light-Overload Use (PLD) | 250 kW |
| UNSPSC | 39122001 |
