ABB EM2572T-4

350HP,1780RPM,3PH,60HZ,449T,DP,F1

MPN
EM2572T-4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB EM2572T-4?

General Purpose Motor 350 Hp 460 V (EM2572T-4)

Specifications

Ordering

Catalog NumberEM2572T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015381
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor89 %
Rated Efficiency96.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)1800 r/min
Output Power350 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeDP
Frame MaterialIron
Motor Frame Size449T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height52.5 in
Product Net Weight2694 lb
Product Net Width42 in
Dimension Diagram604989-505

Certificates and Declarations

Certification AgencyCSA EEV, CURUSEEV
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EM2572T-4: frequently asked questions

When can EM2572T-4 be shipped?

EM2572T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM2572T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM2572T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM2572T-4, subject to availability and destination.

More ABB parts

ABB EM2565T-4 – 250HP,3565RPM,3PH,60HZ,445TS,DP,F1
ABB
EM2565T-4

250HP,3565RPM,3PH,60HZ,445TS,DP,F1

ABB EM2568T-4 – 300HP/3550RPM/3PH/OPEN/NEMA 445TS
ABB
EM2568T-4

300HP/3550RPM/3PH/OPEN/NEMA 445TS

ABB EM25694T-4 – 300HP,1785RPM,3PH,60HZ,449T,DP,F1
ABB
EM25694T-4

300HP,1785RPM,3PH,60HZ,449T,DP,F1

ABB EM2571T-4 – 350HP,3570RPM,3PH,60HZ,449TS,DP,F1
ABB
EM2571T-4

350HP,3570RPM,3PH,60HZ,449TS,DP,F1

ABB EM2583T-4 – 100HP,1190RPM,3PH,60HZ,444T,1860M,O
ABB
EM2583T-4

100HP,1190RPM,3PH,60HZ,444T,1860M,O

ABB EM30003 – .25HP,1725RPM,3PH,60HZ,48,3413M,ODP
ABB
EM30003

.25HP,1725RPM,3PH,60HZ,48,3413M,ODP

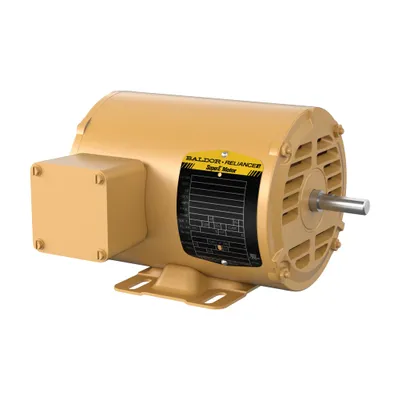

ABB EM30004 – .25HP,1140RPM,3PH,60HZ,48,3416M,OPE
ABB
EM30004

.25HP,1140RPM,3PH,60HZ,48,3416M,OPE

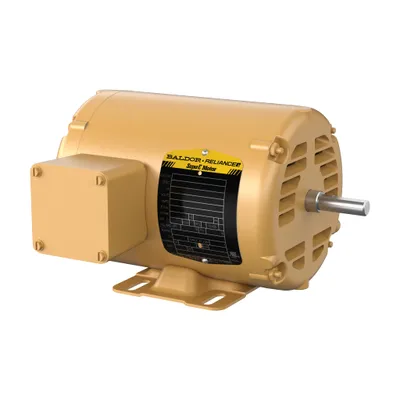

ABB EM30006 – .33HP,3450RPM,3PH,60HZ,48,3413M,ODP
