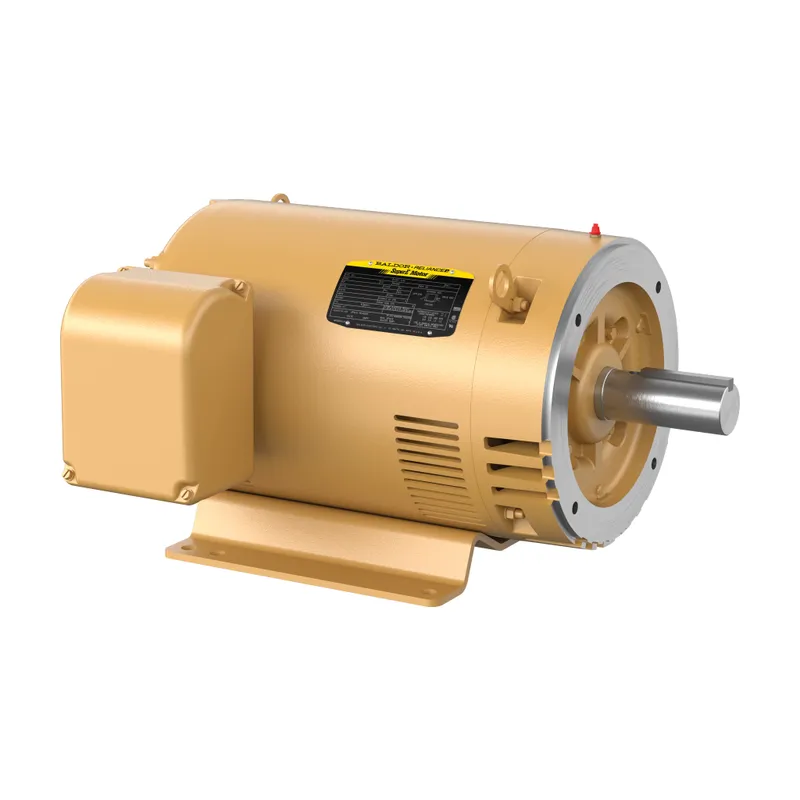

ABB CEM2536T-G

30HP,1180RPM,3PH,60HZ,326TC,OPSB,F1

MPN
CEM2536T-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CEM2536T-G?

Shaft Ground 30 Hp 230 V (CEM2536T-G)

Specifications

Ordering

Catalog NumberCEM2536T-G G
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassH
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor77 %
Rated Efficiency93.60 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power30 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size326TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21.625 in
Product Net Weight482 lb
Product Net Width25.688 in
Dimension Diagram40LY-000-045

Certificates and Declarations

Certification AgencyCURUSEEV, NEMA_PREMIUM, UR
ETIM 7EC001851 - Electric motor
