ABB EM251302T-4

300HP,3565RPM,3PH,60HZ,447TS,A44084

MPN
EM251302T-4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

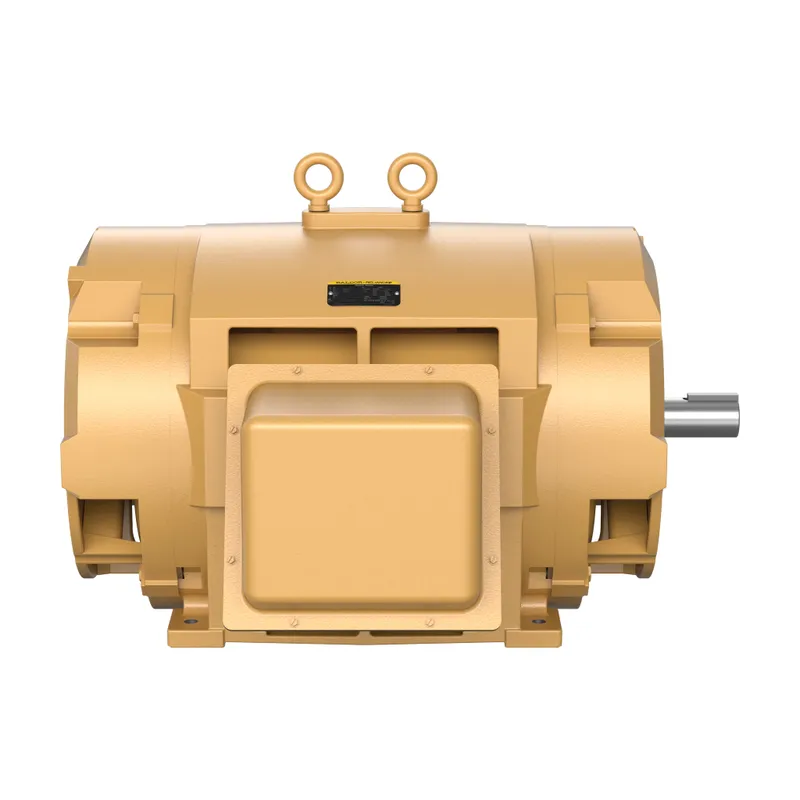

What is the ABB EM251302T-4?

General Purpose Motor 300 Hp 460 V (EM251302T-4)

Specifications

Ordering

Catalog NumberEM251302T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015381
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency95.40 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorY-Start/Delta Run
Synchronous Speed (vsyn)3600 r/min
Output Power300 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeDP
Frame MaterialIron
Motor Frame Size447TS
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height32 in
Product Net Weight1748.999 lb
Product Net Width41.5 in
Dimension Diagram604989-483

Certificates and Declarations

Certification AgencyCSA EEV, CURUSEEV
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EM251302T-4: frequently asked questions

When can EM251302T-4 be shipped?

EM251302T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM251302T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM251302T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM251302T-4, subject to availability and destination.

More ABB parts

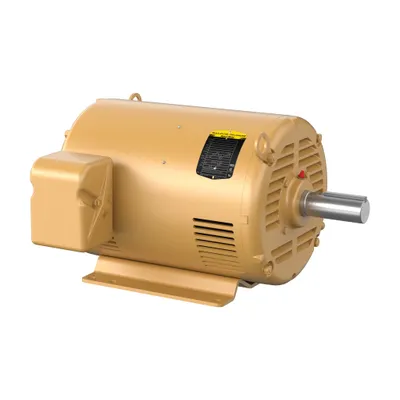

ABB EM2511T-BG – 10HP,1180RPM,3PH,60HZ,256T,3954M,OP
ABB
EM2511T-BG

10HP,1180RPM,3PH,60HZ,256T,3954M,OP

ABB EM2511T-G – 10HP,1180RPM,3PH,60HZ,256T,3954M,OP
ABB
EM2511T-G

10HP,1180RPM,3PH,60HZ,256T,3954M,OP

ABB EM251202T-4 – 200HP,3565RPM,3PH,60HZ,444TS,A44056
ABB
EM251202T-4

200HP,3565RPM,3PH,60HZ,444TS,A44056

ABB EM251252T-4 – 250HP,3565RPM,3PH,60HZ,445TS,A44068
ABB
EM251252T-4

250HP,3565RPM,3PH,60HZ,445TS,A44068

ABB EM251352T-4 – 350HP,3560RPM,3PH,60HZ,447TSS,A4408
ABB
EM251352T-4

350HP,3560RPM,3PH,60HZ,447TSS,A4408

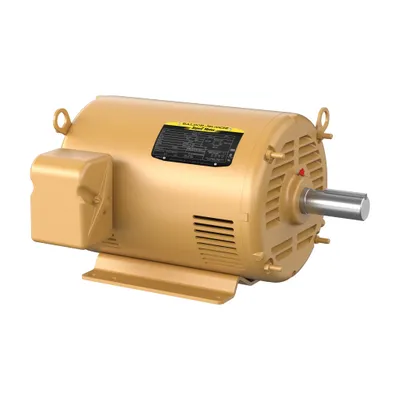

ABB EM2513T – 15HP,1765RPM,3PH,60HZ,254T,3948M,OP
