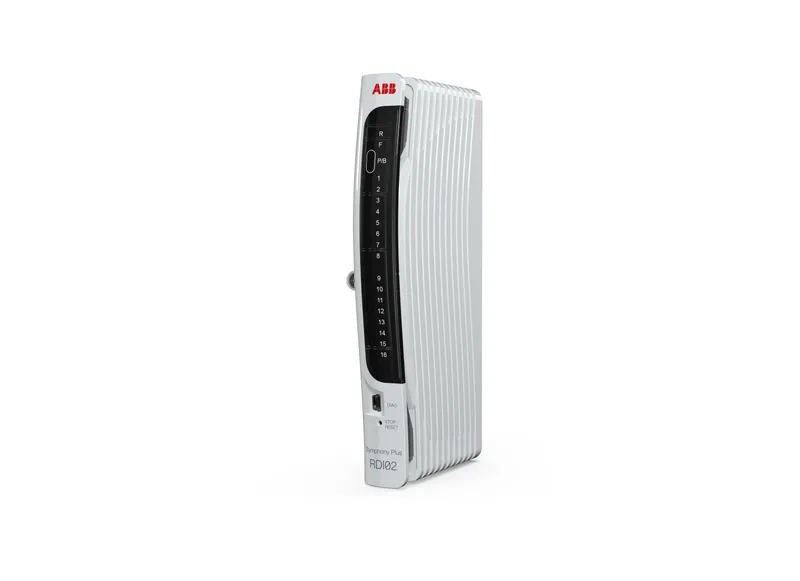

ABB 2VAA008430R1 – RDI02 Red. DI, 16-CH, 120VAC/125VDC, SOE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Symphony Plus |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.23 kg |
| Country of origin | IN |
Shipping & availability
When can 2VAA008430R1 be shipped?
2VAA008430R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2VAA008430R1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2VAA008430R1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2VAA008430R1, subject to availability and destination.
Redundant Digital Input module, 120VAC / 125VDC, Individual Channels Isolated, 10 / 20ms SOE Time-stamping. Use Base xBR01-FPH, xBR01-FPN or xBR01-EPD
ABB 2VAA008430R1 — RDI02 Red. DI, 16-CH, 120VAC/125VDC, SOE (Symphony Plus). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 2VAA008430R1 |
| ABB type designation | RDI02 |
| System | Symphony Plus |
| Product group | S+ SD I/O > SD I/O - Redundant Modules > RDI02 Redundant Digital Inputs |
| HS Code | 853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts |
| Channel Type | DI |
| Number of Input Channels | 16 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Number of Batteries | 0 |
| Width | 34 mm |
| Height | 118 mm |
| Depth / Length | 190 mm |
| Weight | 0.23 kg |
