ABB VEL11317A

2HP,3470RPM,1PH,60HZ,56C,3540LC,OPE

MPN
VEL11317A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB VEL11317A?

General Purpose Motor 2 Hp 115 V (VEL11317A)

Specifications

Ordering

Catalog NumberVEL11317A
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt
Insulation ClassB
NEMA Design CodeL
Number of Phases1-phase
Number of Poles2P
Number of Speedssingle_speed
Power Factor99 %
Rated Efficiency82.90 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)3600 r/min
Output Power2 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeOPEN
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeFootless
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight66 lb
Product Net Width0 in

Certificates and Declarations

Certification AgencyCURUSEEV

VEL11317A: frequently asked questions

When can VEL11317A be shipped?

VEL11317A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VEL11317A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VEL11317A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VEL11317A, subject to availability and destination.

More ABB parts

ABB VEL11309A – 1HP,3480RPM,1PH,60HZ,56C,3524LC,OPE
ABB
VEL11309A

1HP,3480RPM,1PH,60HZ,56C,3524LC,OPE

ABB VEL11313 – 1.5HP,3480RPM,1PH,60HZ,56C,3532LC,O
ABB
VEL11313

1.5HP,3480RPM,1PH,60HZ,56C,3532LC,O

ABB VEL11313A – 1.5HP,3480RPM,1PH,60HZ,56C,3532LC,O
ABB
VEL11313A

1.5HP,3480RPM,1PH,60HZ,56C,3532LC,O

ABB VEL11317 – 2HP,3470RPM,1PH,60HZ,56C,3540LC,OPE
ABB
VEL11317

2HP,3470RPM,1PH,60HZ,56C,3540LC,OPE

ABB VEL11318 – 1HP,1750RPM,1PH,60HZ,56C,3528LC,ODT
ABB
VEL11318

1HP,1750RPM,1PH,60HZ,56C,3528LC,ODT

ABB VEL11318A – 1HP,1750RPM,1PH,60HZ,56C,3528LC,OPE
ABB
VEL11318A

1HP,1750RPM,1PH,60HZ,56C,3528LC,OPE

ABB VEL11319 – 1.5HP,1725RPM,1PH,60HZ,56C,3536LC,O
ABB
VEL11319

1.5HP,1725RPM,1PH,60HZ,56C,3536LC,O

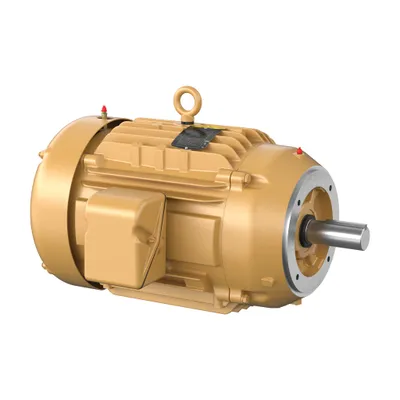

ABB VEM2332T – 10HP,1180RPM,3PH,60HZ,256TC,0960M,T
