ABB CJL3515A

2HP,3450RPM,1PH,60HZ,3535L,N

MPN
CJL3515A
Category
Jet pump
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CJL3515A?

Pump Motor 2 Hp 115 V (CJL3515A)

Specifications

Ordering

Catalog NumberCJL3515A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassB
NEMA Design CodeL
Number of Phases1-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor82 %
Rated Efficiency74 %
Service Factor1.00
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power2 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size56J
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight51 lb
Product Net Width13.75 in
Dimension Diagram35LYZ185

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor

CJL3515A: frequently asked questions

When can CJL3515A be shipped?

CJL3515A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CJL3515A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CJL3515A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CJL3515A, subject to availability and destination.

More ABB parts

ABB CJL3504A – .5HP,1725RPM,1PH,60HZ,56J,3421L,TEF
ABB
CJL3504A

.5HP,1725RPM,1PH,60HZ,56J,3421L,TEF

ABB CJL3507A – .75HP,1725RPM,1PH,60HZ,56J,3428LC,T
ABB
CJL3507A

.75HP,1725RPM,1PH,60HZ,56J,3428LC,T

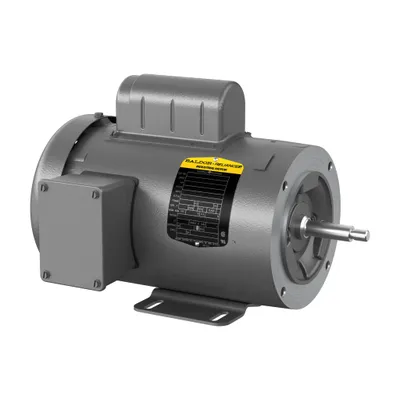

ABB CJL3509A – 1HP,3450RPM,1PH,60HZ,3524L,N
