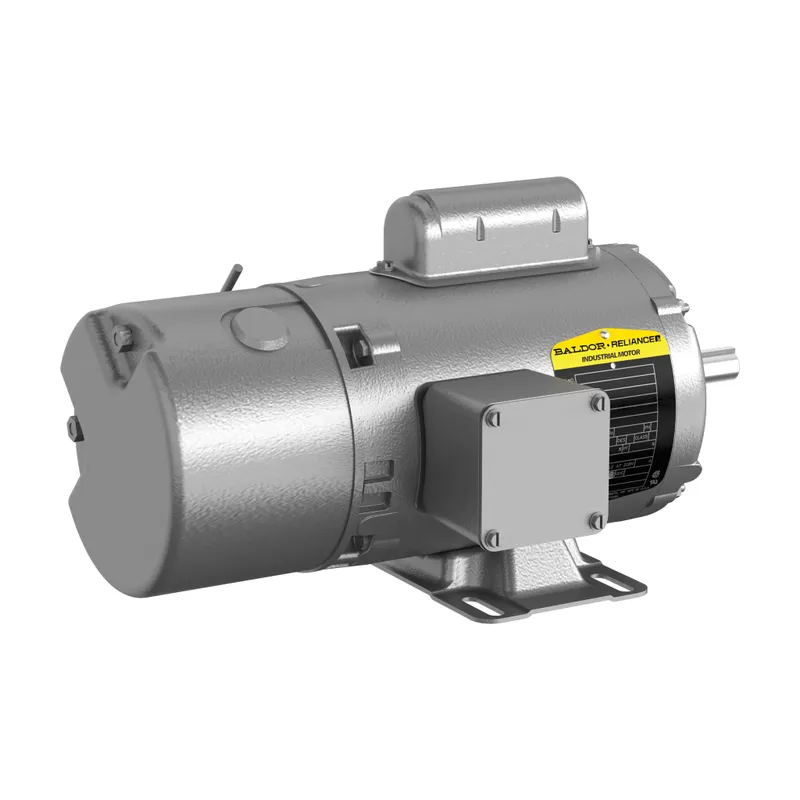

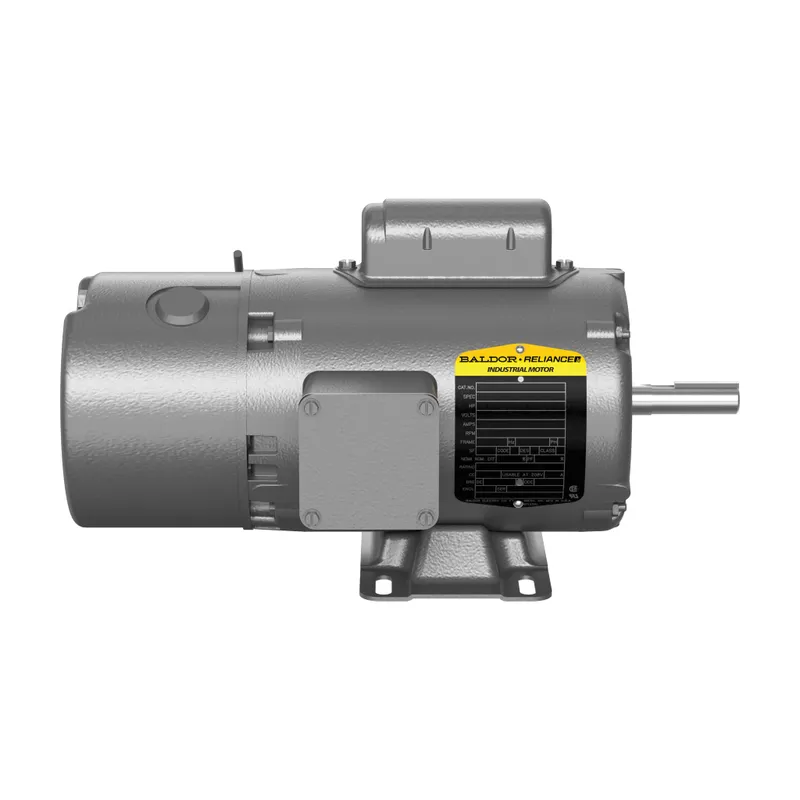

ABB BL3516

.25HP,1725RPM,1PH,60HZ,56,BRAKE,341

MPN: BL3516
Category: Short Series Brake

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB BL3516?

Unit Handling Motors 0.25 Hp 115 V (BL3516)

Specifications

Ordering

Catalog Number	BL3516
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	63 %
Rated Efficiency	59.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.25 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TENV
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	11 in
Product Net Weight	27 lb
Product Net Width	10.5 in

Certificates and Declarations

Certification Agency

CSA, UR
