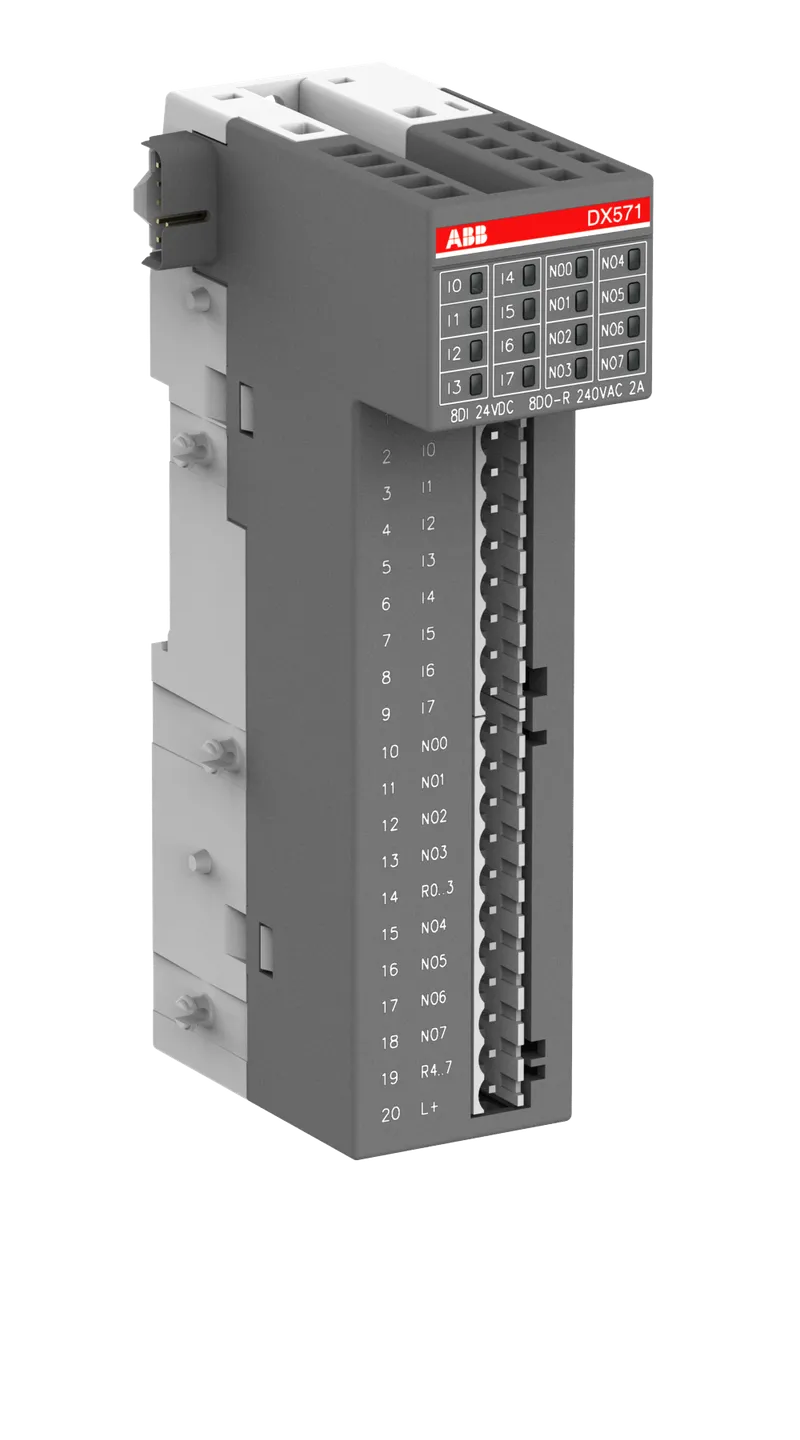

ABB 1TNE968902R2302
S500-eCo I/O module
- MPN
- 1TNE968902R2302
- Category
- S500-eCo I/O modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1TNE968902R2302?
DX571: S500-eCo Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A. 1-wire.
Specifications
Ordering
| CN8 | 85371091 |
| Invoice Description | Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A (DX571) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.14 kg kg |
| Product Net Depth / Length | 135 mm mm |
| Product Net Height | 74 mm mm |
| Product Net Width | 34 mm mm |
| Gross Weight | 0.242 kg kg |
| Package Level 1 Depth / Length | 93 mm mm |
| Package Level 1 Height | 63 mm mm |
| Package Level 1 Width | 170 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3AXD10002007200 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | fcf81398-6142-481c-8bff-736b95ecf10f Germany |
| RoHS Declaration | 3AXD10002007200 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A |
| Number of Digital Inputs | 8 |
| Number of Digital Outputs | 8 |
| Input Voltage Type | AC/DC |
| Input Current | 5 mA |
| Maximum Input Voltage | 0 ... 30 V V |
| Delay Time (τ) | 8 … 8 ms |
| Output | Relay |
| Output Voltage Type | AC |
| Output Voltage (Uout) | 24...230 V V |
| Output Current | 2 A A |
| Output Voltage Maximum | 195.5 … 276 V V |
| Connection Type | Pluggable |
| Degree of Protection | IP20 |
| Supply Voltage | 20.4 … 28.8 V DC V |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
Additional Information
| Product Main Type | DX571 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-04 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
