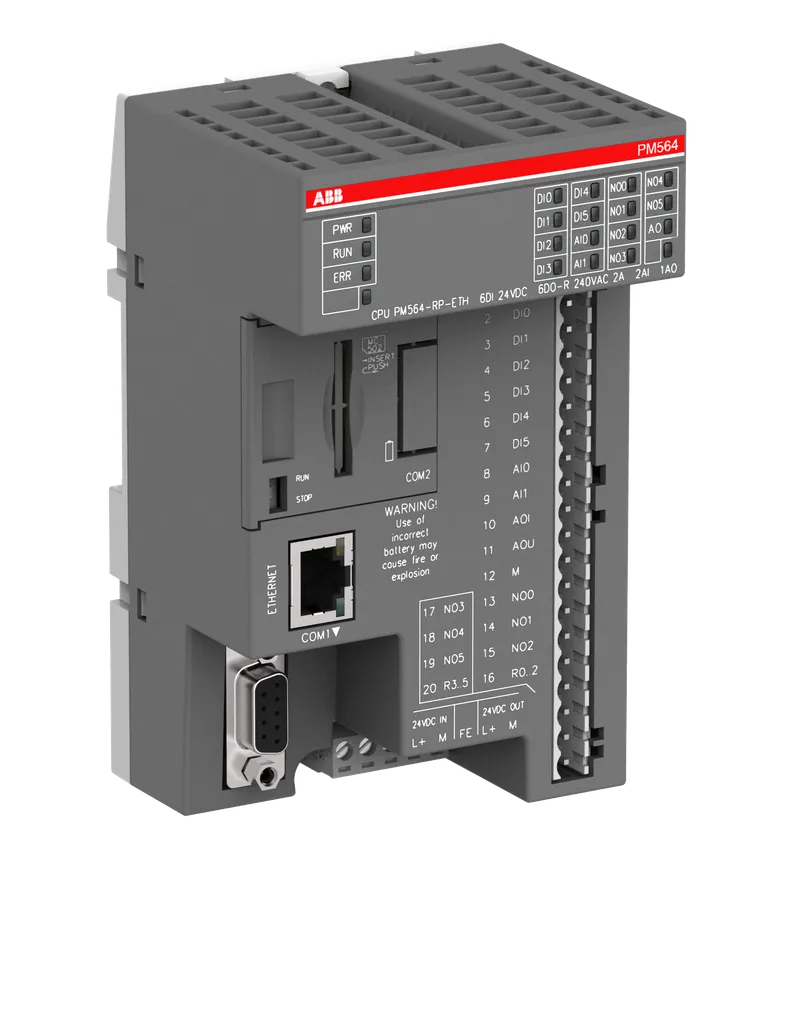

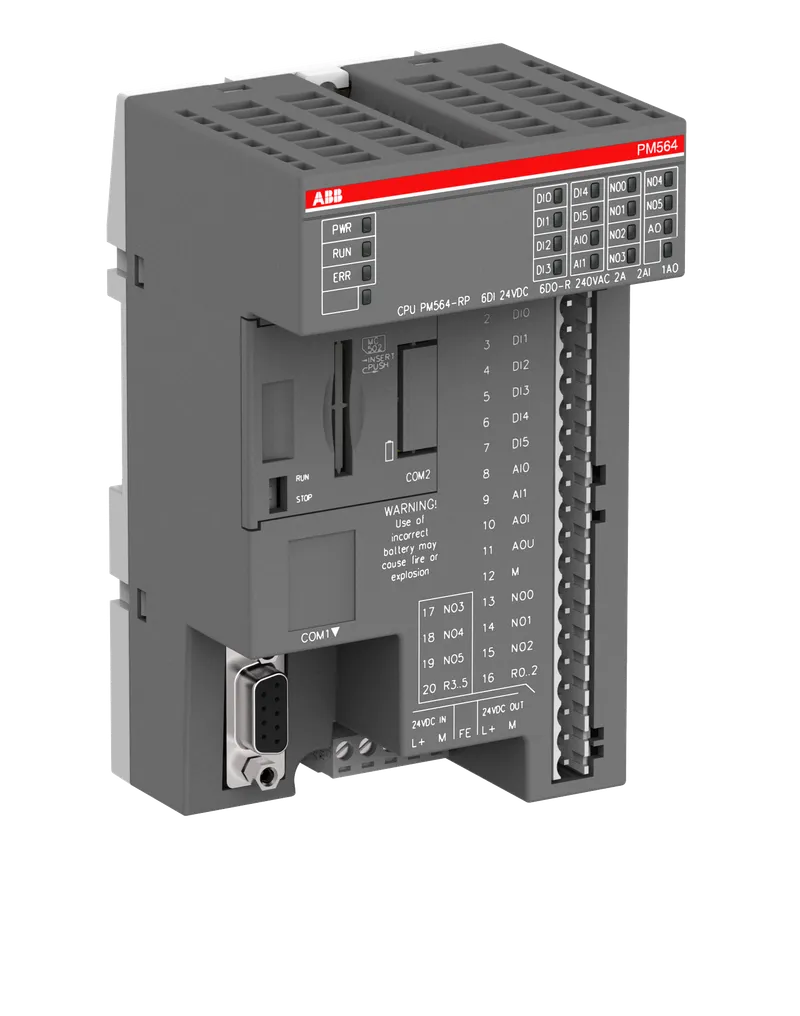

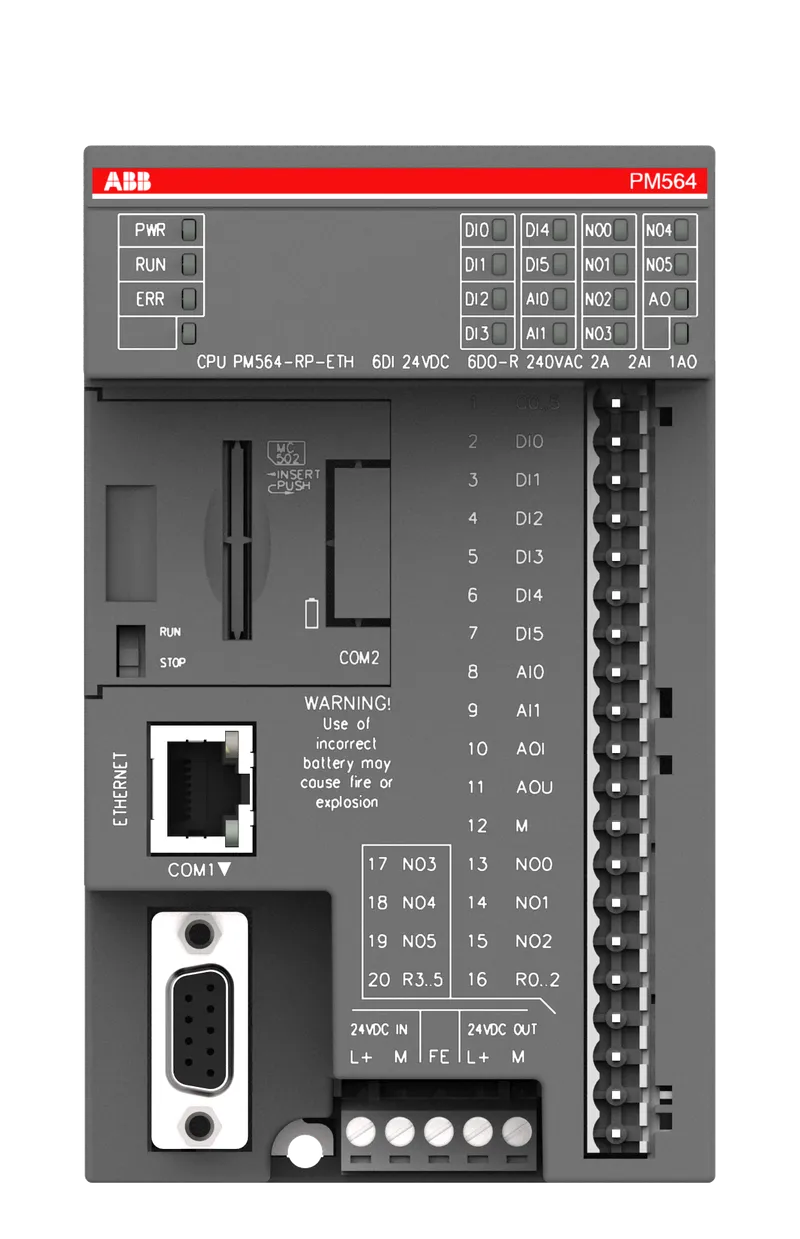

PM564-R-AC
MPN: 1TNE968900R1220 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1TNE968900R1220 be shipped?
1TNE968900R1220 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1TNE968900R1220 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1TNE968900R1220 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1TNE968900R1220, subject to availability and destination.
PM564-R-AC:AC500,Prog.Logic Controller 128kB,6DI/6DOR/2AI/1AO,1xRS485 2xOption Slots,100-240 VAC
Specifications
Additional Information
| ABB Type Designation | PM564-R-AC |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
| CN8 | 85371091 |
| Communication | Serial interfaces for communication and programming |
| Communication Interface | Serial |
| Country or Territory of Origin | Taiwan (Chinese Taipei) |
| CS31-Bus | 1 |
| Customs Tariff Number | 85371091 |
| Degree of Protection | IP20 |
| DESTO EGR | 05935 |
| EAN | 6943747170398 |
| Frame Size | Undefined |
| Gross Weight | 0.5 kg kg |
| I/O Option | PLC with Onboard IO - 6DI / 6DO-R / 2AI / 1AO |
| Invoice Description | PM564-R-AC:AC500,Prog.Logic Controller |
| Made To Order | No |
| Maximum Hardware Counter Input Frequency | 30 kHz |
| Maximum Number of Digital I/Os | 256 DI or 256 DO or mixed up to 256 digital channels local with max. 7 extension modules |
| Maximum Operating Altitude Permissible | 2000 m m |
| Memory Size User Data | 10 kB |
| Memory Size User Program | 128 kB |
| Memory Type User Data | Flash EPROM |
| Memory Type User Program | Flash EPROM, SD Card |
| Minimum Order Quantity | 1 piece |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 mm |
| Mounting Position | Horizontal, Vertical possible with derating |
| Mounting Type | DIN rail and panel mounting |
| Number of Digital Inputs DC 24V | 6 |
| Number of Digital Output Relays | 6 |
| Number of Hardware Counters | 2 |
| Order Multiple | 1 piece |
| Output Current | 2 A A |
| Output Voltage (Uout) | 24...230 V V |
| Primary Voltage | 240 V V |
| Product Main Type | PM564 |
| Product Name | Distributed Automation PLCs |
| Product Net Depth / Length | 135 mm mm |
| Product Net Height | 74 mm mm |
| Product Net Weight | 0.4 kg kg |
| Product Net Width | 82 mm mm |
| Product Type | PLC-AC500-eCo |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS485 non isolated, Programing, Modbus Master or slave, ASCII, CS31 Master |
| Serial Port 2 Type | Optional RS485 non isolated, Programing, Modbus Master or slave, ASCII |
| Short Description | PM564-R-AC:AC500,Prog.Logic Controller |
| Stocked At (Warehouses) | Menden, Germany |
| Terminal Type | Screw Terminals |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
