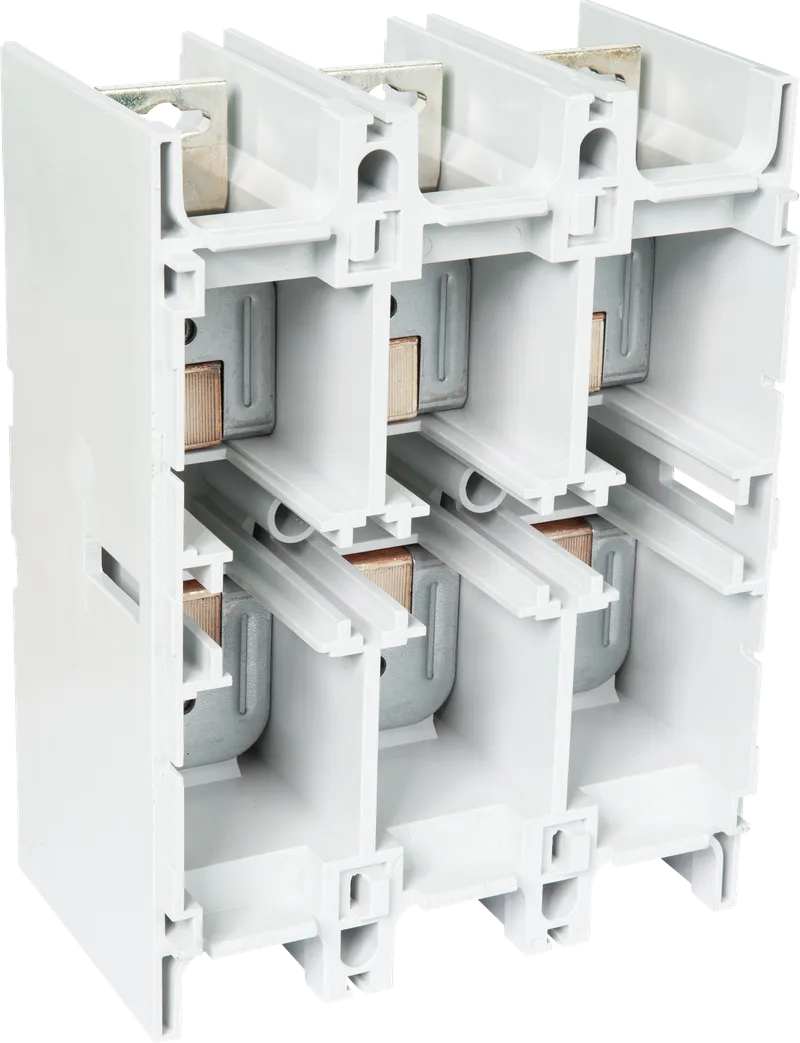

ABB 1SFN165503R9243 – AF580/750 Base Replacement Part
MPN: 1SFN165503R9243 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 5.14 kg |
| UPC / EAN | 7320500492420 |
Shipping & availability
When can 1SFN165503R9243 be shipped?
1SFN165503R9243 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN165503R9243 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN165503R9243 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN165503R9243, subject to availability and destination.
AF580/750 Base Replacement Part
Specifications
General
| Order code (ABB product ID) | 1SFN165503R9243 |
| Type | Spare Part Bottom AF580/750 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
Dimensions
| Product Net Width | 210 mm |
| Product Net Depth / Length | 125 mm |
| Product Net Height | 283 mm |
| Product Net Weight | 5.14 kg |
Technical
| Suitable For | AF580, AF750 |
| Product Name | Replacement Part |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
