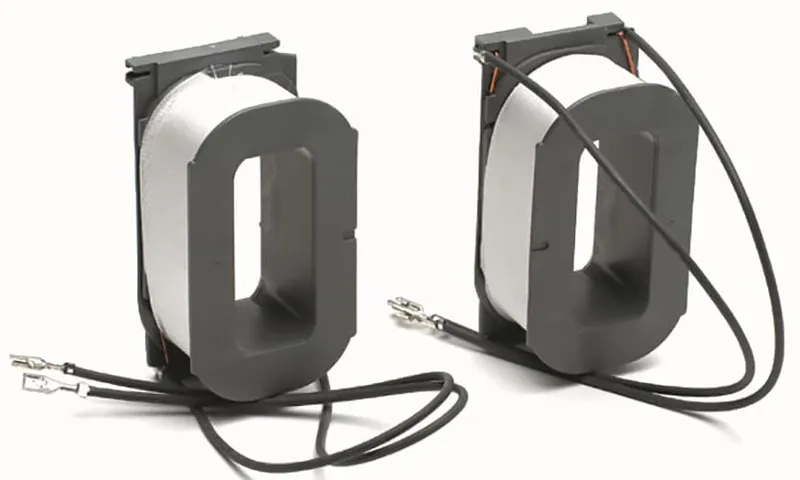

ABB 1SFN156170R7006 – ZAF750 100-250V Operating Coil
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.34 kg |
| Country of origin | India |
| UPC / EAN | 7320500222621 |
Shipping & availability
When can 1SFN156170R7006 be shipped?
1SFN156170R7006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN156170R7006 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN156170R7006 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN156170R7006, subject to availability and destination.
a.c. / d.c. operated wide range contactor coil with electronic interface
Specifications
General
| Order code (ABB product ID) | 1SFN156170R7006 |
| Type | ZAF750-70 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 212 mm |
| Product Net Depth / Length | 142 mm |
| Product Net Height | 62 mm |
| Product Net Weight | 1.34 kg |
Technical
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V |
| Terminal Type | Screw Terminals |
| Suitable For | AF580, AF750, AF1250, GAF750, GAF1250 |
| Suitable for Product Class | Block Contactors |
| Product Name | Operating Coil |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | M |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121010 |
| IDEA Granular Category Code (IGCC) | 4144 >> Coil for low-voltage |
| E-Number (Finland) | 3709315 |
| E-Number (Norway) | 4121059 |
| E-Number (Sweden) | 3229138 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

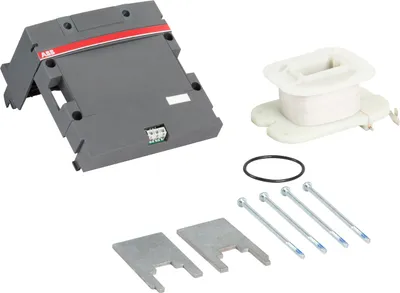

Available on requestZAF370-33 Coil Replacement KitAvailable on requestZAF370-34 Coil Replacement Kit
