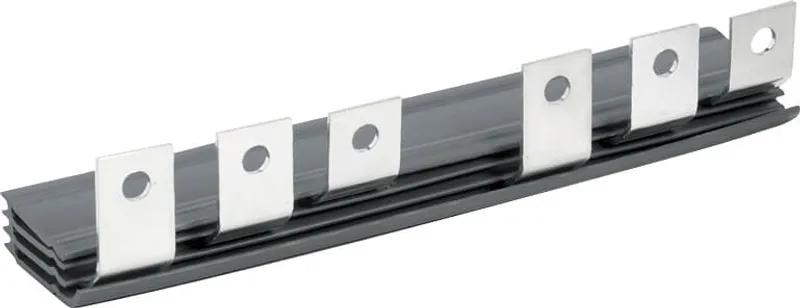

ABB 1SFN084304R1000 – BES110-30 Connection Set
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.25 kg |
| UPC / EAN | 7320500175071 |
Shipping & availability
When can 1SFN084304R1000 be shipped?
1SFN084304R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN084304R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN084304R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN084304R1000, subject to availability and destination.
Line or load side busbar kit for 3 pole phase to phase contactors mounted side by side
Specifications
General
| Order code (ABB product ID) | 1SFN084304R1000 |
| Type | BES110-30 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 55 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Height | 117 mm |
| Product Net Weight | 0.25 kg |
Technical
| Terminal Type | Screw Terminals |
| Suitable For | A95, A110, AX95, AX115, AX150 |
| Suitable for Product Class | Block Contactors |
| Product Name | Connection Set |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | W |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Norway) | 4120503 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
More ABB parts

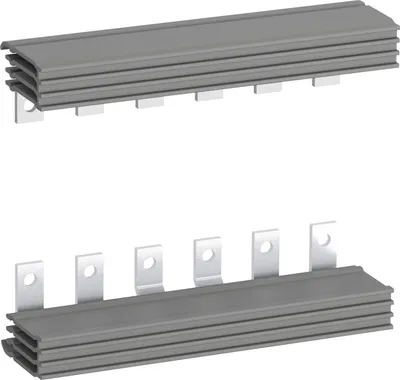

Available on requestBER140-4 Connection Set

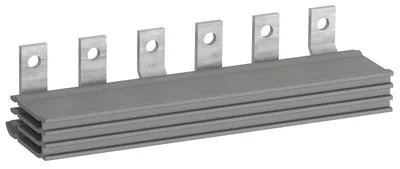

Available on requestBEP140-30 Connection SetAvailable on requestBEP140-40 Connection Set
Available on requestBEM110-30 Connection Set

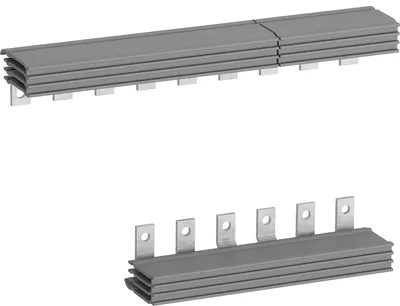

Available on requestBEY140-4 Connection Set
