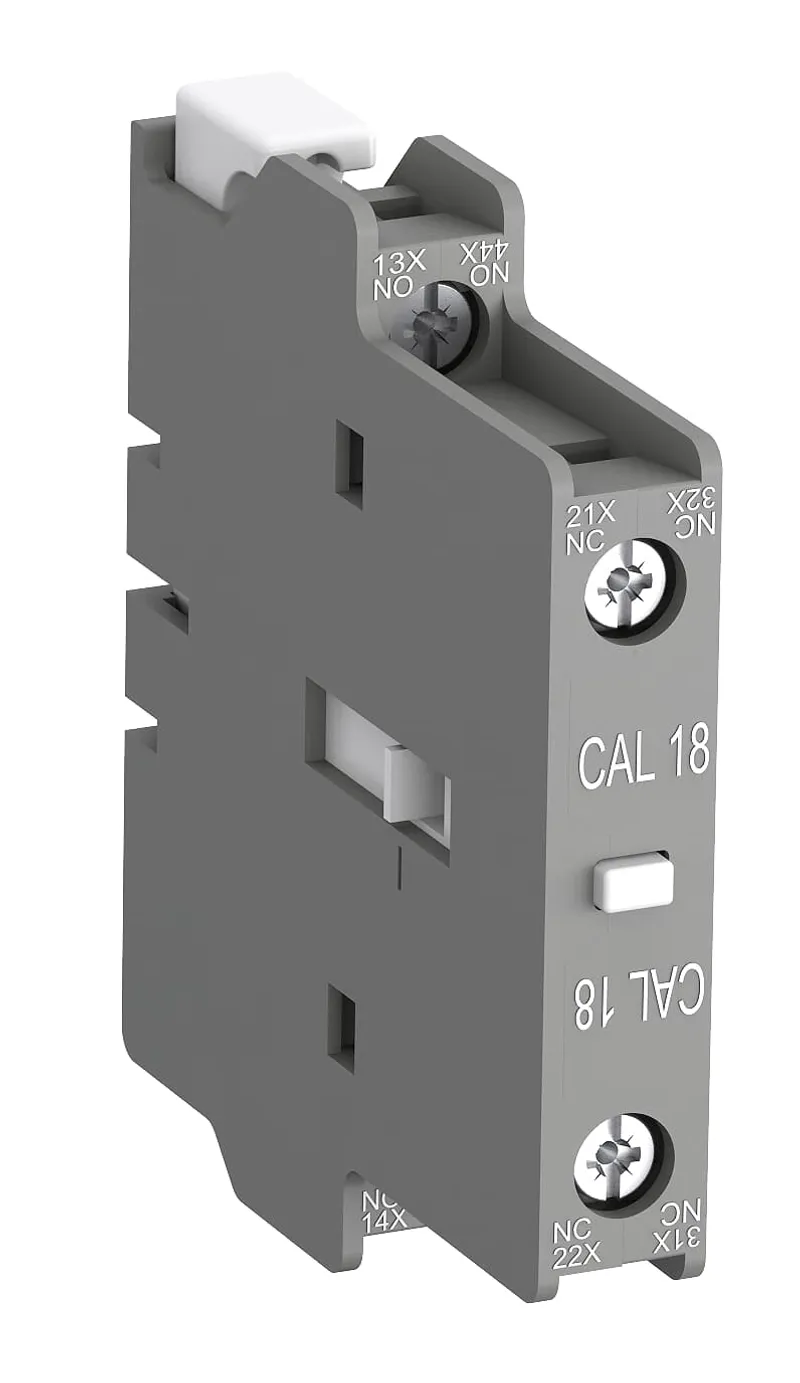

ABB 1SFN010729R3311
CAL18-11B-RT Auxiliary Contact Block
- MPN
- 1SFN010729R3311
- EAN
- 7320500562819
- Category
- ABB Block Contactors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB 1SFN010729R3311?
2 pole ring tongue screw type side mounted auxilliary contact block fitted outside CAL18-11B(-RT), instantaneous N.O. and N.C. contacts, suitable for standard industrial environments
Specifications
General
| Order code (ABB product ID) | 1SFN010729R3311 |
| Type | CAL18-11B-RT |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
Dimensions
| Product Net Width | 64.5 mm |
| Product Net Depth / Length | 17.1 mm |
| Product Net Height | 74 mm |
| Product Net Weight | 0.04 kg |
Technical
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Auxiliary Circuit 24 ... 690 V |
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 1x 0.75 ... 2.5 mm², Solid 2x 1 ... 4 mm², Stranded 2x 1 ... 4 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Auxiliary Circuit 1 x 5.5, Auxiliary Circuit Pozidriv 2 |
| Tightening Torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Ring-Tongue Terminals |
| Suitable For | AF400B, AF460B, AF580B, AF750B, AF1250B, AF1350B, AF1650B, AF2050, AF2650B, AF2850B |
| Suitable for Product Class | Block Contactors |
| Product Name | Auxiliary Contact Block |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
No matching specifications
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (8)
- REACH Declaration (2CMT2021-006202)
- RoHS Declaration (2CMT2021-006277)
- CQC Certificate (CQC2003010304088244)
- cUL Certificate (20120925-E36588)
- Declaration of Conformity - CCC (2020980304001307)
- Declaration of Conformity - CE (2CMT2015-005448)
- Declaration of Conformity - UKCA (2CMT2020-006119)
- UL Certificate (20160916E76003)
