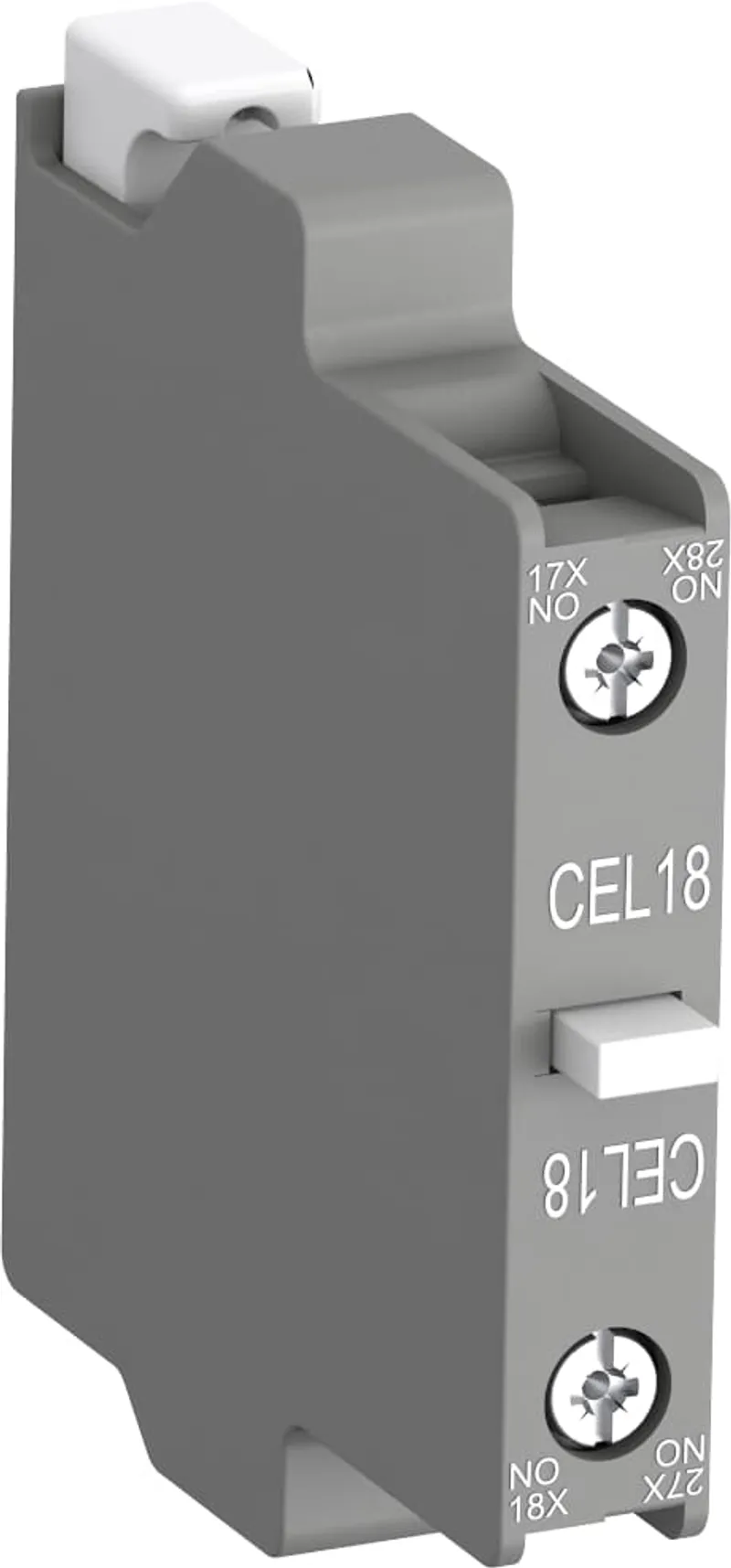

ABB 1SFN010716R1001 – CEL18-01 Auxiliary Contact Block

MPN: 1SFN010716R1001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg
UPC / EAN	7320500258606

Shipping & availability

When can 1SFN010716R1001 be shipped?

1SFN010716R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFN010716R1001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFN010716R1001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN010716R1001, subject to availability and destination.

1 pole screw type side mounted low energy auxilliary contact block, instantaneous N.C. contact, suitable for use with PLC

Specifications

General

Order code (ABB product ID)	1SFN010716R1001
Type	CEL18-01
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85369010

Dimensions

Product Net Width	65 mm
Product Net Depth / Length	12 mm
Product Net Height	74 mm
Product Net Weight	0.04 kg

Technical

Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	1
Rated Operational Voltage	Auxiliary Circuit 125 V
Power Loss	at Rated Operating Conditions per Pole 0.15 W
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1x 0.75 ... 2.5 mm², Flexible with Ferrule 2x 0.75 ... 2.5 mm², Rigid 1 x 1 ... 4 mm², Rigid 2 x 1 ... 4 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm
Degree of Protection	IP20
Recommended Screw Driver	Auxiliary Circuit 1 x 5.5, Auxiliary Circuit Pozidriv 2
Tightening Torque	Auxiliary Circuit 1 N·m
Terminal Type	Screw Terminals
Suitable For	AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF2850, GAF185, GAF300, GAF460, GAF750, GAF1250, GAF1650, GAF2050, A95, A110, A145, A185, A210, A260, A300, UA95, UA110, AF95, AF110, AF145, AF185, AF210, AF260, AF300
Suitable for Product Class	Block Contactors
Product Name	Auxiliary Contact Block

Material Compliance

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121522
IDEA Granular Category Code (IGCC)	4743 >> Auxiliary contact block

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SFC101009M5501)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (7)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
CQC Certificate (CQC2016010304912317)
cUL Certificate (20120925-E36588)
Declaration of Conformity - CCC (2020980304001268)
Declaration of Conformity - CE (2CMT2015-005448)
Declaration of Conformity - UKCA (2CMT2020-006119)
