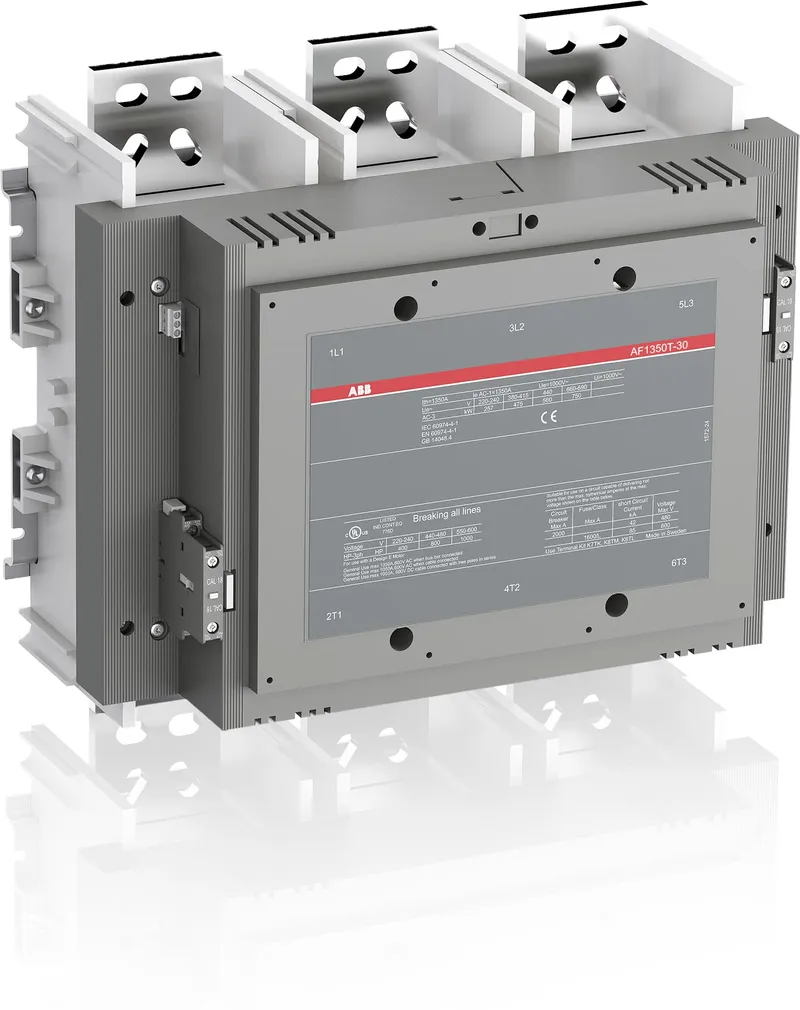

AF1350T-30-11 230-240V 50/60Hz Contactor — photo 1 of 2

AF1350T-30-11 230-240V 50/60Hz Contactor — photo 2 of 2

Available on request

ABB 1SFL657001R9101 – AF1350T-30-11 230-240V 50/60Hz Contactor

MPN: 1SFL657001R9101 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	32 kg
UPC / EAN	7320500382073

Shipping & availability

When can 1SFL657001R9101 be shipped?

1SFL657001R9101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL657001R9101 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL657001R9101 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL657001R9101, subject to availability and destination.

The AF1350T-30-22 230-240V 50/60Hz is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (230-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

General

Order code (ABB product ID)	1SFL657001R9101
Type	AF1350T-30-11 230-240V 50/60Hz
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	438 mm
Product Net Depth / Length	244 mm
Product Net Height	392 mm
Product Net Weight	32 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	2
Number of Auxiliary Contacts NC	2
Number of Poles	3P
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1350 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(1000 V) 40 °C 1350 A, (1000 V) 55 °C 1150 A, (1000 V) 70 °C 1000 A, (690 V) 40 °C 1350 A, (690 V) 55 °C 1150 A, (690 V) 70 °C 1000 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 860 A, (440 V) 55 °C 860 A, (500 V) 55 °C 800 A, (690 V) 55 °C 800 A, (1000 V) 55 °C 375 A, (380 / 400 V) 55 °C 860 A, (220 / 230 / 240 V) 55 °C 860 A
Rated Operational Current DC-1 (I<sub>e</sub>)	(220 V) 3 Poles in Series, 40 °C 1350 A, (600 V) 3 Poles in Series, 40 °C 1350 A, (850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Current DC-3 (I<sub>e</sub>)	(220 V) 3 Poles in Series, 40 °C 1350 A, (600 V) 3 Poles in Series, 40 °C 1350 A, (850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Current DC-5 (I<sub>e</sub>)	(220 V) 3 Poles in Series, 40 °C 1350 A, (600 V) 3 Poles in Series, 40 °C 1350 A, (850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 500 kW, (440 V) 560 kW, (500 V) 560 kW, (690 V) 800 kW, (1000 V) 560 kW, (380 / 400 V) 475 kW, (220 / 230 / 240 V) 257 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 8000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 4500 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 10000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 6000 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 10000 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 8 kV
Maximum Electrical Switching Frequency	(AC-1) 60 cycles per hour, (AC-2 / AC-4) 60 cycles per hour, (AC-3) 60 cycles per hour
Mechanical Durability	0.5 million
Maximum Mechanical Switching Frequency	60 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 230 ... 240 V, 60 Hz 230 ... 240 V, DC Operation 230 ... 240 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 79.5 V·A, Holding at Max. Rated Control Circuit Voltage 50 Hz 15.5 W, Holding at Max. Rated Control Circuit Voltage 60 Hz 79.5 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 15.5 W, Holding at Max. Rated Control Circuit Voltage DC 14.8 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2825 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2825 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 3024 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 3024 W
Power Loss	at Rated Operating Conditions AC-1 per Pole 98 W, at Rated Operating Conditions AC-3 per Pole 40 W
Operate Time	Between Coil De-energization and NC Contact Closing 35 ... 55 ms, Between Coil De-energization and NO Contact Opening 35 ... 55 ms, Between Coil Energization and NC Contact Opening 50 ... 80 ms, Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit	Bar 100 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm²
Connecting Capacity	Bar 100 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Connecting Terminals (delivered in open position) Main Poles	M 3.5 (+,-) pozidriv 2 screw with cable clamp
Recommended Screw Driver	Main Circuit M12, Control Circuit Pozidriv 2, Control Circuit M3.5
Tightening Torque	Cable Lug 45 N·m, Main Circuit 45 N·m
Terminal Type	Main Circuit: Bars
Suitable for Product Class	Block ContactorsBlock Contactors
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 1000 V
General Use Rating UL/CSA	(1000 V AC) 1350 A, (600 V AC) 1350 A
Horsepower Rating UL/CSA	(220 ... 240 V AC) Three Phase 400 Hp, (220 ... 240 V AC) Three Phase 400, (440 ... 480 V AC) Three Phase 800 Hp, (440 ... 480 V AC) Three Phase 800 hp, (550 ... 600 V AC) Three Phase 1000 Hp, (550 ... 600 V AC) Three Phase 1000 hp
Full Load Amps Motor Use	(440 ... 480 V AC) Three Phase 954 A, (550 ... 600 V AC) Three Phase 944 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C, Operation -40 ... 70 °C, Storage -40 ... +70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
Extended Product Lifetime	Product Durability is Enhanced
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 71.3 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors
