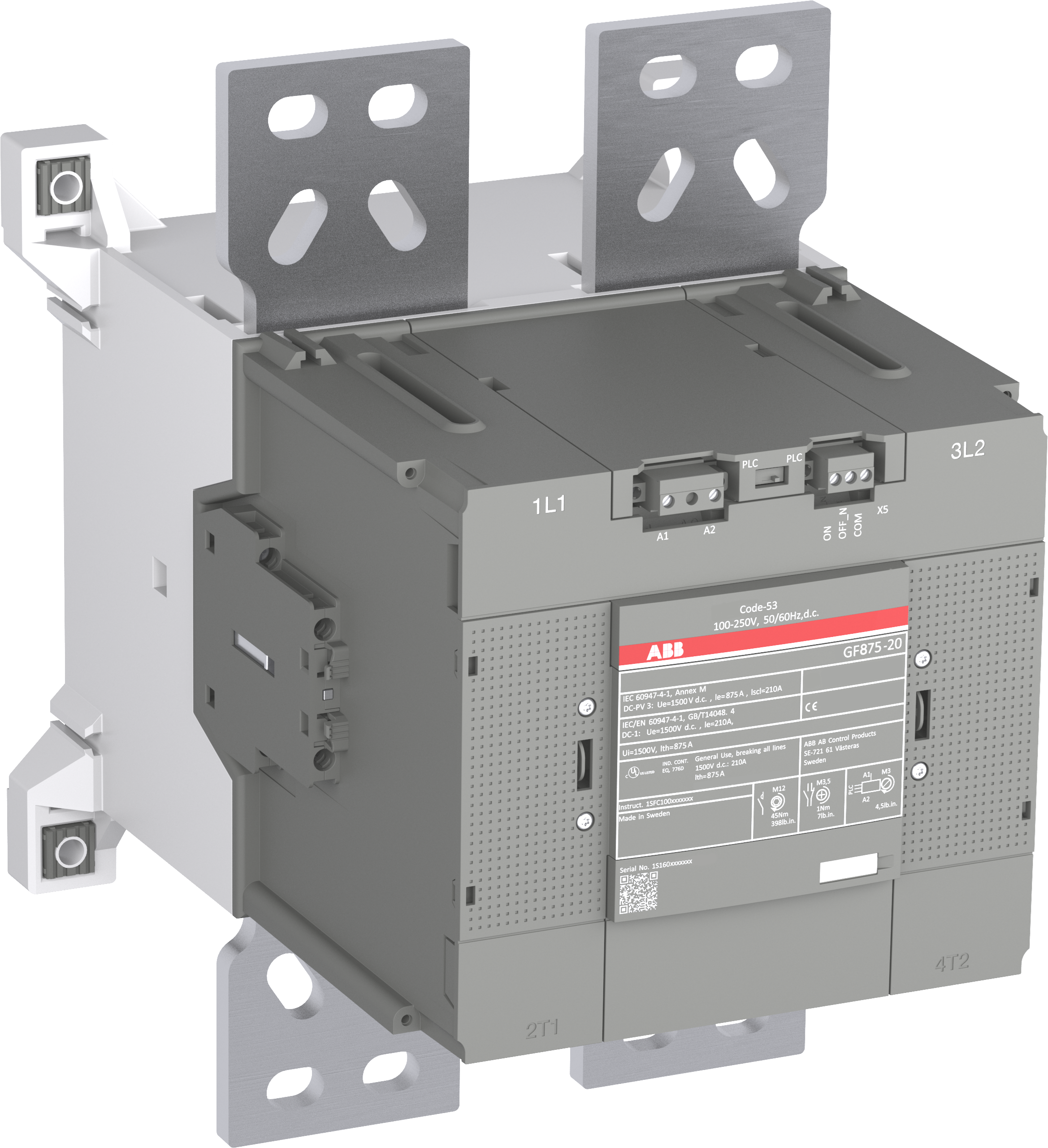

ABB 1SFL617731R5322 – GF875-20-22-53 Contactor

MPN: 1SFL617731R5322 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	14.3 kg
UPC / EAN	7320500541241

Shipping & availability

When can 1SFL617731R5322 be shipped?

1SFL617731R5322 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL617731R5322 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL617731R5322 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL617731R5322, subject to availability and destination.

A 2-phase Contactor suitable for PV solar power applications up to max 1500V DC. Operated with wide voltage range 100-250V AC 50/60Hz and DC

Specifications

General

Order code (ABB product ID)	1SFL617731R5322
Type	GF875-20-22-53
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	8536490099

Dimensions

Product Net Width	253 mm
Product Net Depth / Length	300 mm
Product Net Height	355 mm
Product Net Weight	14.3 kg

Technical

Number of Main Contacts NO	2
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	2
Number of Auxiliary Contacts NC	2
Number of Poles	2P
Rated Operational Voltage	Main Circuit 1500 V
Rated Frequency (f)	Control Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 900 A, acc. to IEC 60947-4-1, Open Contactors Θ = 60 °C 875 A, acc. to IEC 60947-4-1, Open Contactors Θ = 70 °C 650 A
Rated Operational Current DC-1 (I<sub>e</sub>)	(1500 V DC) 2-Pole, 40 °C 210 A
Rated Operational Current DC-PV3 (<span>I</span><sub>e</sub>)	(1500 V DC) 2-Pole, 60 °C 875 A, (1500 V DC) 2-Pole, 70 °C 650 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 5184 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1139 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3109 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 6218 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4150 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1500 V, acc. to UL/CSA 1500 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 8 kV
Maximum Electrical Switching Frequency	15 cycles per hour
Mechanical Durability	0.05 million
Maximum Mechanical Switching Frequency	60 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 100...250 V, 60 Hz 100...250 V, DC Operation 100...250 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 19.5 V·A, Holding at Max. Rated Control Circuit Voltage 50 Hz 4.1 W, Holding at Max. Rated Control Circuit Voltage 60 Hz 19.5 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 4.1 W, Holding at Max. Rated Control Circuit Voltage DC 4.3 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 662 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 662 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 819 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 819 W
Operate Time	Between Coil De-energization and NO Contact Opening 33...70 ms, Between Coil Energization and NO Contact Closing 50...120 ms
Connecting Capacity Main Circuit	Solid 600 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2x1 ... 4 mm², Stranded 2x1 ... 4 mm²
Connecting Capacity	Solid 600 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA

Main Circuit 1500 V

Environmental

Ambient Air Temperature	Operation -40 ... 70 °C, Storage -40 ... +70 °C
Maximum Operating Altitude Permissible	Without Derating 2000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 71.2 %

External Classifications and Standards

ETIM 7	EC002552 - Power contactor, DC switching
ETIM 8	EC002552 - Power contactor, DC switching
ETIM 9	EC002552 - Power contactor, DC switching
eClass	V11.0 : 27371018
UNSPSC	39121529
E-Number (Norway)	4115801
