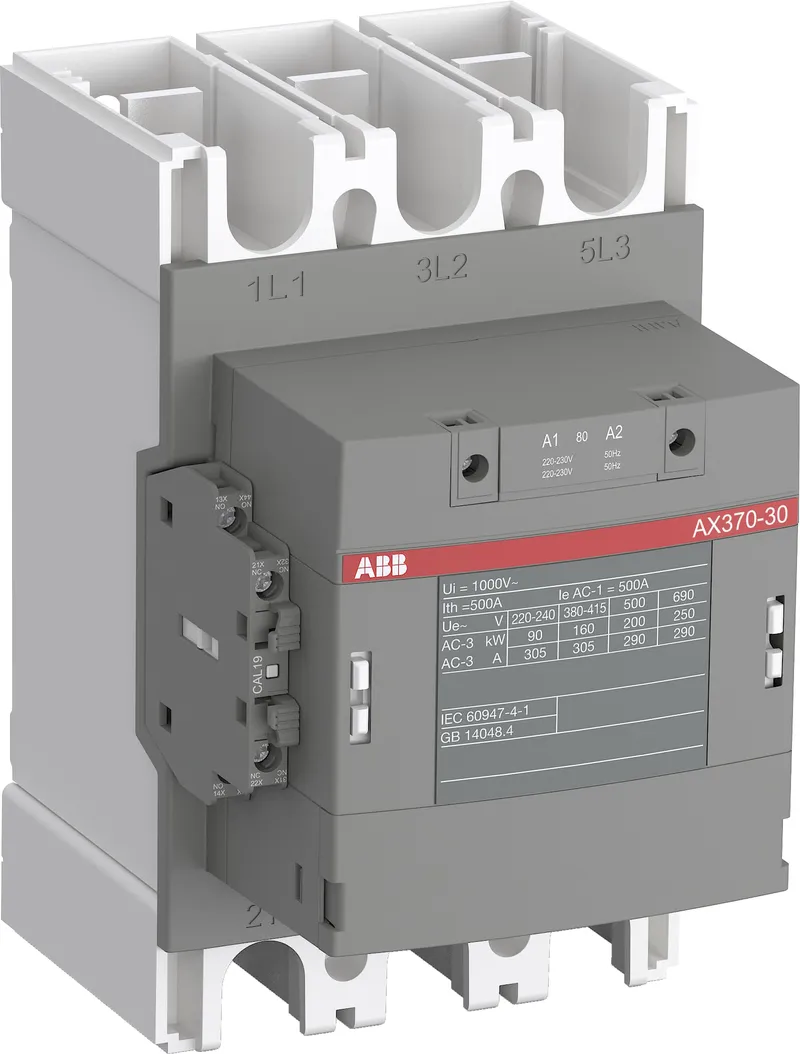

ABB 1SFL607074R8411 – AX370-30-11-84 Contactor

MPN: 1SFL607074R8411 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AX Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	4.7 kg
Country of origin	India
UPC / EAN	7320500514559

Shipping & availability

When can 1SFL607074R8411 be shipped?

1SFL607074R8411 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL607074R8411 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL607074R8411 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL607074R8411, subject to availability and destination.

AX370-30-11-84 Contactor

Specifications

General

Order code (ABB product ID)	1SFL607074R8411
Type	AX370-30-11-84
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	140 mm
Product Net Depth / Length	180 mm
Product Net Height	225 mm
Product Net Weight	4.7 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	3P
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 50 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 600 A, (690 V) 55 °C 500 A, (690 V) 70 °C 400 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 370 A, (440 V) 55 °C 370 A, (500 V) 55 °C 315 A, (690 V) 55 °C 315 A, (380 / 400 V) 55 °C 370 A, (220 / 230 / 240 V) 55 °C 370 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 200 kW, (440 V) 200 kW, (500 V) 250 kW, (690 V) 315 kW, (380 / 400 V) 200 kW, (220 / 230 / 240 V) 110 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	8 kV
Maximum Electrical Switching Frequency	300 cycles per hour
Mechanical Durability	5 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 110 V, 60 Hz 110 ... 120 V
Power Loss	at Rated Operating Conditions per Pole 27 W
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	5ddc30d6-333f-40f4-a1e6-ff9c1979d781 China
Simplified SCIP	2e89f3a8-0214-48de-9b24-e81e5f1ebe44 Denmark, 3b99126a-810e-4221-945b-83a1e71749dc Belgium, 3e86e1f5-83aa-49a4-811a-6357151f57e5 Hungary, 70604091-1711-4ab2-947f-9b2b7479637e Czechia, 77aabc3a-d1e7-47e9-a180-a7bd7f0c0eb5 Croatia, 7a4bc8ed-60da-41fc-933c-5311bd12545c Portugal, 8ea222f3-6fc9-47a6-88d9-a592da0cb810 Poland, 8ed0e213-1c76-45e7-9357-5c21cbc28a9b Sweden, 8f98f39c-de20-436b-b037-0bbec65624f5 Germany, a7d7ef5f-418a-4ff5-b81c-27e864ff3463 Greece, ab7ac102-f0f1-49d0-8d01-7294c8935355 France, ac970263-5335-4e5d-b69e-4c4dc9dcc5e0 Romania, adefa086-d67f-4b29-9f02-2b3dc42ecccd Spain, ae79780c-2bae-4d72-85e7-e5658d2e1852 Norway, c8d71973-1382-479b-9b0f-e25d39d881af Finland, c8d9f530-4d83-47fb-a2cd-ba6cae458611 Netherlands, d4590d85-113a-48b8-8756-0930451b0c39 Bulgaria, f62d8251-a12f-4bf8-8389-14709e21e557 Estonia
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (6)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
CQC Certificate (CQC2013010304660061)
Declaration of Conformity - CCC (2020980304001062)
Declaration of Conformity - CE (2CMT2015-005443)
UL Certificate (20121217-E36588)
