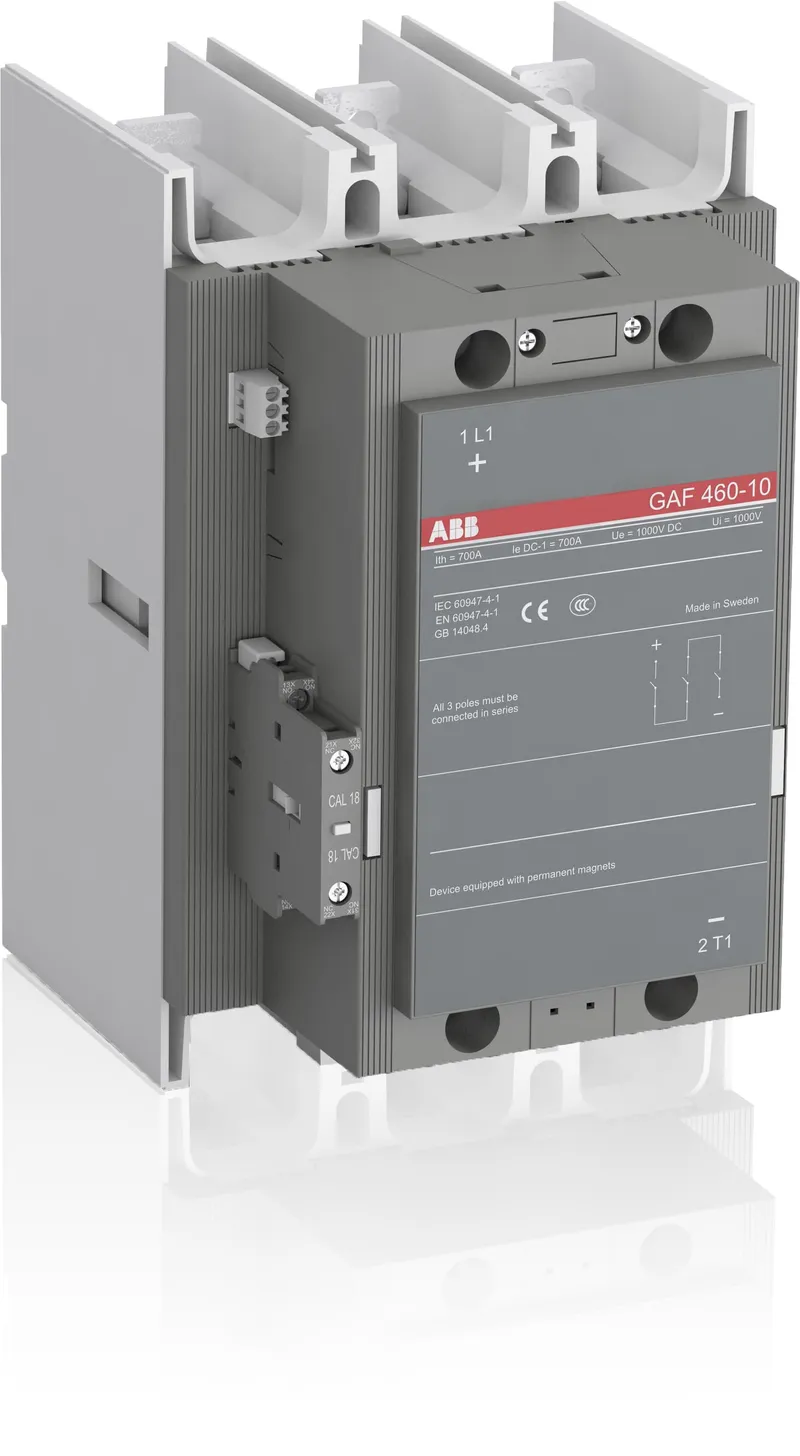

ABB 1SFL597025R6811 – GAF460-10-11 24-60V DC Contactor

MPN: 1SFL597025R6811 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB DC Switching Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	10.6 kg
Country of origin	India
UPC / EAN	7320500383995

Shipping & availability

When can 1SFL597025R6811 be shipped?

1SFL597025R6811 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL597025R6811 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL597025R6811 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL597025R6811, subject to availability and destination.

A 3-pole Contactor suitable for DC-1 applications where all three poles must be connected in series in a 1-pole configuration up to max 1000 VDC. Operated with wide control voltage range 24-60 V, DC

Specifications

General

Order code (ABB product ID)	1SFL597025R6811
Type	GAF460-10-11-68
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	186 mm
Product Net Depth / Length	216 mm
Product Net Height	278 mm
Product Net Weight	10.6 kg

Technical

Number of Main Contacts NO	1
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	1P
Rated Operational Voltage	Main Circuit 1000 V
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 700 A
Rated Operational Current DC-1 (I<sub>e</sub>)	(1000 V) 3 Poles in Series, 40 °C 700 A, (1000 V) 3 Poles in Series, 55 °C 600 A, (1000 V) 3 Poles in Series, 70 °C 480 A, (220 V) 3 Poles in Series, 40 °C 700 A, (220 V) 3 Poles in Series, 55 °C 600 A, (220 V) 3 Poles in Series, 70 °C 480 A, (400 V) 3 Poles in Series, 40 °C 700 A, (400 V) 3 Poles in Series, 55 °C 600 A, (400 V) 3 Poles in Series, 70 °C 480 A, (600 V) 3 Poles in Series, 40 °C 700 A, (600 V) 3 Poles in Series, 55 °C 600 A, (600 V) 3 Poles in Series, 70 °C 480 A
Short-Circuit Protective Devices	gG Type Fuses 800 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 8 kV
Mechanical Durability	3 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 24 ... 60 V, DC Operation 24 ... 60 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage DC 4.3 W, Pull-in at Max. Rated Control Circuit Voltage DC 1313 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 1313 W
Power Loss	at Rated Operating Conditions per Pole 42 W
Connecting Capacity Main Circuit	Bar 47 mm², Rigid Al-Cable 2x240 mm², Rigid Cu-Cable 240 mm², Rigid Cu-Cable 2x240 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm²
Connecting Capacity	Bar 47 mm², Rigid Al-Cable 2x240 mm², Rigid Cu-Cable 2x240 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Connecting Terminals (delivered in open position) Main Poles	M 3.5 (+,-) pozidriv 2 screw with cable clamp
Recommended Screw Driver	Main Circuit M10, Control Circuit Pozidriv 2, Control Circuit M3.5
Tightening Torque	Cable Lug 35 N·m, Main Circuit 35 N·m
Terminal Type	Main Circuit: Bars
Suitable for Product Class	Block ContactorsBlock Contactors
Product Name	Block Contactor

Technical UL/CSA

Horsepower Rating NEMA	(200 V AC) Three Phase 150 Hp, (230 V AC) Three Phase 200 Hp, (460 V AC) Three Phase 400 Hp
Maximum Operating Voltage UL/CSA	Main Circuit 1000 V
General Use Rating UL/CSA	(1000 V DC) 650 A, (440 V DC) 650 A, (600 V AC) 650 A, (600 V DC) 650 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C, Operation -40 ... 70 °C, Storage -40 ... +70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Shock Direction: A 5 g, Shock Direction: B1 5 g, Shock Direction: B2 5 g, Shock Direction: C1 5 g, Shock Direction: C2 5 g

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB Site Meeting Group Waste To Landfill Target	Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 63.1 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC002552 - Power contactor, DC switching
ETIM 8	EC002552 - Power contactor, DC switching
ETIM 9	EC002552 - Power contactor, DC switching
eClass	V11.0 : 27371018
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4763 >> Power contactor, DC switching

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (Part 2) (1SAC200017M0002)
Instructions and Manuals (1SFC101045M9701)
Dimension Diagram (53540919-59)
End Of Life Disassembling Instructions (1SFC100112M0003)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (7)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Environmental Product Declaration - EPD (1SFC100105D0201)
CQC Certificate (CQC2012010304547008)
cULus Certificate (20130517-E73397)
Declaration of Conformity - CE (2CMT003517)
Declaration of Conformity - UKCA (2CMT2020-006118)
