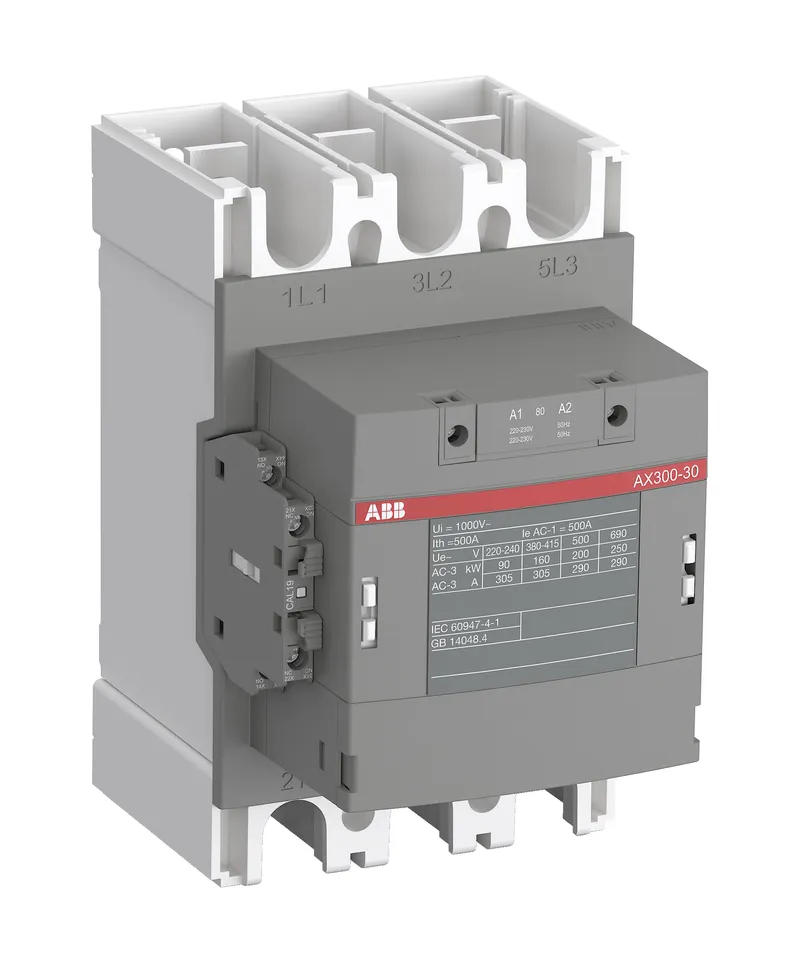

ABB 1SFL587074R8611

AX300-30-11-86 Contactor

MPN
1SFL587074R8611
EAN
7320500514603
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SFL587074R8611?

AX300-30-11-86 Contactor

Specifications

General

Order code (ABB product ID)1SFL587074R8611
TypeAX300-30-11-86
LifecycleActive (current ABB product)
Country of originIndia

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85364900

Dimensions

Product Net Width140 mm
Product Net Depth / Length180 mm
Product Net Height225 mm
Product Net Weight4.7 kg

Technical

Number of Main Contacts NO3
Number of Main Contacts NC0
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC1
Number of Poles3P
Rated Operational VoltageMain Circuit 1000 V
Rated Frequency (f)Main Circuit 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (I<sub>e</sub>)(690 V) 40 °C 500 A, (690 V) 55 °C 400 A, (690 V) 70 °C 325 A
Rated Operational Current AC-3 (I<sub>e</sub>)(415 V) 55 °C 305 A, (440 V) 55 °C 305 A, (500 V) 55 °C 290 A, (690 V) 55 °C 290 A, (380 / 400 V) 55 °C 305 A, (220 / 230 / 240 V) 55 °C 305 A
Rated Operational Power AC-3 (P<sub>e</sub>)(415 V) 160 kW, (440 V) 160 kW, (500 V) 200 kW, (690 V) 250 kW, (380 / 400 V) 160 kW, (220 / 230 / 240 V) 90 kW
Rated Breaking Capacity AC-38 x Ie AC-3
Rated Making Capacity AC-310 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2440 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 500 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 996 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3050 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1409 A
Rated Insulation Voltage (U<sub>i</sub>)acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)8 kV
Maximum Electrical Switching Frequency300 cycles per hour
Mechanical Durability5 million
Maximum Mechanical Switching Frequency300 cycles per hour
Coil Operating Limits(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)50 Hz 400 ... 415 V, 60 Hz 415 ... 440 V
Power Lossat Rated Operating Conditions per Pole 19 W
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal TypeMain Circuit: Bars
Product NameBlock Contactor

Environmental

Ambient Air TemperatureClose to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude PermissibleWithout Derating 3000 m

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP97253eba-b4e0-4898-a165-0ded3c0309aa China
Simplified SCIP014105fa-3b68-497f-a04b-9eb81c1a6e36 Bulgaria, 03ed9000-769b-4438-8392-0a24ad798007 Sweden, 05ba0500-9dc5-4d9c-86c9-a5776b0185b0 Finland, 06bd5341-ccf7-4049-81bd-e7aa61d1c9b8 France, 08a998a1-9952-48b8-8f25-7ac8cd6ded78 Spain, 13b4bb11-3edd-47a3-8538-0e0eaa18a381 Czechia, 17895245-0c45-4750-9452-a7ce943a4a26 Romania, 28341b97-1f0a-42bb-b9b7-110a22cd332b Estonia, 3ffcc048-5dd3-4bd3-9172-737807386ac0 Portugal, 522f4d8b-3a43-4c8d-87eb-63335dbf5cc8 Norway, 5e52c7e2-be6d-485a-acec-6d63f9d9a08d Hungary, 6b148b20-202c-43e0-bc26-0aa78df93f53 Greece, 7322f9e1-31f9-42b9-988c-1a3549967f3a Denmark, c7af7943-79d5-4dd0-b8a1-c05f18eb1e46 Germany, dfcca851-ac37-4b05-928f-fef2ba940af9 Netherlands, dfd7a461-49c4-4068-8e1b-28b15080af5e Croatia, e96f34c4-bf7e-4479-baac-21ddffbe02bf Poland, f5629eeb-6640-45b1-b69f-dd91510bc6a7 Belgium
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeQ
ETIM 7EC000066 - Power contactor, AC switching
ETIM 8EC000066 - Power contactor, AC switching
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39121529
IDEA Granular Category Code (IGCC)4755 >> Contactors

1SFL587074R8611: frequently asked questions

When can 1SFL587074R8611 be shipped?

1SFL587074R8611 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL587074R8611 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL587074R8611 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL587074R8611, subject to availability and destination.
