ABB 1SFL577001R6800 – AF400-30-00-68 Contactor

MPN: 1SFL577001R6800 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	10.6 kg
UPC / EAN	7320500514085

Shipping & availability

When can 1SFL577001R6800 be shipped?

1SFL577001R6800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL577001R6800 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL577001R6800 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL577001R6800, subject to availability and destination.

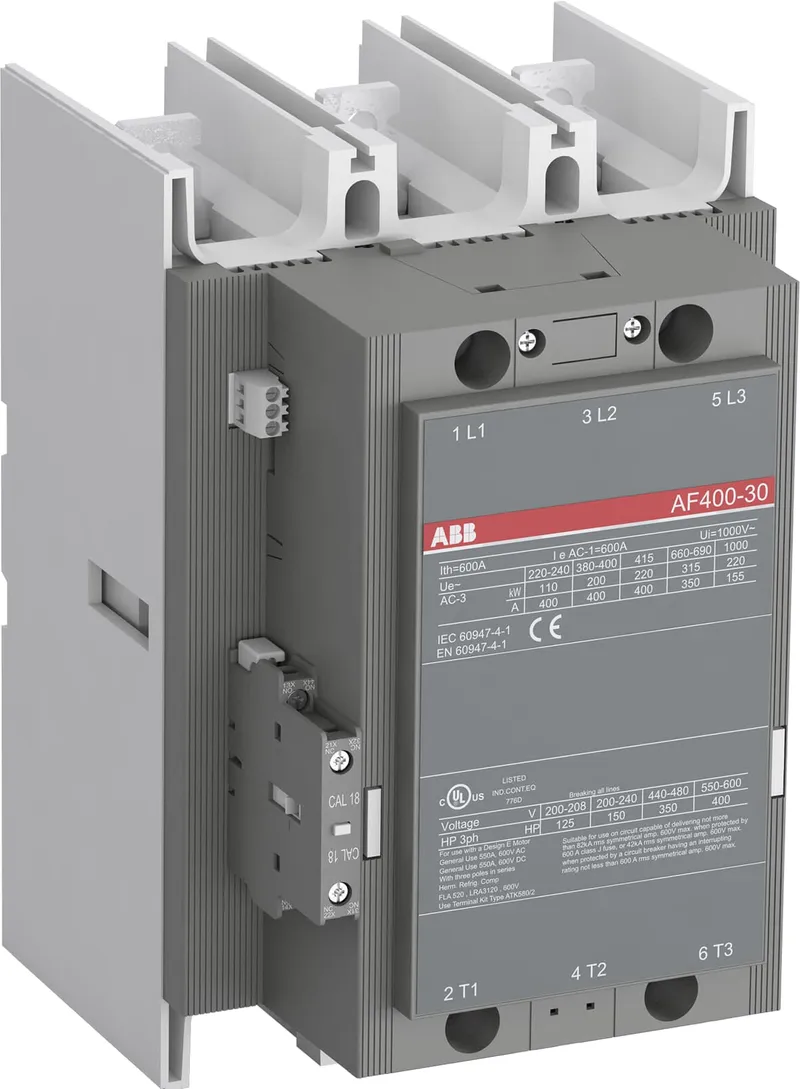

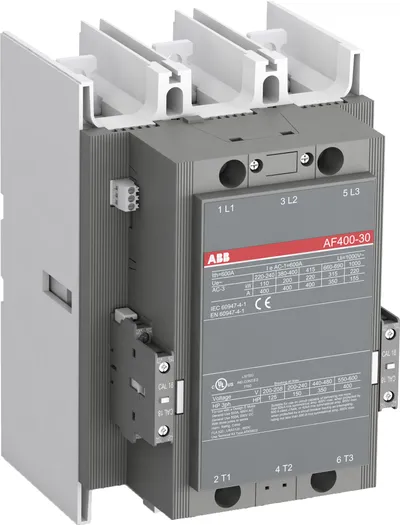

The AF400-30-00-68 is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

General

Order code (ABB product ID)	1SFL577001R6800
Type	AF400-30-00-68
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	186 mm
Product Net Depth / Length	216 mm
Product Net Height	278 mm
Product Net Weight	10.6 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 600 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(1000 V) 40 °C 600 A, (1000 V) 55 °C 500 A, (1000 V) 70 °C 400 A, (690 V) 40 °C 600 A, (690 V) 55 °C 500 A, (690 V) 70 °C 400 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 400 A, (440 V) 55 °C 400 A, (500 V) 55 °C 400 A, (690 V) 55 °C 350 A, (1000 V) 55 °C 155 A, (380 / 400 V) 55 °C 400 A, (220 / 230 / 240 V) 55 °C 400 A
Rated Operational Current DC-1 (I<sub>e</sub>)	(110 V) 1-Pole, 40 °C 600 A, (110 V) 2 Poles in Series, 40 °C 600 A, (220 V) 3 Poles in Series, 40 °C 600 A, (600 V) 3 Poles in Series, 40 °C 600 A
Rated Operational Current DC-3 (I<sub>e</sub>)	(110 V) 1-Pole, 40 °C 600 A, (110 V) 2 Poles in Series, 40 °C 600 A, (220 V) 3 Poles in Series, 40 °C 600 A, (600 V) 3 Poles in Series, 40 °C 600 A
Rated Operational Current DC-5 (I<sub>e</sub>)	(110 V) 1-Pole, 40 °C 600 A, (110 V) 2 Poles in Series, 40 °C 600 A, (220 V) 3 Poles in Series, 40 °C 600 A, (600 V) 3 Poles in Series, 40 °C 600 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 220 kW, (440 V) 220 kW, (500 V) 250 kW, (690 V) 315 kW, (1000 V) 220 kW, (380 / 400 V) 200 kW, (220 / 230 / 240 V) 110 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Short-Circuit Protective Devices	gG Type Fuses 630 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 840 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 3100 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 4600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 2500 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 4000 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3500 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 8 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-2 / AC-4) 60 cycles per hour, (AC-3) 300 cycles per hour
Mechanical Durability	3 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 24 ... 60 V, DC Operation 24 ... 60 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage DC 4.3 W, Pull-in at Max. Rated Control Circuit Voltage DC 1313 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 1313 W
Power Loss	at Rated Operating Conditions AC-1 per Pole 32 W, at Rated Operating Conditions AC-3 per Pole 14 W
Operate Time	Between Coil De-energization and NC Contact Closing 45 ... 55 ms, Between Coil De-energization and NO Contact Opening 48 ... 58 ms, Between Coil Energization and NC Contact Opening 45 ... 115 ms, Between Coil Energization and NO Contact Closing 50 ... 120 ms
Connecting Capacity Main Circuit	Bar 47 mm², Rigid Al-Cable 2x240 mm², Rigid Cu-Cable 2x240 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm²
Connecting Capacity	Bar 47 mm², Rigid Al-Cable 2x240 mm², Rigid Cu-Cable 2x240 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Connecting Terminals (delivered in open position) Main Poles	M 3.5 (+,-) pozidriv 2 screw with cable clamp
Recommended Screw Driver	Main Circuit M10, Control Circuit Pozidriv 2, Control Circuit M3.5
Tightening Torque	Cable Lug 35 N·m, Main Circuit 35 N·m
Terminal Type	Main Circuit: Bars
Suitable for Product Class	Block ContactorsBlock Contactors
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 1000 V
General Use Rating UL/CSA	(1000 V AC) 550 A, (600 V AC) 550 A
Horsepower Rating UL/CSA	(200 ... 208 V AC) Three Phase 125 Hp, (200 ... 208 V AC) Three Phase 125 hp, (200 V AC) Three Phase 125 hp, (208 V AC) Three Phase 125 hp, (220 ... 240 V AC) Three Phase 150 Hp, (220 ... 240 V AC) Three Phase 150, (440 ... 480 V AC) Three Phase 350 Hp, (440 ... 480 V AC) Three Phase 350 hp, (550 ... 600 V AC) Three Phase 400 Hp, (550 ... 600 V AC) Three Phase 400 hp
Full Load Amps Motor Use	(200 ... 208 V AC) Three Phase 358.8 A, (220 ... 240 V AC) Three Phase 360 A, (440 ... 480 V AC) Three Phase 414 A, (550 ... 600 V AC) Three Phase 382 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C, Operation -40 ... 70 °C, Storage -40 ... +70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Shock Direction: A 5 g, Shock Direction: B1 5 g, Shock Direction: B2 5 g, Shock Direction: C1 5 g, Shock Direction: C2 5 g

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
Extended Product Lifetime	Product Durability is Enhanced
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 63.1 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors
