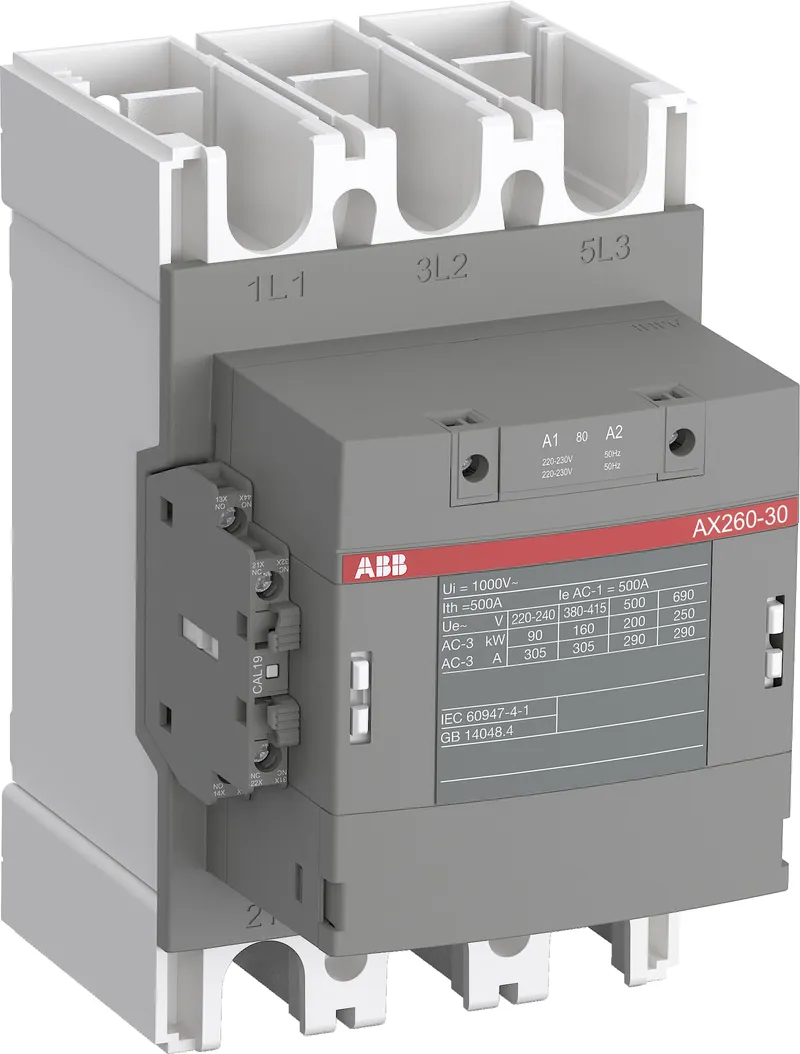

ABB 1SFL547074R8411 – AX260-30-11-84 Contactor

MPN: 1SFL547074R8411 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AX Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	4.7 kg
Country of origin	India
UPC / EAN	7320500514696

Shipping & availability

When can 1SFL547074R8411 be shipped?

1SFL547074R8411 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL547074R8411 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL547074R8411 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL547074R8411, subject to availability and destination.

AX260-30-11-84 Contactor

Specifications

General

Order code (ABB product ID)	1SFL547074R8411
Type	AX260-30-11-84
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	140 mm
Product Net Depth / Length	180 mm
Product Net Height	225 mm
Product Net Weight	4.7 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	3P
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 400 A, (690 V) 55 °C 350 A, (690 V) 70 °C 290 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 265 A, (440 V) 55 °C 265 A, (500 V) 55 °C 250 A, (690 V) 55 °C 250 A, (380 / 400 V) 55 °C 265 A, (220 / 230 / 240 V) 55 °C 265 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 132 kW, (440 V) 160 kW, (500 V) 160 kW, (690 V) 200 kW, (380 / 400 V) 132 kW, (220 / 230 / 240 V) 75 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2120 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 865 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2650 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1224 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	8 kV
Maximum Electrical Switching Frequency	300 cycles per hour
Mechanical Durability	5 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 110 V, 60 Hz 110 ... 120 V
Power Loss	at Rated Operating Conditions per Pole 14 W
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	0bb91190-bc77-423c-89db-18dbea117537 China
Simplified SCIP	05e03cd0-f515-4521-a9bb-c59796b8718e Greece, 123d69c2-e26f-4db2-8e65-a278dc5753c8 Spain, 1931a587-8aa9-4f47-b166-2eb1463fa8f3 Hungary, 1e579dbf-4e8c-4919-a124-1950712bf993 France, 44884673-06f9-4605-96da-c6c64ad0dbdd Belgium, 487e7071-5215-4103-9d6c-8b3e30bd5238 Czechia, 5086a3a8-3cab-4a78-9ac5-bc1341e286ae Croatia, 5ae6ea64-7076-4b4d-9b80-171ac350cdc3 Bulgaria, 5fc525e1-2354-4bb5-b583-bd7c36aacf9d Estonia, 63bfcc50-663e-4dee-93b4-b851bcd3ee68 Portugal, 74c71035-c6ab-4cd0-a3ab-3f5cac444896 Sweden, 7b461a1d-1d78-49d9-b90e-81cdcfdd31d6 Germany, 806d203f-8566-443f-ada5-0bb3ba1e726f Norway, 9e2a4ef6-7e26-4e28-be34-66ac20150994 Finland, a46b9226-d6fd-433c-aa6b-48f313bef8b0 Poland, ac832be1-a5e8-4e78-bca5-58d72c714125 Denmark, b3275ff1-4d6d-4bd4-b1ab-7e7ba80b1bcb Romania, db560523-f43e-41db-b009-3d8b463c1451 Netherlands
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (6)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
CQC Certificate (CQC2013010304660061)
Declaration of Conformity - CCC (2020980304001062)
Declaration of Conformity - CE (2CMT2015-005443)
UL Certificate (20121217-E36588)
