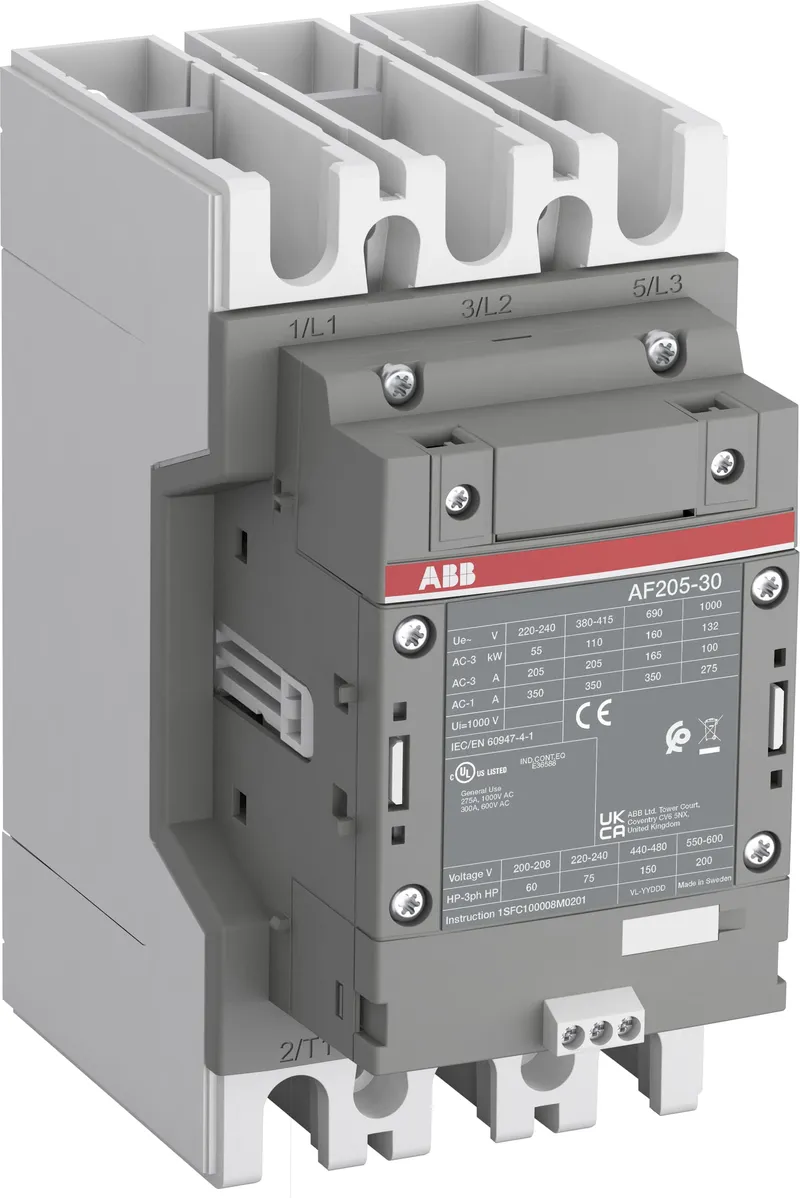

ABB 1SFL527002R3300 – AF205-30-00-33 Contactor

MPN: 1SFL527002R3300 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.4 kg
UPC / EAN	7320500477021

Shipping & availability

When can 1SFL527002R3300 be shipped?

1SFL527002R3300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL527002R3300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL527002R3300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL527002R3300, subject to availability and destination.

The AF205-30-00-33 is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL and switching power circuits up to 350 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.

Specifications

General

Order code (ABB product ID)	1SFL527002R3300
Type	AF205-30-00-33
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	105 mm
Product Net Depth / Length	169.5 mm
Product Net Height	196 mm
Product Net Weight	2.4 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 50 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 350 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(1000 V) 40 °C 275 A, (1000 V) 60 °C 250 A, (1000 V) 70 °C 200 A, (690 V) 40 °C 350 A, (690 V) 60 °C 300 A, (690 V) 70 °C 240 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 60 °C 205 A, (440 V) 60 °C 205 A, (500 V) 60 °C 186 A, (690 V) 60 °C 165 A, (1000 V) 60 °C 100 A, (380 / 400 V) 60 °C 205 A, (220 / 230 / 240 V) 60 °C 205 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 110 kW, (440 V) 132 kW, (500 V) 132 kW, (690 V) 160 kW, (1000 V) 132 kW, (380 / 400 V) 110 kW, (220 / 230 / 240 V) 55 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Short-Circuit Protective Devices	gG Type Fuses 400 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	8 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 300 cycles per hour
Mechanical Durability	5 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 28.1 V·A, Holding at Max. Rated Control Circuit Voltage 50 Hz 2.5 W, Holding at Max. Rated Control Circuit Voltage 60 Hz 28.1 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 2.5 W, Holding at Max. Rated Control Circuit Voltage DC 3.7 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 315 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 315 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 389 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 389 W
Power Loss	at Rated Operating Conditions AC-1 per Pole 15 W, at Rated Operating Conditions AC-3 per Pole 5 W
Operate Time	Between Coil De-energization and NO Contact Opening 37 ... 47 ms, Between Coil Energization and NO Contact Closing 25 ... 55 ms
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 1000 V
General Use Rating UL/CSA	(1000 V AC) 275 A, (600 V AC) 300 A
Horsepower Rating UL/CSA	(200 ... 208 V AC) Three Phase 30 Hp, (200 V AC) Three Phase 60 hp, (208 V AC) Three Phase 60 hp, (220 ... 240 V AC) Three Phase 30 Hp, (220 ... 240 V AC) Three Phase 75, (440 ... 480 V AC) Three Phase 75 Hp, (440 ... 480 V AC) Three Phase 150 hp, (550 ... 600 V AC) Three Phase 100 Hp, (550 ... 600 V AC) Three Phase 200 hp

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4758 >> Iec Contactors
E-Number (Finland)	3707504
