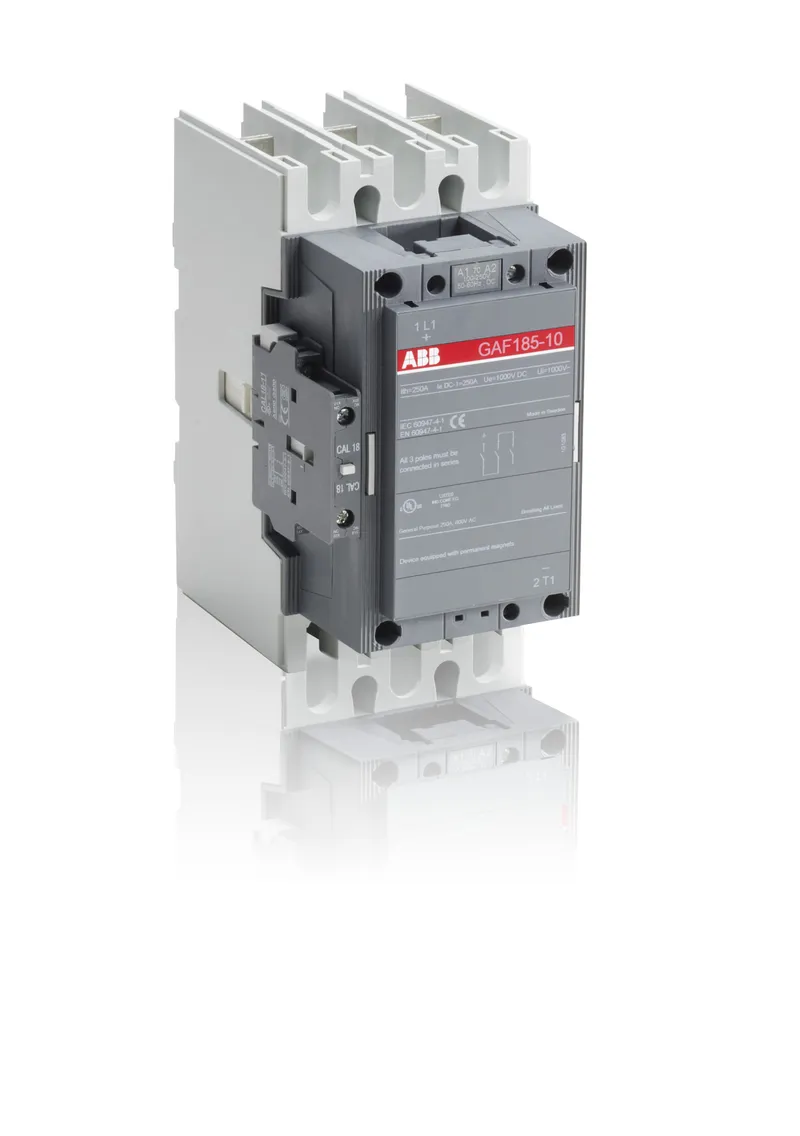

ABB 1SFL497028R6911
GAF185B-10-11RT 48-130V AC/DC Contactor
- MPN
- 1SFL497028R6911
- EAN
- 7320500506943
- Category
- ABB DC Switching Contactors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB 1SFL497028R6911?
A 3-pole contactor suitable for DC Railway applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with 48 ... 130 V, 50Hz/60Hz and DC. Equipped with 1 N.O and 1 N.C. auxiliary contacts and Ring Tounge terminals.
Specifications
General
| Order code (ABB product ID) | 1SFL497028R6911 |
| Type | GAF185B-10-11RT 48-130V |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 111.5 mm |
| Product Net Depth / Length | 160 mm |
| Product Net Height | 196 mm |
| Product Net Weight | 3 kg |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Current DC-1 (I<sub>e</sub>) | (1000 V) 3 Poles in Series, 40 °C 275 A, (1000 V) 3 Poles in Series, 55 °C 250 A, (1000 V) 3 Poles in Series, 70 °C 180 A, (220 V) 3 Poles in Series, 40 °C 275 A, (220 V) 3 Poles in Series, 55 °C 250 A, (220 V) 3 Poles in Series, 70 °C 180 A, (400 V) 3 Poles in Series, 40 °C 275 A, (400 V) 3 Poles in Series, 55 °C 250 A, (400 V) 3 Poles in Series, 70 °C 180 A, (600 V) 3 Poles in Series, 40 °C 275 A, (600 V) 3 Poles in Series, 55 °C 250 A, (600 V) 3 Poles in Series, 70 °C 180 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to UL/CSA 1000 V |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 48 ... 130 V, 60 Hz 48 ... 130 V, DC Operation 48 ... 130 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A, Holding at Max. Rated Control Circuit Voltage DC 2 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 430 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 430 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 500 V·A |
| Power Loss | at Rated Operating Conditions per Pole 16 W |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 1000 V |
| General Use Rating UL/CSA | (1000 V DC) 250 A, (440 V DC) 250 A, (600 V DC) 250 A |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | Q |
| ETIM 7 | EC002552 - Power contactor, DC switching |
| ETIM 8 | EC002552 - Power contactor, DC switching |
| ETIM 9 | EC002552 - Power contactor, DC switching |
| eClass | V11.0 : 27371018 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4763 >> Power contactor, DC switching |
No matching specifications
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
1SFL497028R6911: frequently asked questions
When can 1SFL497028R6911 be shipped?
1SFL497028R6911 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFL497028R6911 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFL497028R6911 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL497028R6911, subject to availability and destination.
