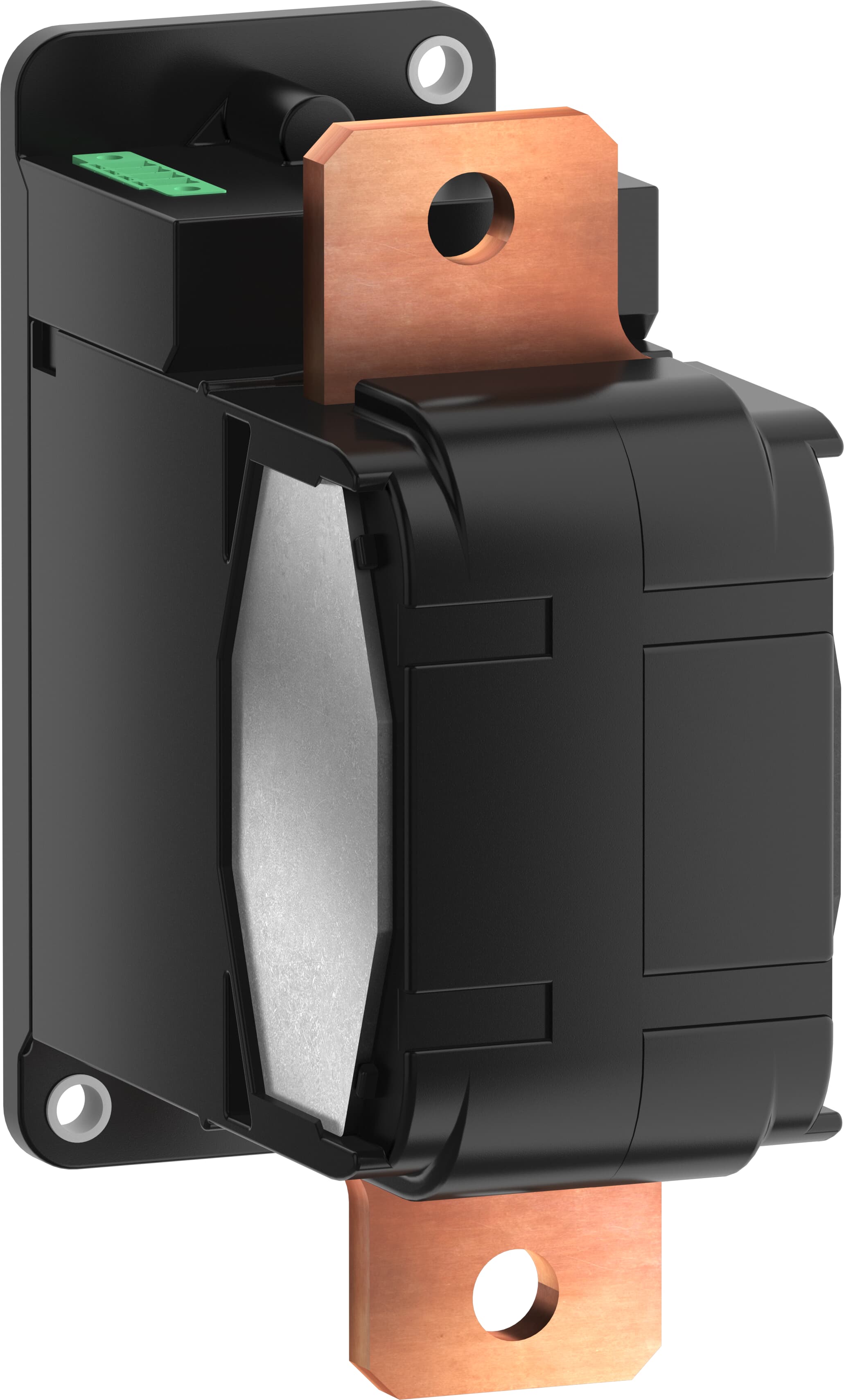

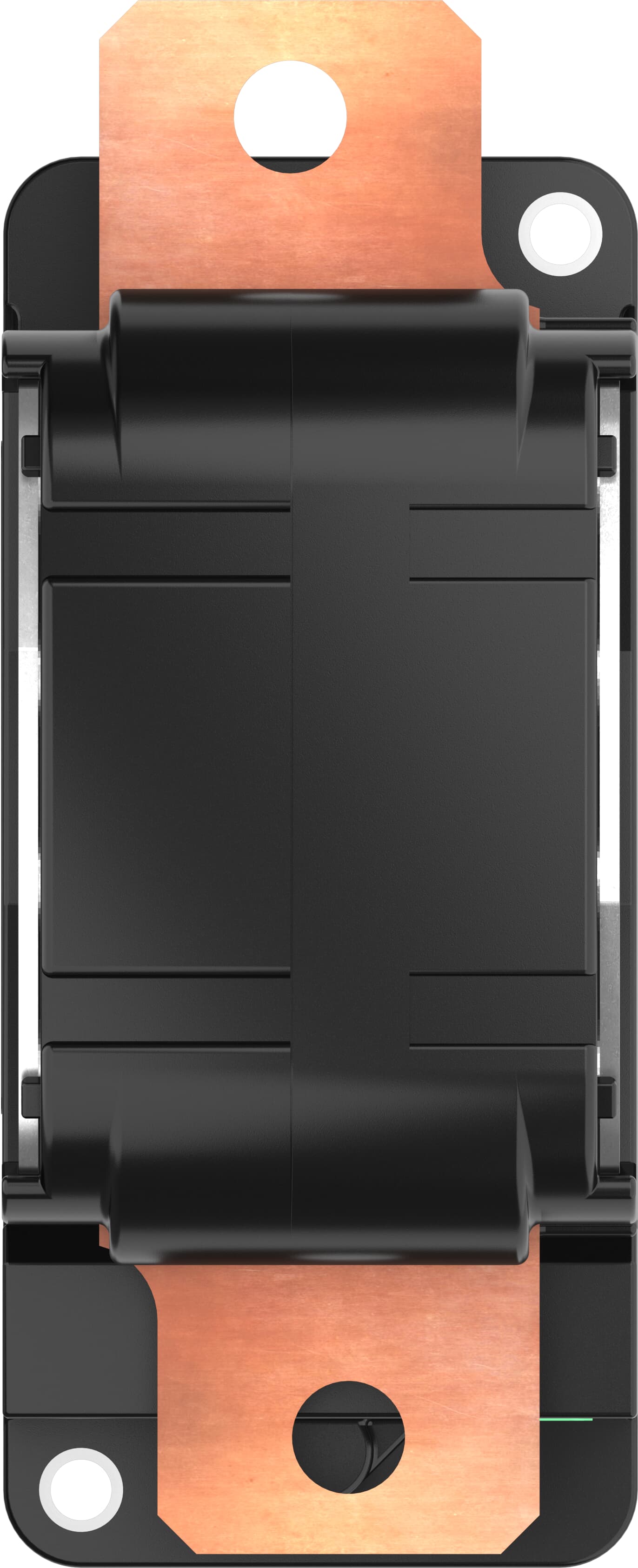

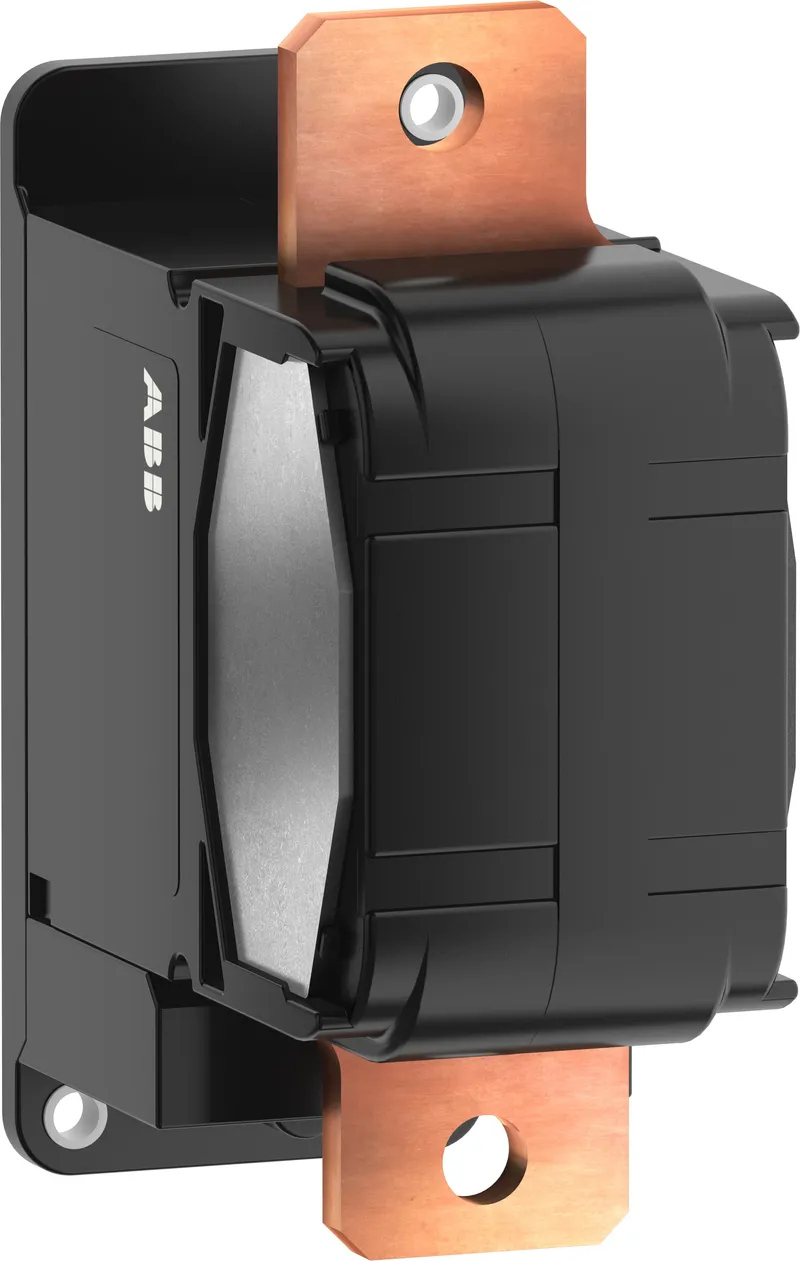

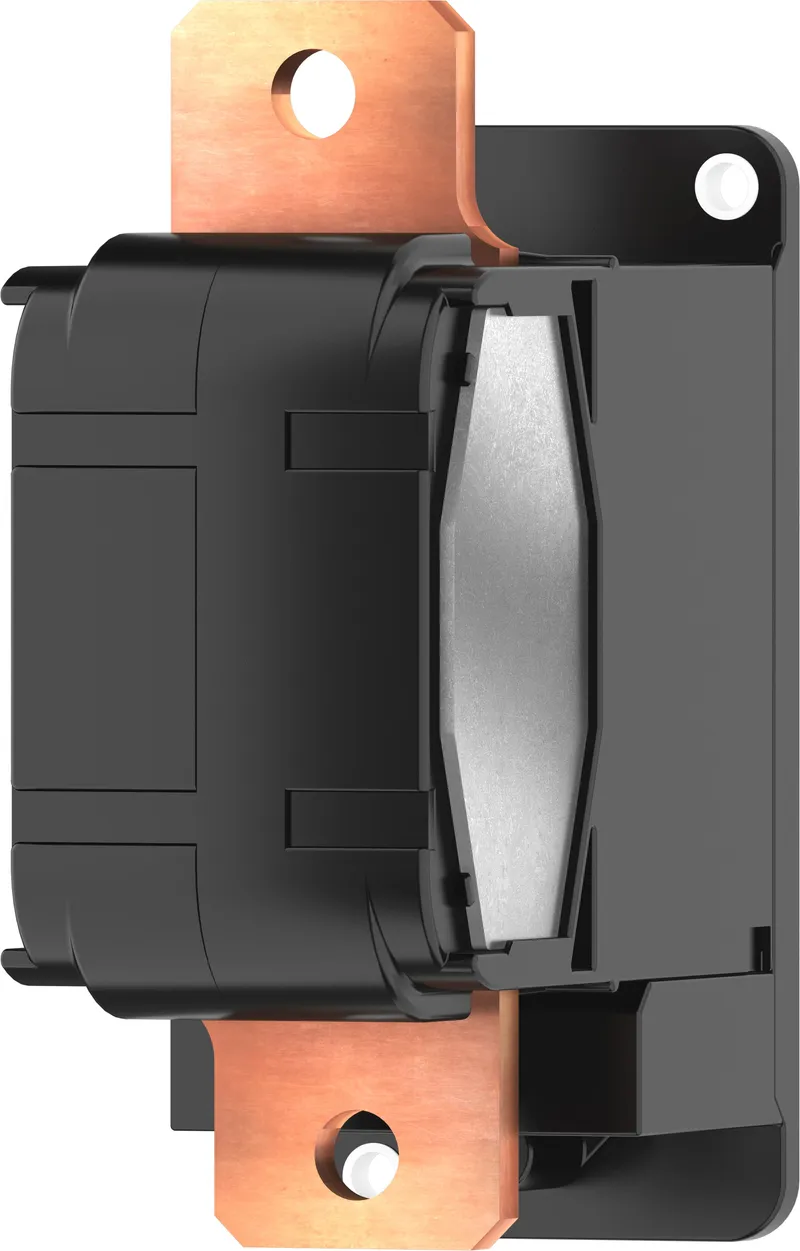

ABB 1SFG581130R2441 – G1S500-24B1-1BA Contactor
MPN: 1SFG581130R2441 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ABB DC Switching Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.75 kg |
| UPC / EAN | 7320500566305 |
Shipping & availability
When can 1SFG581130R2441 be shipped?
1SFG581130R2441 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFG581130R2441 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFG581130R2441 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFG581130R2441, subject to availability and destination.
A single pole Contactor DC switching applications up to max switching voltage 1000V DC. Continous current 500A with control voltage 12…24VDC
Specifications
General
| Order code (ABB product ID) | 1SFG581130R2441 |
| Type | G1S500-24B1-1BA |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 12 piece |
| Customs Tariff Number | 8536490099 |
Dimensions
| Product Net Width | 49 mm |
| Product Net Depth / Length | 109 mm |
| Product Net Height | 91 mm |
| Product Net Weight | 0.75 kg |
Technical
| Number of Main Contacts NO | 1 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 1P |
| Rated Operational Voltage | Main Circuit 1000 V DC |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 500 A |
| Rated Operational Current DC-1 (I<sub>e</sub>) | (1000 V) 1-Pole, 40 °C 10 A |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | 20ms L < 50 µH 6000 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc.to IEC 60947-4-1 at Pollution Degree 2 1500 V, acc.to IEC 60947-4-1 at Pollution Degree 3 1000 V, acc. to UL/CSA 1000 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Main Circuit 10 kV |
| Mechanical Durability | 0.2 million |
| Rated Control Circuit Voltage (U<sub>c</sub>) | DC Operation 12 ... 24 V DC |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage DC 3.5 W, Pull-in at Max. Rated Control Circuit Voltage DC 50 W |
| Mounting by Screws (not supplied) | 2 x M5 Screws with Washers |
| Connecting Capacity Main Circuit | Bar 300 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening Torque | Main Circuit 10...12 N·m |
| Terminal Type | Main Circuit: Bars |
| Product Name | Contactor |
Environmental
| Ambient Air Temperature | Operation -40 ... +85 °C, Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002552 - Power contactor, DC switching |
| ETIM 8 | EC002552 - Power contactor, DC switching |
| ETIM 9 | EC002552 - Power contactor, DC switching |
| eClass | V11.0 : 27371018 |
| UNSPSC | 39121529 |
