ABB 1SFA739001R1001 – EF1250DU-1250 Electronic Overload Relay 375 ... 1250 A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Electronic Overload Relays |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 10 kg |
| Country of origin | Sweden |
| UPC / EAN | 7320500513880 |
Shipping & availability
When can 1SFA739001R1001 be shipped?
1SFA739001R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFA739001R1001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFA739001R1001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFA739001R1001, subject to availability and destination.

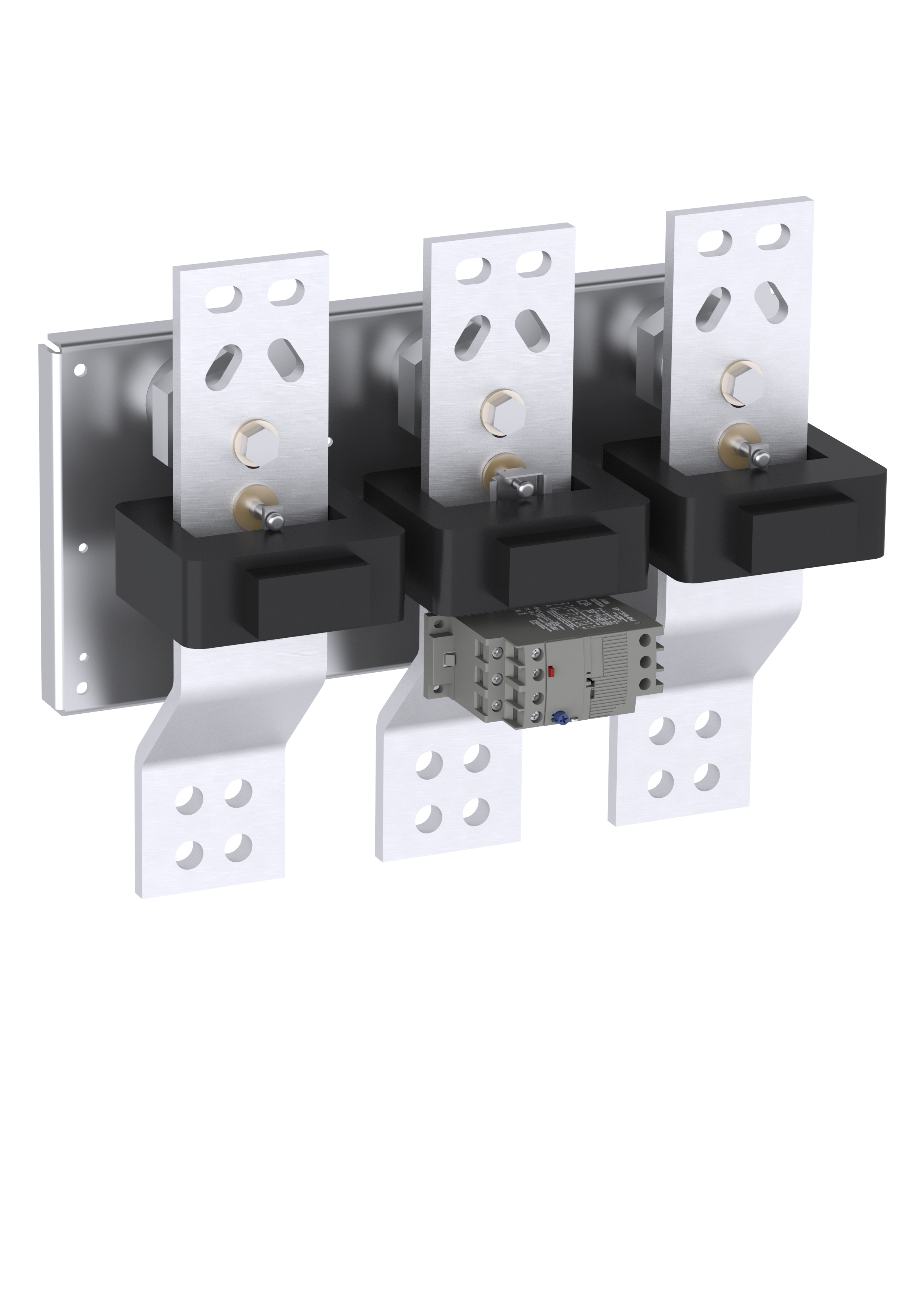

The EF1250DU are self-supplied electronic overload relays, which means no extra external supply is needed. It offers reliable protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (N.C.), signal contact (N.O.), automatic or manual reset selectable, trip-free mechanism, STOP and TEST function and a trip indication. Busbar kits are available as accessory for contactor mounting.
Specifications
General
| Order code (ABB product ID) | 1SFA739001R1001 |
| Type | EF1250DU-1250 |
| Lifecycle | Active (current ABB product) |
| Country of origin | Sweden |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 350 mm |
| Product Net Height | 198 mm |
| Product Net Depth / Length | 425 mm |
| Product Net Weight | 10 kg |
Technical
| Setting Range | 375 ... 1250 A |
| Rated Operational Voltage | Auxiliary Circuit 600 V, Main Circuit 1000 V |
| Rated Operational Current (I<sub>e</sub>) | 1250 A |
| Rated Operational Current AC-3 (I<sub>e</sub>) | 1250 |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Auxiliary Circuit 6 kV, Main Circuit 8 kV |
| Rated Insulation Voltage (U<sub>i</sub>) | AC 1000 V, Input Circuit / Output Circuit 690 V |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Auxiliary Circuit NC 6 A, Auxiliary Circuit NO 6 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (120 V) NC 3, (120 V) NO 3 A, (240 V) NC 3 A, (400 V) NC 1.1, (400 V) NO 1.1 A, (500 V) NC 0.75, (500 V) NO 0.75 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (125 V) NC 0.55 A, (125 V) NO 0.55, (24 V) NC 1.5, (24 V) NO 1.5, (250 V) NC 0.27, (250 V) NO 0.27, (60 V) NC 0.55, (60 V) NO 0.55 |
| Degree of Protection | Auxiliary Circuit Terminals IP20, Main Circuit Terminals IP00 |
| Pollution Degree | 3 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm², Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Connecting Capacity Main Circuit | Busbar 80x10 mm² |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | 9 mm |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Power Loss | at Rated Operating Conditions per Pole 0.005 W |
| Suitable For | AF1350, AF1650, AF2050 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Contact Rating UL/CSA | (NC:) B600, (NC:) Q300, (NO:) B600, (NO:) Q300 |
| Connecting Capacity Main Circuit UL/CSA | Busbar 3.15x0.39 in |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-10 AWG, Stranded 1/2x 18-10 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 ... 11 in·lb |
Environmental
| Ambient Air Temperature | Operation -25 ... +70 °C, Operation Compensated -25 ... 70 °C, Storage -50 ... +80 °C |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 15g |
| Resistance to Vibrations | 3g 3 ... 150 Hz |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 9 | EC001080 - Electronic overload relay |
| ETIM 10 | EC001080 - Electronic overload relay |
| UNSPSC | 39121500 |
