ABB 1SDA055172R1

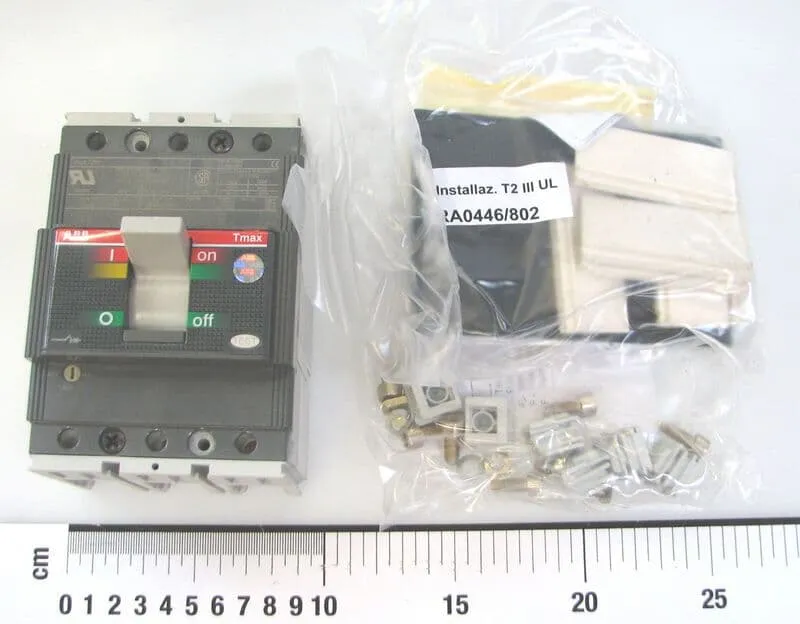

T2H 100 UL/CSA MCP 100-1200 3P

MPN: 1SDA055172R1
Category: IRC5 Single

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 1SDA055172R1?

C.BREAKER TMAX T2H 100 MCP UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE Iu 100 A I3=600...1200 A

Specifications

Ordering

EAN	8015644563356
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090

Dimensions

Product Net Weight	1.160 kg kg
Gross Weight	1.160 kg kg

Container Information

Package Level 1 EAN

8015644563356

Additional Information

Product Main Type	SACE Tmax T
Product Name	Moulded Case Circuit Breaker
Product Type	CB
Version	F

Technical

Electrical Durability	8000 cycle
Mechanical Durability	25000 cycle
Number of Poles	3P
Order Multiple	1.000 piece
Power Loss	at Rated Operating Conditions per Pole 7,7 W W
Rated Current (In)	100 A A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	800 V V
Rated Operational Voltage	500 V DC V
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	(500 V DC) 3 Poles in Series 70 kA V
Rated Uninterrupted Current (Iu)	100 A A
Release	MA
Release Type	M M
Short-Circuit Performance Level	H
Standards	UL 489, CSA C22.2
Sub-type	T2
Terminal Connection Type	Fixed Circuit-Breakers, Front
Test Voltage Max (Utest)	3000 V V

Certificates and Declarations

Data Sheet, Technical Information	1SDC210023D0201
Declaration of Conformity - CE	1SDL000165R0002
Instructions and Manuals	1SDC210023D0201

External Classifications and Standards

Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
