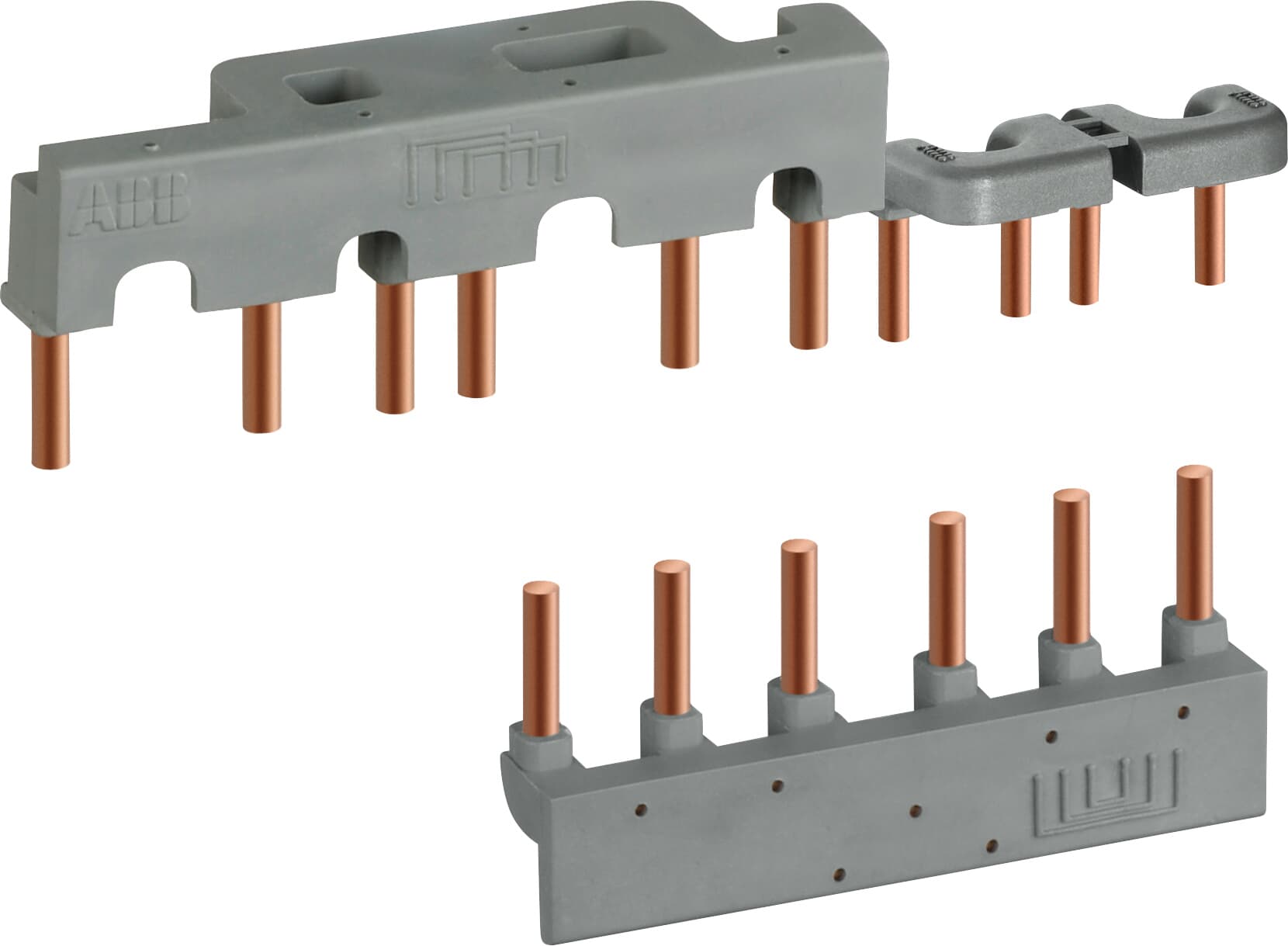

ABB 1SBN082713R2000 – BEY38-4 Connection Set for Star-Delta Starter
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.11 kg |
| Country of origin | India |
| UPC / EAN | 3471523130814 |
Shipping & availability
When can 1SBN082713R2000 be shipped?
1SBN082713R2000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN082713R2000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN082713R2000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN082713R2000, subject to availability and destination.
BEY38-4 is a connection set used to easily connect the main poles of the Line, Delta and Star contactors of a star-delta starter for AF26 ... AF38, AFC26 ... AFC38 or AFS26 ... AFS38 contactor ranges.
The BEY connection set is made up of:
• Line contactor / delta contactor: upstream phase-to-phase connection
• Delta contactor / star contactor: downstream connection in parallel
• Star contactor: star point upstream
• Insulated, solid copper bar.
Specifications
General
| Order code (ABB product ID) | 1SBN082713R2000 |
| Type | BEY38-4 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 87.2 mm |
| Product Net Depth / Length | 23.05 mm |
| Product Net Height | 36.5 mm |
| Product Net Weight | 0.11 kg |
Technical
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFC26, AFC30, AFC38, AFS26, AFS26Z, AFS30, AFS30Z, AFS38, AFS38Z |
| Product Name | Connection Set |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706561 |
| E-Number (Sweden) | 3211444 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101031M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

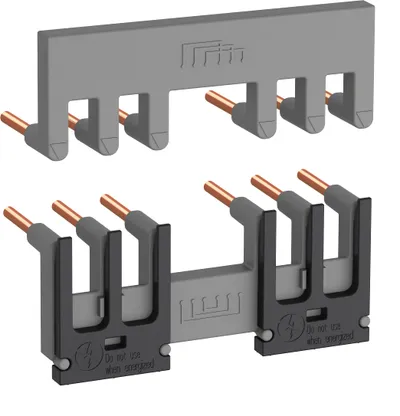

Available on requestBER38-4KF Connection Set for Reversing Contactors

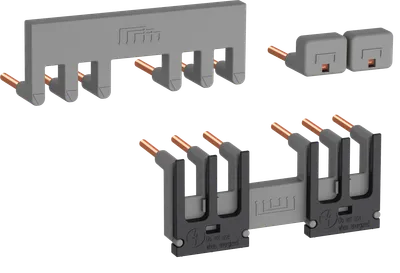

Available on requestBEY38-4KF Connection Set for Star-Delta Starter

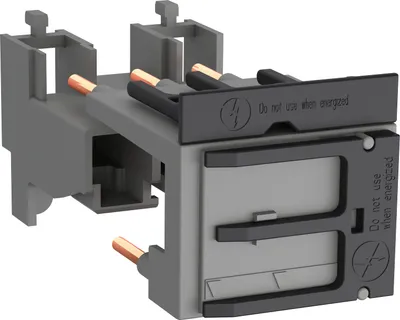

Available on requestBEA38-4KF Connecting Link with Manual Motor Starter

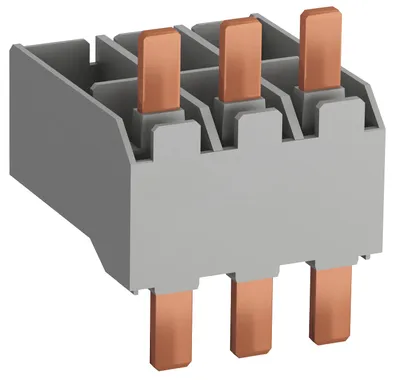

Available on requestBEA65-4 Connecting Link with Manual Motor Starter

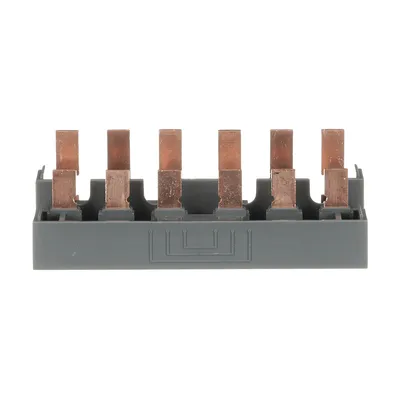

Available on requestBER65-4 Connection Set for Reversing Contactors

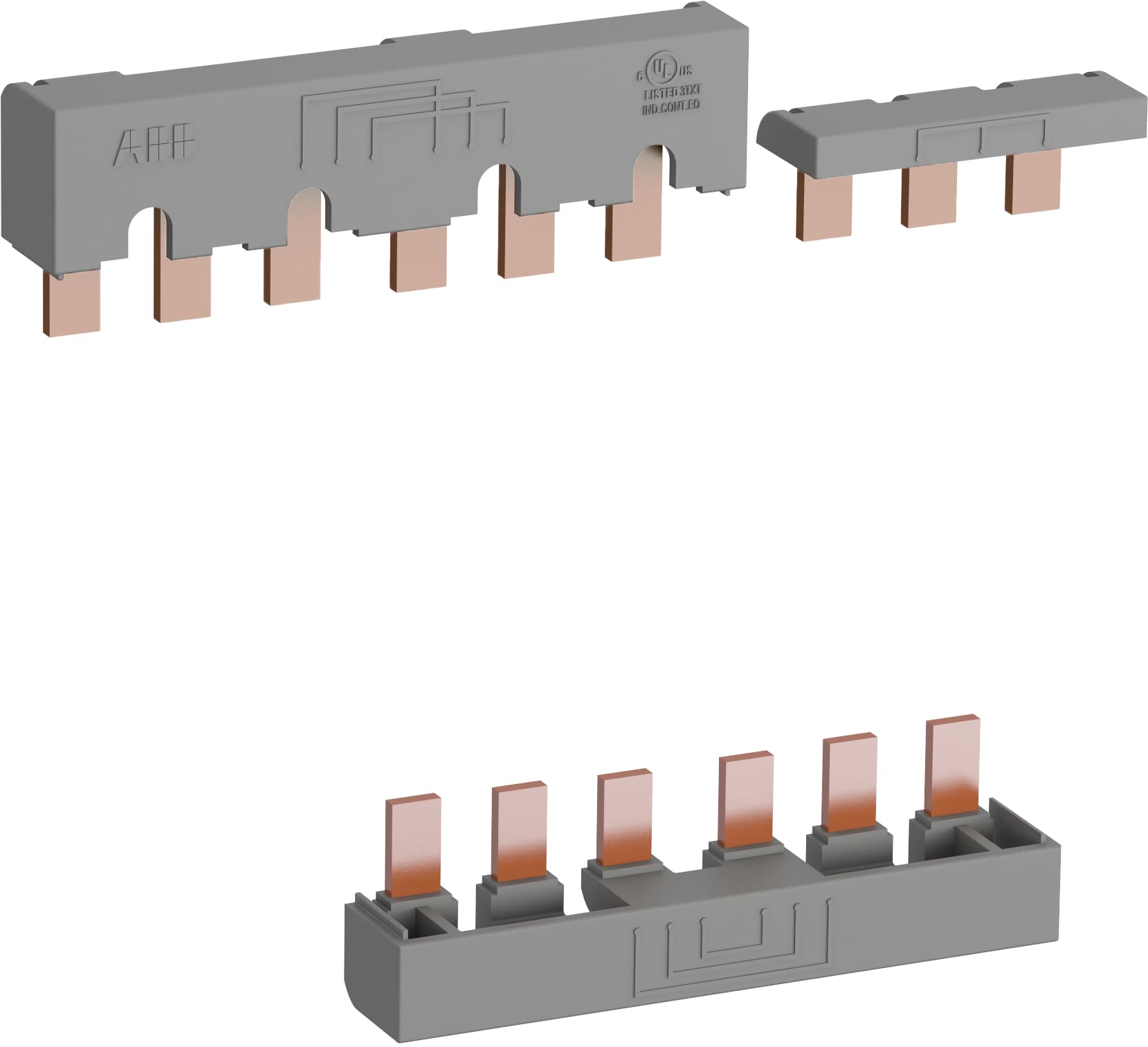

Available on requestBEY65-4 Connection Set for Star-Delta Starter

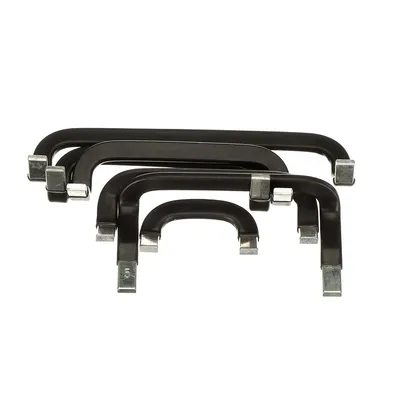

Available on requestBEM75-30 Connection Set
