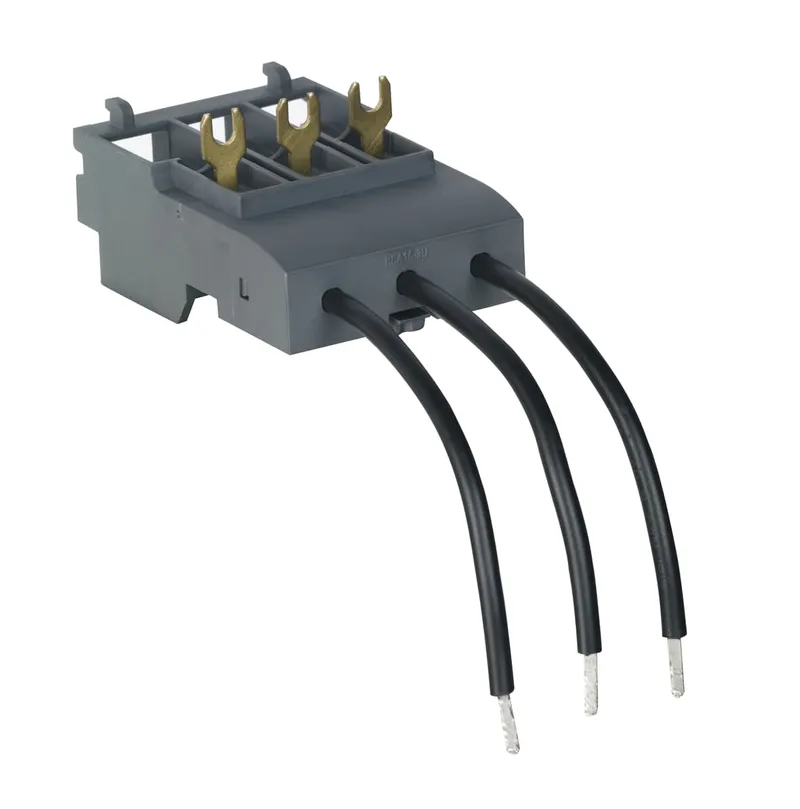

ABB 1SBN081020R1000 – BEA16-3U Connecting Link with Manual Motor Starter

MPN: 1SBN081020R1000 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.045 kg
UPC / EAN	3471523095168

Shipping & availability

When can 1SBN081020R1000 be shipped?

1SBN081020R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN081020R1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN081020R1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN081020R1000, subject to availability and destination.

BEA16-3U Connecting Link with Manual Motor Starter

Specifications

General

Order code (ABB product ID)	1SBN081020R1000
Type	BEA16-3U
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	45 mm
Product Net Depth / Length	25.8 mm
Product Net Height	69.6 mm
Product Net Weight	0.045 kg

Technical

Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 60 °C 15.5 A, (440 V) 60 °C 13.6 A, (500 V) 60 °C 12.5 A, (690 V) 60 °C 9 A, (380 / 400 V) 60 °C 15.5 A, (220 / 230 / 240 V) 60 °C 15.7 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Power Loss	at Rated Operating Conditions AC-1 per Pole 1.2 W
Suitable For	AS09, AS12, AS16, ASL09, ASL12, ASL16, VAS09, VAS12, VAS16, VASL09, VASL12, VASL16, MO132, MS116, MS132
Product Name	Connecting Link

Technical UL/CSA

Full Load Amps Motor Use

(200 ... 208 V AC) Three Phase 11 A, (220 ... 240 V AC) Three Phase 15.2 A, (440 ... 480 V AC) Three Phase 14 A, (550 ... 600 V AC) Three Phase 11 A

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 7	EC002498 - Accessories for low-voltage switch technology
ETIM 8	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
eClass	V11.0 : 27371392
UNSPSC	39120000
IDEA Granular Category Code (IGCC)	5219 >> Switch part or accessory

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SBC101033M9701)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (5)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Declaration of Conformity - CE (1SBD250058U1000)
Declaration of Conformity - UKCA (1SBD250059U1000)
UL Certificate (20081024-E312527)
