ABB 1SBN050410R1001 – RV4-1/130 Surge Suppressor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.015 kg |
| UPC / EAN | 3471523013735 |
Shipping & availability
When can 1SBN050410R1001 be shipped?
1SBN050410R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN050410R1001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN050410R1001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN050410R1001, subject to availability and destination.
RV4-1/130 is a varistor type surge suppressor designed to reduce the maximum overvoltage peak value and to limit the high pre-damping voltage frequencies that occurs on the control circuit when operating a contactor. The opening of a contactor coil can causes high voltage surges of several kV that can cause interferences and damages to sensitives electronic in the installation. The RV4-1/130 can operate une control voltage within 50 ... 130 V AC 50/60 Hz. The RV4 surge suppressor is mounted directly on the AFC contactor, either on top or bottom, and is including the coil connection terminals. RV4 are designed specifically for AFC contactors or NFC relays.
Specifications
General
| Order code (ABB product ID) | 1SBN050410R1001 |
| Type | RV4-1/130 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85363030 |
Dimensions
| Product Net Width | 36 mm |
| Product Net Depth / Length | 44 mm |
| Product Net Height | 32 mm |
| Product Net Weight | 0.015 kg |
Technical
| Rated Frequency (f) | Control Circuit 50 / 60 Hz |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz / 60 Hz 50 ... 130 V AC |
| Connecting Capacity Control Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Control Circuit 10 mm |
| Tightening Torque | Control Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFC40, AFC52, AFC65, AFC80, AFC96, NFC22E, NFC31E, NFC40E, NFC44E, NFC53E, NFC62E, NFC71E, NFC80E, NFC33/11, NFC51/11 |
| Suitable for Product Class | Block Contactors |
| Product Name | Surge Suppressor |
Technical UL/CSA
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA | Control Circuit 11 in·lb |
Environmental
| Ambient Air Temperature | Operation -20 ... +70 °C, Storage -40 ... +80 °C |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121610 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts

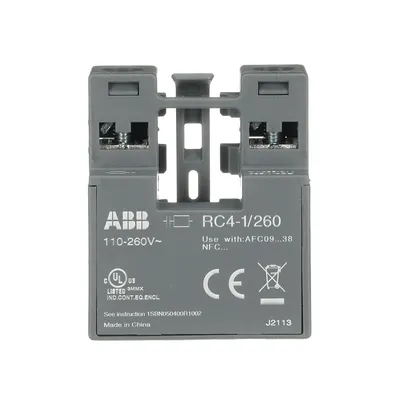

Available on requestRC4-1/130 Surge Suppressor
