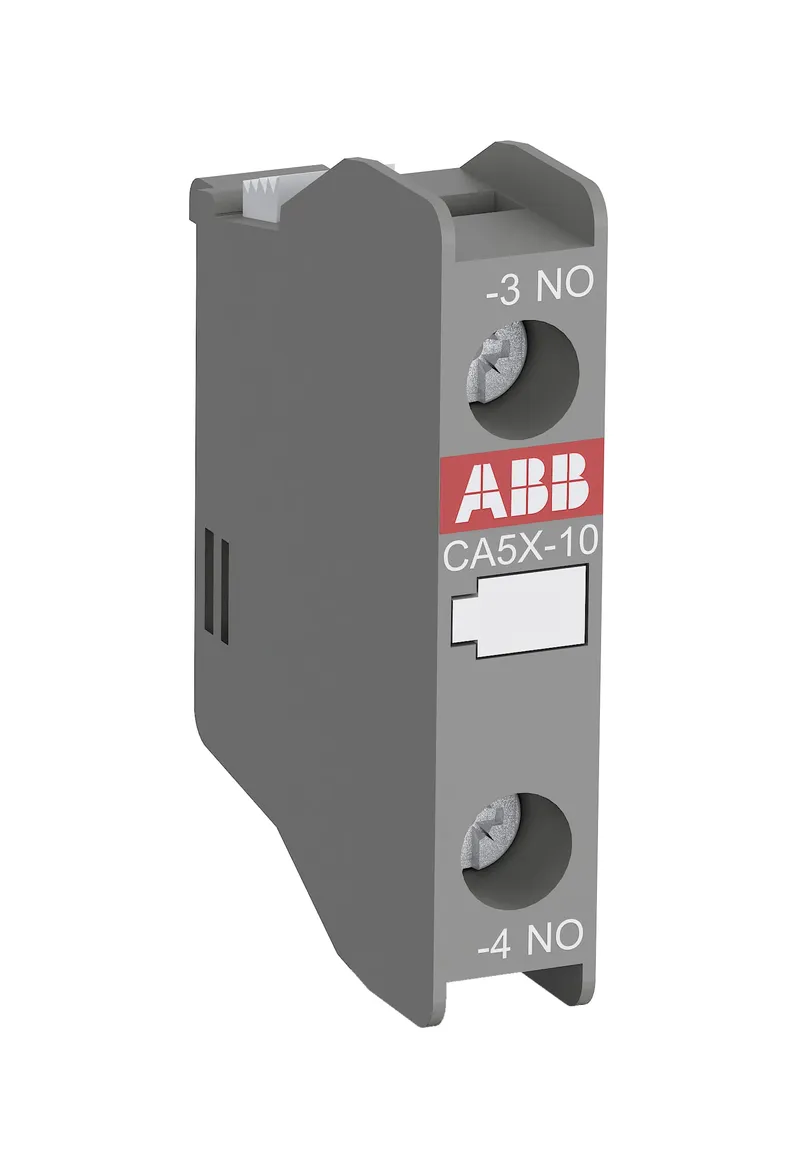

ABB 1SBN019010R1010

CA5X-10 Auxiliary contact block

MPN
1SBN019010R1010
EAN
6975486357488
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SBN019010R1010?

CA5X-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AX06…150 contactors and NX contactor relays. CA5X-10 is available with 1 N.O. instantaneous contacts for standard industrial environments.

Specifications

General

Order code (ABB product ID)1SBN019010R1010
TypeCA5X-10
LifecycleActive (current ABB product)
Country of originIndia

Ordering

Minimum Order Quantity10 piece
Customs Tariff Number85030099

Dimensions

Product Net Width10 mm
Product Net Depth / Length47 mm
Product Net Height36 mm
Product Net Weight0.014 kg

Technical

Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC0
Rated Operational VoltageAuxiliary Circuit 690 V, Main Circuit 690 V
Conventional Free-air Thermal Current (I<sub>th</sub>)acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (I<sub>e</sub>)(690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)(24 V) 6 A / 144 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.30 A / 75 W, (400 V) 2.8 A / 134 W, (500 V) 1 A / 72 W
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)for 0.1 s 140 A, for 1 s 100 A
Rated Insulation Voltage (U<sub>i</sub>)acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
Maximum Electrical Switching Frequency(AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency3600 cycles per hour
Power Lossat 6 A per Pole 0.1 W
Terminal TypeScrew Terminals
Suitable ForAX06, AX09, AX12, AX18, AX25, AX32, AX40, AX50, AX65, AX80, AX95, AX115, AX150, NX
Product NameAuxiliary Contact Block

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39121522
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
E-Number (Finland)3708079
