ABB 1SBN010040R1204 – CA5-04N Auxiliary Contact Block
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.06 kg |
| Country of origin | Czechia |
| UPC / EAN | 3471522121196 |
Shipping & availability
When can 1SBN010040R1204 be shipped?
1SBN010040R1204 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN010040R1204 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN010040R1204 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN010040R1204, subject to availability and destination.
CA5-04N is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA5-..N version offers terminal assortment matching the marking of 4-pole N serie contactor relays. CA5-04N is available with 0 N.O. and 4 N.C. instantaneous contacts for standard industrial environments.
Specifications
General
| Order code (ABB product ID) | 1SBN010040R1204 |
| Type | CA5-04N |
| Lifecycle | Active (current ABB product) |
| Country of origin | Czechia |
Ordering
| Minimum Order Quantity | 2 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 43 mm |
| Product Net Depth / Length | 39 mm |
| Product Net Height | 47 mm |
| Product Net Weight | 0.06 kg |
Technical
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 4 |
| Number of Poles | 4P |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.3 / 75 W |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 140 A, for 1 s 100 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Mechanical Durability | 10 million |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Minimum Switching Capacity | N 17 / 5 VLT4K |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | N22E, N31E, N40E, NL22E, NL31E, NL40E, TNL22E, TNL31E, TNL40E |
| Product Name | Auxiliary Contact Block |
| Remarks | 100 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101012M5501) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
Certificates (8)
More ABB parts
Available on requestCA5-13M Auxiliary Contact Block
Available on requestCA5-11/11M Auxiliary Contact Block

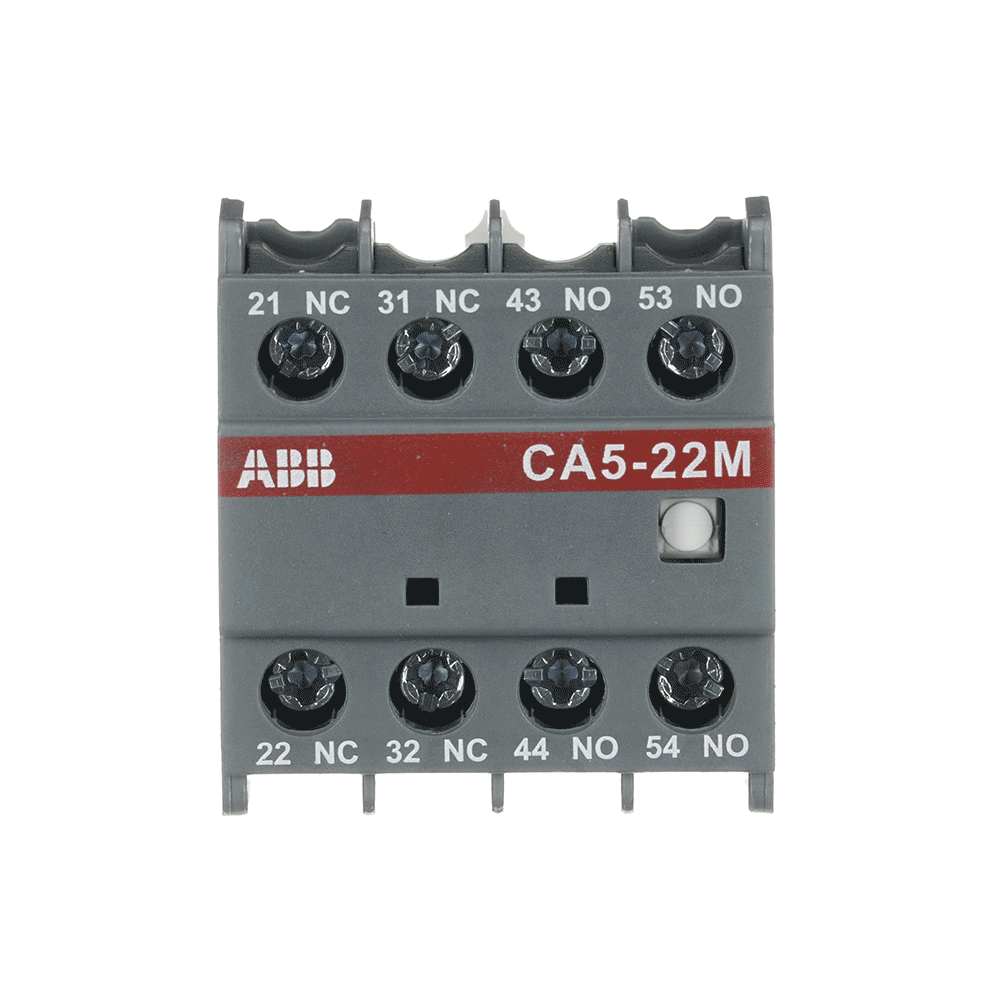

Available on requestCA5-22M Auxiliary Contact BlockAvailable on requestCA5-31M Auxiliary Contact Block
