ABB 1SBN010020R1011 – CAL5-11 Auxiliary Contact Block

MPN: 1SBN010020R1011 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.05 kg
Country of origin	Czechia
UPC / EAN	3471522121073

Shipping & availability

When can 1SBN010020R1011 be shipped?

1SBN010020R1011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN010020R1011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN010020R1011 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN010020R1011, subject to availability and destination.

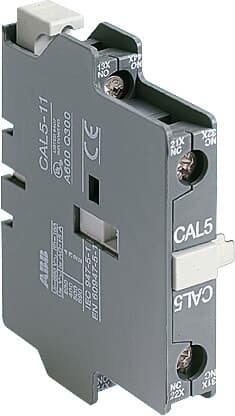

CAL4-11 is a 2-pole side mounted auxiliary contact block equipped with screw terminals and can be fitted on A9 ... 75 contactors and N contactor relays. CAL5 auxiliary contact block can be clipped onto the right- and/or left-hand side of the contactors or the contactor relays and bears the corresponding function marking. CAL5-11 is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments.

Specifications

General

Order code (ABB product ID)	1SBN010020R1011
Type	CAL5-11
Lifecycle	Active (current ABB product)
Country of origin	Czechia

Ordering

Minimum Order Quantity	2 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	12 mm
Product Net Depth / Length	62 mm
Product Net Height	74 mm
Product Net Weight	0.05 kg

Technical

Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	2P
Rated Operational Voltage	Auxiliary Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.30 A / 66 W, (250 V) 0.3 / 75 W
Short-Circuit Protective Devices	Auxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	for 0.1 s 140 A, for 1 s 100 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency	1200 cycles per hour
Mechanical Durability	10 million, 3 million, 2 million
Maximum Mechanical Switching Frequency	3600 cycles per hour
Minimum Switching Capacity	A9 ... A75 17 / 5 VLT4K, A95 ... AF750 24 / 50 VLT4K
Power Loss	at Rated Operating Conditions per Pole 0.1 W
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type	Screw Terminals
Suitable For	AF45, AF50, AF63, AF75, A9, A12, A16, A26, A30, A40, A45, A50, A63, A75, A95, A110, AL9, AL12, AL16, AL26, AL30, AL40, AE45, AE50, AE63, AE75, TAL9, TAL12, TAL16, TAL26, TAL30, TAL40, TAE45, TAE50, TAE75, GA75, GAE75, UA16, UA26, UA30, UA50, UA63, UA75, UA16RA, UA26RA, UA30RA, UA50RA, UA63RA, UA75RA, UAF75RA, N22E, N31E, N40E, N44E, N53E, N62E, N71E, N80E, N33/11, N51/11, NL22E, NL31E, NL40E
Product Name	Auxiliary Contact Block
Remarks	100

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121522
IDEA Granular Category Code (IGCC)	4743 >> Auxiliary contact block
E-Number (Finland)	3709188
